Author: Site Editor Publish Time: 2026-09-27 Origin: Site
This guide is intended for AV integrators, signage companies, contractors, distributors, and commercial buyers planning a permanent LED display installation.
A fixed LED display is meant to stay put. It goes into a wall, a facade, a ceiling structure, and runs there for years — a different design problem than a rental screen that gets packed into a flight case every other week. The cabinet, the mounting, the maintenance access all get built around that one site: the viewing distance, the weather, how much space there is behind the wall, how long the thing needs to keep running without anyone touching it.
This guide walks through how to choose, install, maintain and budget for a fixed LED display, with links out to specific projects and deeper guides where it's worth going further than a general overview can.
It's not going anywhere. Compare it to rental equipment and the differences fall into place naturally — a fixed display is engineered around the site rather than built to be modular, it's installed once instead of set up and torn down repeatedly, and the whole maintenance plan assumes years of access rather than a quick turnaround before the next show.
Fixed LED Display | Rental LED Display | |
|---|---|---|
Installation | Permanent | Temporary, repeated |
Structure | Designed around the site | Modular, standardized |
Maintenance | Designed for long-term access | Designed for fast setup and teardown |
Typical use | Buildings, stadiums, retail, public spaces | Events, concerts, touring |
Main consideration | Long-term operation | Mobility and quick deployment |
If you're weighing the two for a specific project — a stadium install versus a touring production, say — our Fixed vs. Rental LED Display comparison goes into when each one actually pays off.

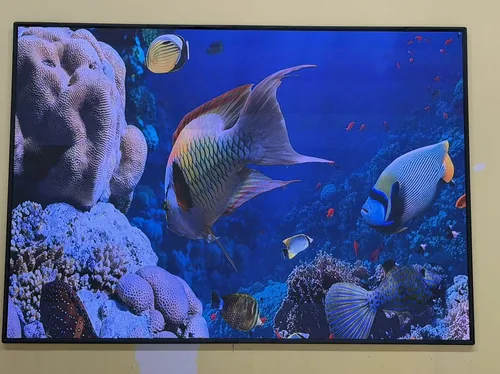

Indoors, it's mostly conference rooms, control rooms, retail interiors, schools — anywhere the lighting is controlled and the viewing distance is short. Our indoor buying guide and LED vs LCD comparison cover how we walk clients through those decisions.
Outdoors is a longer list — stadiums, building facades, retail storefronts, gas stations, public squares, canopy and overhead mounts. Each brings its own structural and weather problems, covered in the applications section further down.
Factor | Indoor Fixed LED | Outdoor Fixed LED |
|---|---|---|
Brightness | Lower | Higher |
Weather protection | Usually not required | IP-rated protection required |
Pixel pitch | Often finer | Usually larger |
Viewing distance | Shorter | Longer |
Environment | Controlled | Sun, rain, dust, temperature swings |
Typical applications | Boardroom, school, commercial interior | Stadium, facade, storefront |
For indoor projects, pixel pitch and viewing distance need a closer look — our buying guide goes into that.
Pixel pitch should follow viewing distance, screen size, content, and budget — not just "get the finest one you can afford." Standing close to a screen means you need a fine pitch to avoid seeing individual pixels; standing further back, a coarser pitch loses nothing in perceived quality and costs less.
A few real numbers from projects we've done make this concrete: a P2 screen in a high-altitude assembly hall where presentation slides needed to stay sharp from seated rows back, a P2.5 screen in a school cafeteria where students stand right up close, a P4 display on a gas station canopy that has to work for someone at the pump and someone driving past, a P5 display built into a building facade, and a P6.67 display on a retail storefront meant to read from across the street. Same logic each time — pitch follows distance, not the other way around.
Outdoor displays deal with something indoor displays never have to: direct sunlight. That usually pushes brightness up into the thousands of nits rather than the hundreds, and automatic dimming matters just as much — a screen bright enough to fight noon sun will blind people at night if it doesn't scale down on its own.
The brightness requirement also changes with the application. A stadium display has to hold up under both midday sun and stadium floodlights at night. A retail storefront needs to stay legible at street level. A gas station display needs to be readable to someone approaching at highway speed.
Mounting a fixed display comes in a few forms — wall-mounted, built into a facade, suspended from a canopy, or standing on its own structure. Facade and canopy installs are the trickiest, because you're almost always retrofitting onto structure that was never designed to carry a screen in the first place. We've written up the engineering side of both: facade installation and overhead and canopy structural safety.
On a facade project, screen weight is only part of the structural question. The existing wall, the mounting points, and access for installation often matter just as much. Die-cast magnesium or aluminum cuts the cabinet load significantly compared to steel — on a facade, that's often the difference between the existing wall carrying the screen and needing extra reinforcement.
For anything overhead — a canopy, a suspended structure — wind isn't just background pressure, it's a repeated load every time something moves underneath at speed. We've gone through the structural load math for that specifically, because it's genuinely different from a static wind rating.
Installation depth ties back to maintenance access — front-service designs need far less space behind the screen, which matters most where there's simply no room for a rear corridor.
Fixed displays can be serviced from the front, the back, or both. Front access makes sense where there's no room behind the screen — facades, flush wall mounts, tight installations. Rear access still holds up fine where there's dedicated space back there, like a freestanding outdoor structure or a rooftop billboard with a proper service walkway.
See Front Service vs. Rear Service for the full comparison. For what front maintenance actually saves on a facade project specifically, see our breakdown of installation and lifetime operating costs.
There isn't a single number that means anything across projects. What matters more than a ballpark figure is knowing what a proper quote should include:
Screen hardware (cabinets, modules, LED package)
Control system (sending/receiving cards, processor)
Mounting structure and hardware
Power distribution
Installation and commissioning labor
Shipping and logistics
Maintenance access design
Local labor and any site-specific structural work
A quote that only covers the cabinets themselves is missing most of what actually determines project cost. Facade and canopy projects add another layer — maintenance access and installation depth affect the total too, which our front maintenance cost breakdown covers. For indoor projects, our buying guide has realistic 2026 price ranges broken down by pixel pitch.
(If you're comparing quotes for rental LED equipment instead of a fixed installation, our guide to comparing rental LED display quotes goes into that scope — shipping terms, spare parts, warranty coverage.)
Day-to-day, that means front or rear module access, checking power supplies and receiving cards, routine cleaning, and — for anything outdoor — weather protection that's still doing its job after a few years, not just at installation.
Front Service vs. Rear Service covers the general comparison; how front maintenance affects lifetime cost goes deeper on the facade side.
Stadiums and large venues — permanent scoreboards, perimeter displays, video walls built for years of operation. Full writeup.
Retail storefronts — signage built into or replacing a store's own facade. See the Italy billboard case and the double-sided cafe storefront case.Planning a sign for your own shop or building? Our guide to outdoor LED signs for business walks through mounting, pixel pitch and brightness.
Building facades — displays that read as part of the building rather than something bolted onto it. Case study.
Gas stations — roadside totems and canopy displays for pricing and promotion. Case study.
Canopy and overhead installations — as much a structural problem as a display one. Engineering breakdown.
Smart city and public information — municipal displays built for constant uptime and public visibility. Case study.
Indoor commercial spaces — boardrooms, control rooms, school cafeterias. Buying guide, LED vs LCD comparison, school cafeteria case study, high-altitude assembly hall case study.
Banquet halls and clubhouses: one permanent stage screen shared by weddings, company dinners and karaoke. See the P2.5 banquet hall LED screen we installed in a Fujian clubhouse.
For larger permanent video walls, LED can offer advantages in bezel-free viewing, scalability and long-term flexibility, depending on project requirements. The right choice usually comes down to screen size, viewing distance, expected operating hours, maintenance access, and wall or structural conditions — not a blanket rule that one technology always wins.
See Indoor Fixed LED Display vs LCD Video Wall for the full comparison.
Beyond the quoted price, it's worth asking a supplier a few pointed questions: how consistent is their LED batch control, what cabinet engineering and aging testing do they actually run, how available are spare parts, what installation support comes with the project, what does the warranty actually cover, and can they show real project experience in the specific application you're planning — stadium, facade, retail, indoor, whatever it is.
A common mistake buyers make is comparing suppliers purely on cabinet price and skipping these questions entirely — which is usually where problems show up later, not at delivery. We go through the same questions with clients on every project, from pixel pitch selection through CAD layout and installation guidance.
Before requesting a quote: screen dimensions, viewing distance, indoor or outdoor, installation location, maintenance access, brightness requirement, pixel pitch, content type, and operating hours.
Before production starts: cabinet dimensions, mounting structure, power requirements, control system, waterproofing rating, service access.
Before installation day: structural confirmation, power and signal readiness, installation access, safety planning, calibration.
What is a fixed LED display?
A permanently installed LED screen built to stay in one location and run for years, as opposed to a rental display built for repeated setup and teardown.
What's the difference between fixed and rental LED displays?
Fixed displays are engineered around one site for long-term use; rental displays are built for mobility and fast deployment across events. See the full comparison.
Is a fixed LED display suitable for outdoor use?
Yes — outdoor fixed displays are built with IP-rated weather protection and considerably higher brightness than indoor units.
How do I choose the right pixel pitch?
Match it to viewing distance and screen size rather than defaulting to the finest pitch available. A coarser pitch is often the more sensible — and cheaper — choice once viewers are standing further back.
What pixel pitch should I choose for a building facade?
It depends on how close the display is viewed — pedestrians up close versus traffic passing at a distance. Our facade case study used P5 for that balance; the right pitch varies by site.
What is front maintenance on an LED display?
A design that lets technicians replace modules and service components from the front, without needing access behind the screen. See Front Service vs. Rear Service for when each makes sense.
Is front-service LED better for a facade installation?
Usually, yes — facades rarely have room for a rear service corridor, so front access tends to be the practical choice. See our front maintenance cost breakdown for the specifics.
What IP rating is recommended for outdoor fixed LED displays?
IP65 on the front is standard for most outdoor projects; rear protection requirements vary depending on the enclosure design and installation environment.
How much does a fixed LED display cost?
Pricing varies by pixel pitch, screen size, brightness, cabinet design, control system, and installation requirements.
What should be included in a fixed LED display project quote?
Beyond the screen hardware, a complete quote should cover the control system, mounting structure, power distribution, installation labor, shipping, and maintenance access design. See section 8 above for the full breakdown. (For rental equipment quotes specifically, see our guide to comparing rental LED display quotes.)
Can fixed LED displays be installed on building facades?
Yes, though the existing structure's load capacity usually dictates using a lightweight cabinet material.
How long can a fixed LED display operate?
Generally five to ten years or more of continuous operation, depending on component quality and how well it's maintained.
Send us your screen size, viewing distance, installation location, and target application. Our team can recommend a suitable pixel pitch, brightness level, and cabinet configuration for your project.
