YL-0004
Yuanlv LED Display
YL-0004

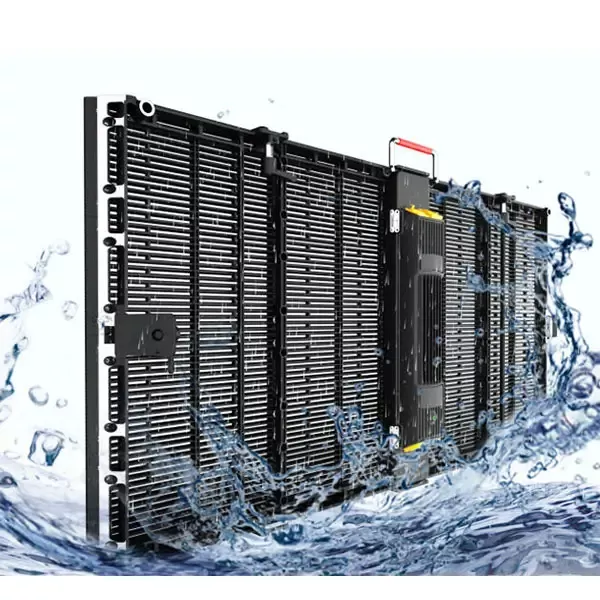

Outdoor transparent LED displays are used on building facades, glass curtain walls, and other large-scale outdoor surfaces where both visibility and light transmission matter. With white-balanced brightness of up to 8,000 nits, depending on the model, the display remains clearly visible in direct sunlight, including on south-facing installations exposed to strong midday light. It uses an LED mesh grille of IP65-sealed DIP LED strips and weighs only 12–18 kg/m².
With a refresh rate of ≥3840Hz, the display avoids visible flicker when filmed on smartphones or broadcast cameras — useful for storefronts, events, and other installations that are frequently photographed or filmed.
See real ROI case studies from luxury retail projects →

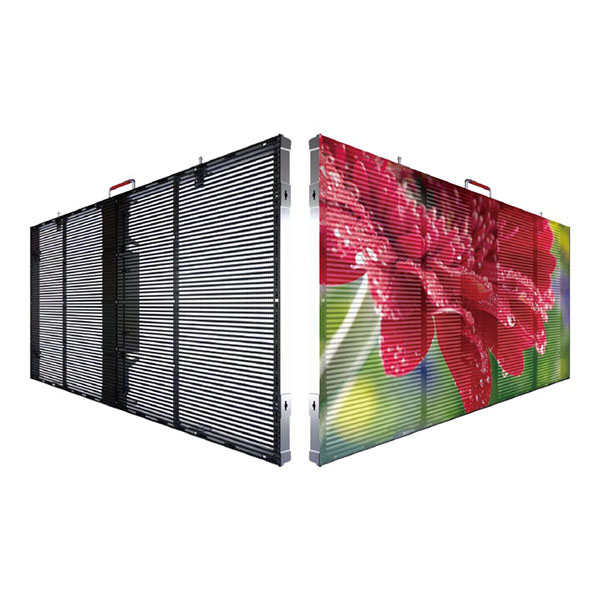

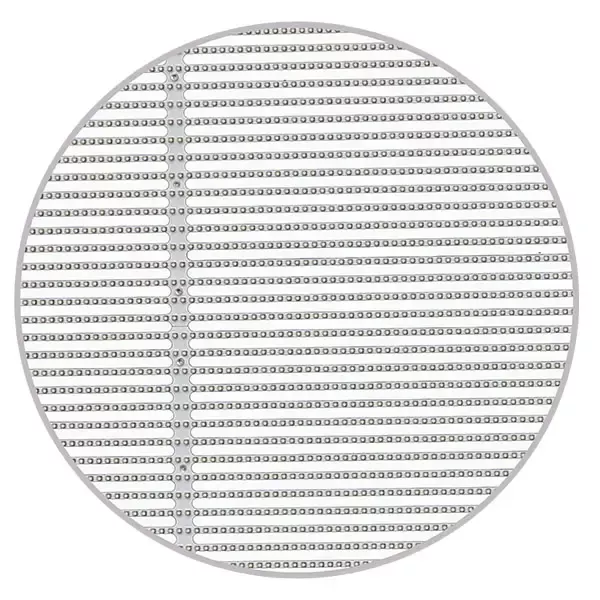

With an open grid structure, the display achieves a physical open-area ratio of 45%–90%, depending on pixel pitch; the wide-pitch PH50 and PH100 models reach 85%–90%. Natural light passes through while the screen remains in place. This makes it possible to use glass surfaces for advertising and digital content without fully blocking the view.

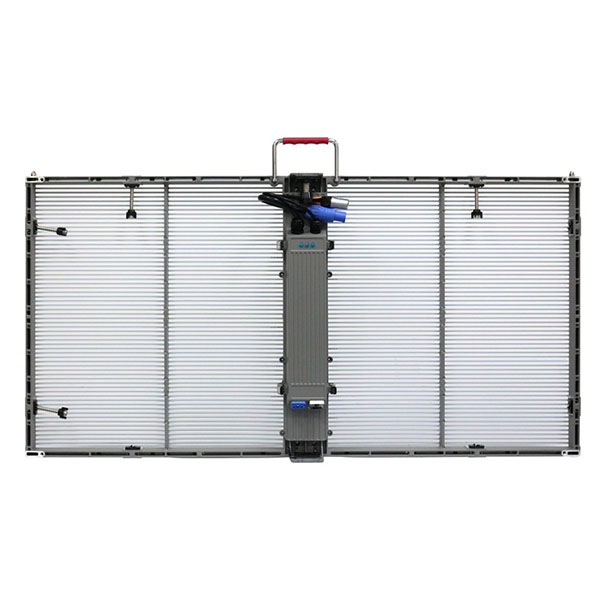

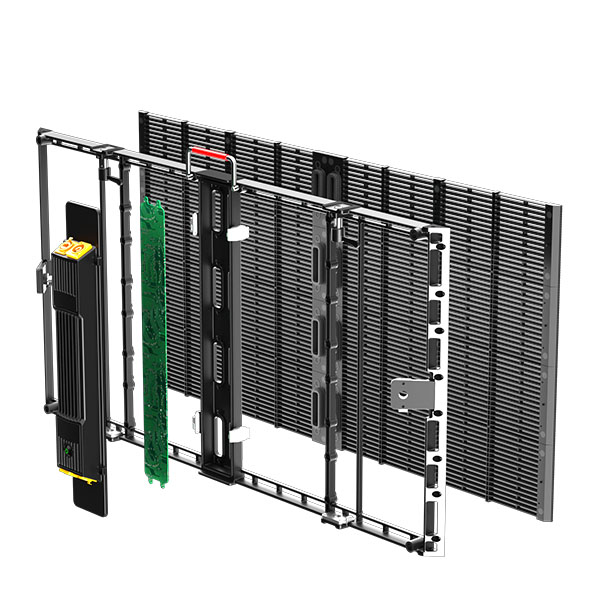

The display is built from modular cabinets, installed onto a supporting frame structure engineered for the installation site. This frame-based approach supports large-scale installations on building facades, glass curtain walls, and other outdoor surfaces, and can be designed to fit different site and structural requirements.

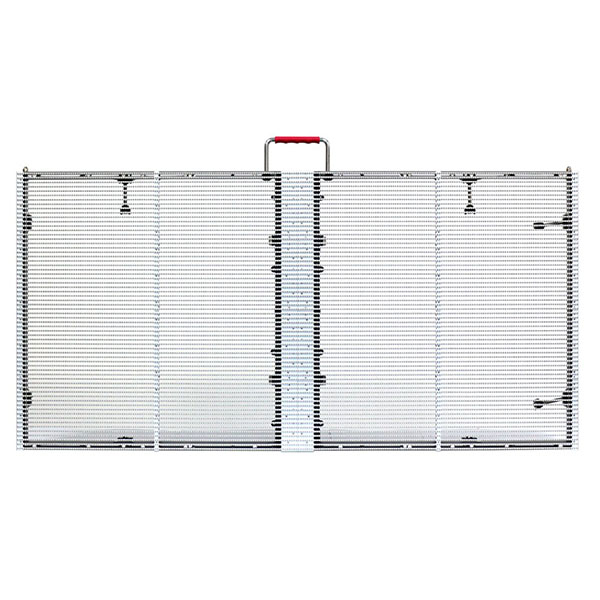

The display uses UV-resistant materials designed to reduce discoloration and material degradation from prolonged outdoor exposure, supporting long-term use in outdoor environments.

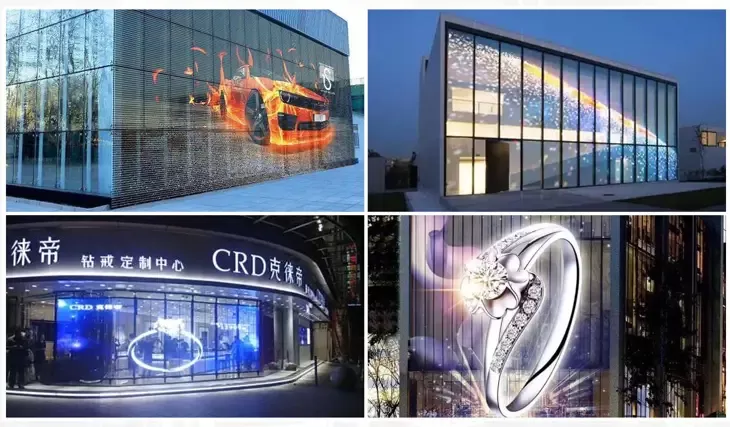

Transparent LED displays are widely used in commercial environments where glass structures are common.
Typical applications include:
These environments benefit from the transparent LED display technology, which combines advertising visibility with architectural aesthetics.
| Parameter | PH3.91 | PH10.4 | PH15 | PH25 | PH31.25 | PH50 | PH100 |
|---|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 3.91–7.82 | 10.4 | 15.625 | 25 | 31.25 | 50 | 100 |
| Pixel density (dots/m²) | 32,768 | 9,216 | 4,096 | 1,600 | 1,024 | 400 | 100 |
| Cabinet size (mm) | 1000 × 1000 | ||||||
| Best viewing distance (m) | 10–150 | 15–150 | 20–150 | 30–150 | 40–150 | 60–200 | 150–300 |
| Transparency | 45% | 50% | 55% | 65% | 75% | 85% | 90% |
| Weight (kg/m²) | 13 | 13 | 18 | 18 | 16 | 15 | 12 |
| Viewing angle | 160° | ||||||
| Screen thickness (mm) | 10 | ||||||
| Avg. power (W/m²) | ≤300 | ≤240 | ≤240 | ≤240 | ≤240 | ≤200 | ≤120 |
| Max. power (W/m²) | ≤800 | ≤800 | ≤800 | ≤800 | ≤800 | ≤600 | ≤400 |
| Refresh rate (Hz) | ≥3840 | ||||||
| White balance brightness (nits) | ≥5000 | ≥6000 | ≥8000 | ≥8000 | ≥5000 | ≥2000 | ≥2000 |
| Operating temperature | −20 to 55 °C | ||||||
| Drive mode | 1/8 scan | 1/4 scan | Static | Static | Static | Static | Static |
| MTBF (h) | ≥6,500 | ||||||
| Lifespan (h) | 100,000 | ||||||
| IP rating | IP65 | ||||||
| LED type | DIP | ||||||
| Maintenance | Front / Rear | ||||||
| Installation method | Ground-mounted / Hanging | ||||||
| Certification | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||||||

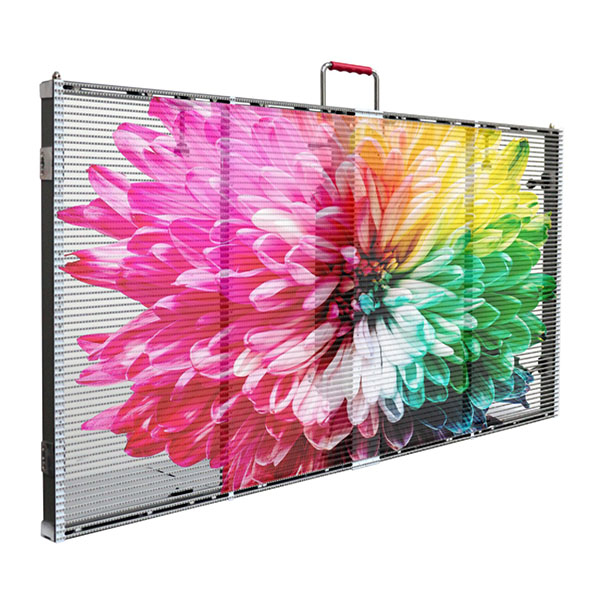

A: Yes. Its open-grid structure allows a large portion of wind to pass through, significantly reducing wind load compared with solid LED displays. For high-rise or coastal installations, the supporting structure should be designed according to local wind-load requirements. We can provide product load specifications and structural drawings for your engineering team.

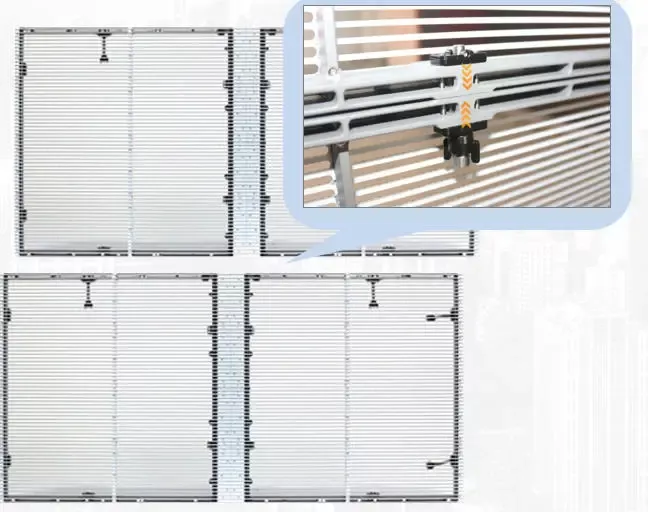

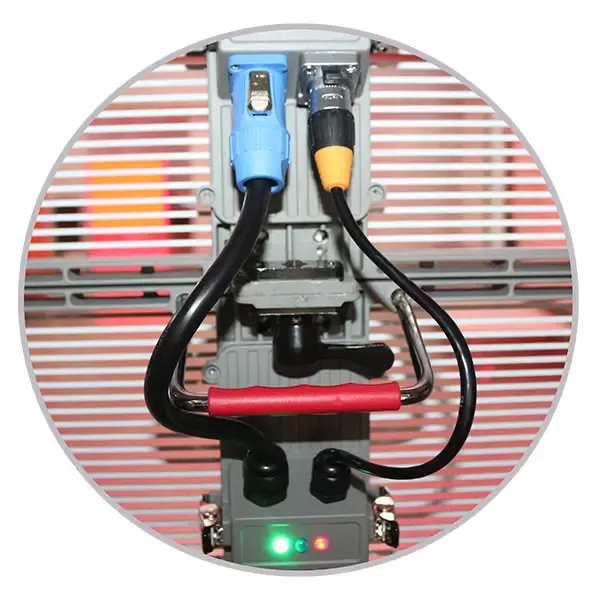

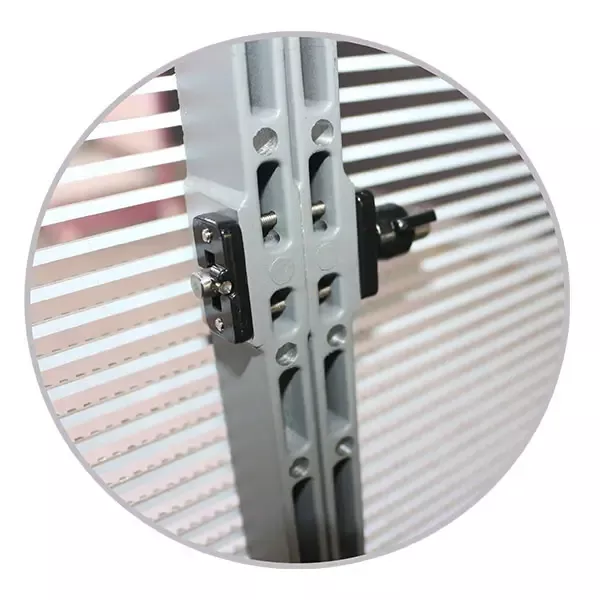

A: Professional installation is recommended, especially for high-altitude mounting, structural fixing, rigging and main power connections. Quick-lock cabinets simplify alignment and installation, while local qualified installers should handle site-specific structural and electrical work. We can provide installation, structural and wiring drawings.

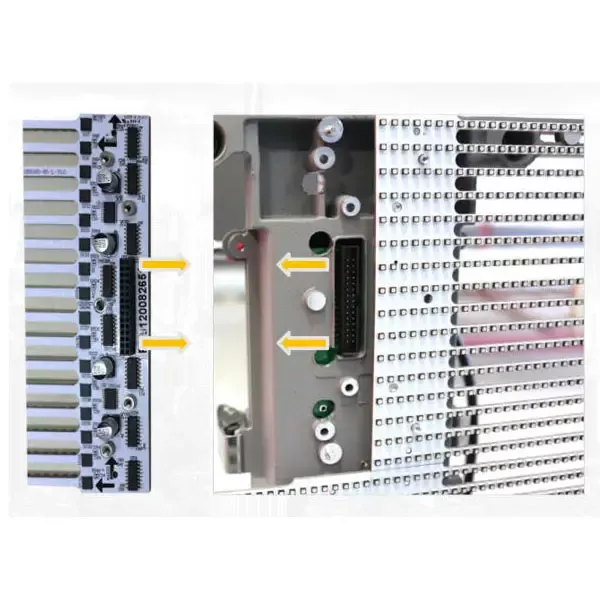

A: The modular design helps reduce maintenance time and labor. Depending on the cabinet configuration, front or rear access allows technicians to replace individual modules without dismantling surrounding cabinets or supporting structures, helping reduce maintenance downtime and on-site labor.
A: We do not have a fixed MOQ for standard configurations. Custom projects are quoted based on the required size, configuration and quantity. Samples and standard project orders typically ship within 7–10 days, depending on specifications and total quantity.
A: White-balanced brightness is 5,000–8,000 nits on the PH3.91 to PH31.25 models, providing good visibility in bright outdoor conditions while keeping the transparent effect. The wide-pitch PH50 and PH100 models (2,000 nits or more) are designed for long-distance viewing. Best viewing distance depends on pixel pitch, from 10 m for PH3.91 up to 300 m for PH100.
