YL-0007
yuanlv
8531200000
HD resolution | Ultra light and ultra-thin | Dual system | Front Maintenance | Creative splicing | Fast installation | Wide Viewing-angle | Silent operation

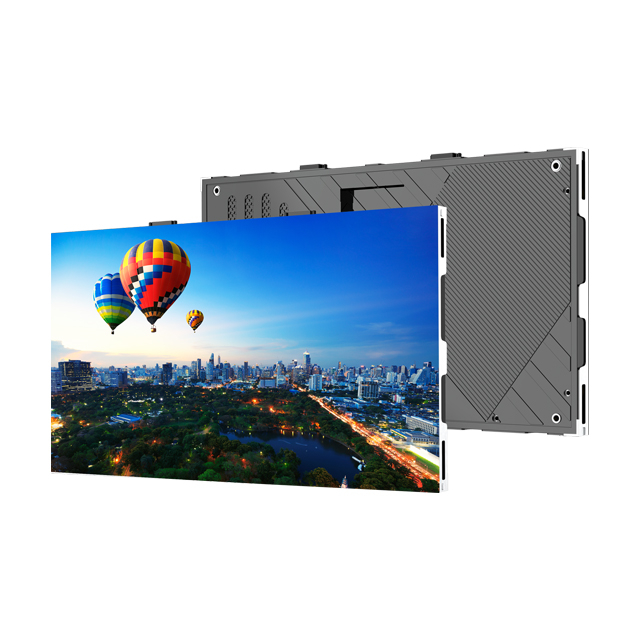

Elevate your visual communication with our Ultra-High-Definition Fine Pitch SMD LED Series. Specifically engineered for critical close-range viewing environments, our displays deliver a seamless, cinema-quality visual experience with zero pixel granularity that outperforms traditional LCD walls. With a standard 16:9 golden ratio cabinet design, these screens are the ultimate solution for replacing aging projector systems and bezel-heavy monitor arrays in corporate, control room and conference room professional settings.
 | HD Visuals Meet Architectural Freedom Tight Bending Radius: Perfect for small-diameter pillars without pixel distortion. Seamless Fine-Pitch Curves: Achieve P1.5/P1.8/P2 curved surfaces with zero gap. Reinforced Soft PCB: Engineered to maintain signal integrity even at extreme angles. |

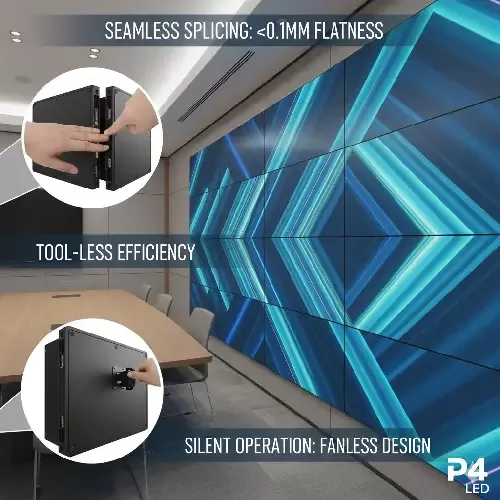

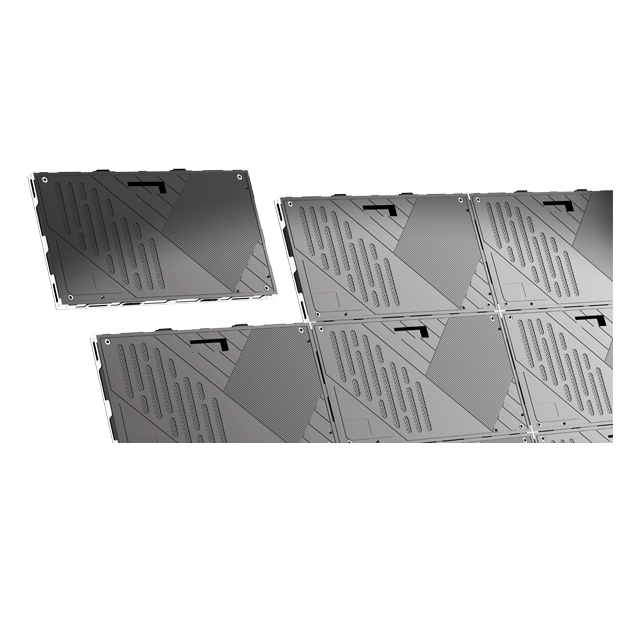

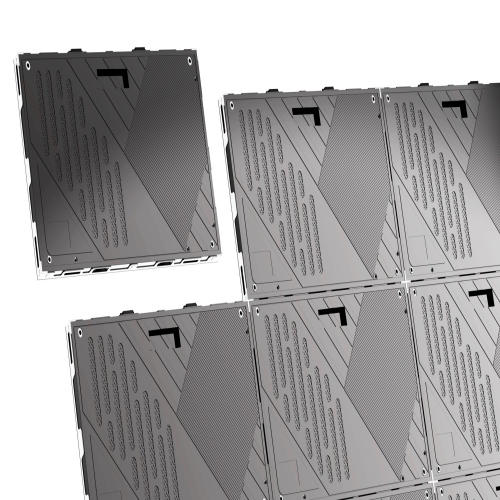

Seamless Splicing: Precision-engineered die-cast aluminum cabinets with CNC high-precision processing to ensure flatness tolerance less then 0.1mm. Tool-less Efficiency: Screwless design for significantly faster, more secure assembly on-site. Silent Operation: Super silent fanless design, ideal for noise-sensitive environments like conference rooms and TV studios. |  |

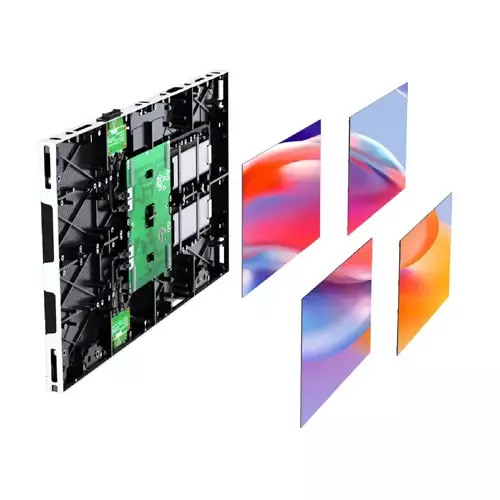

Front maintenance
Can be applied to different installation environments

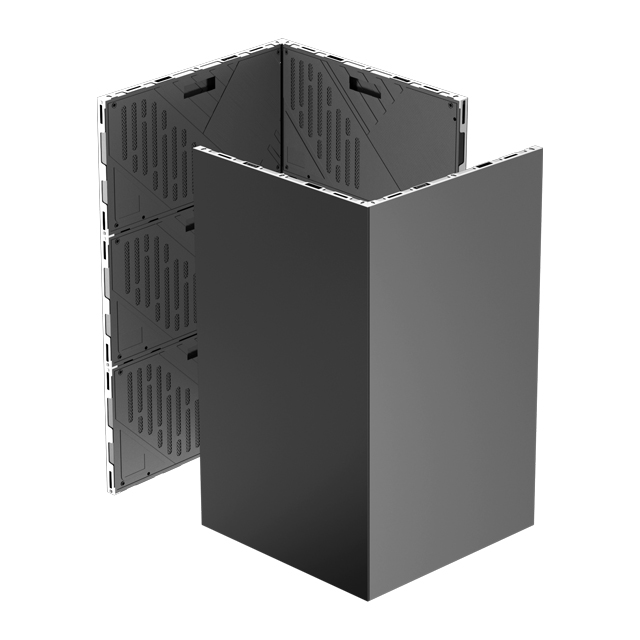

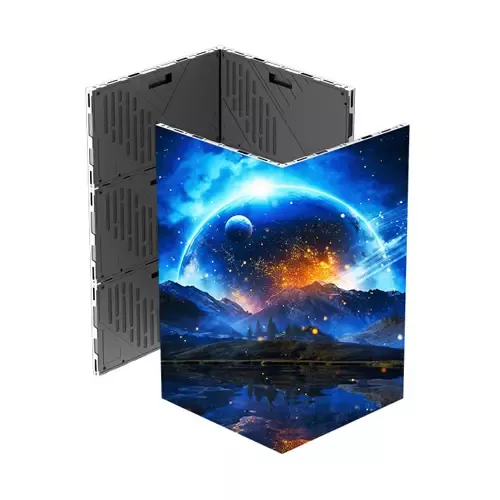

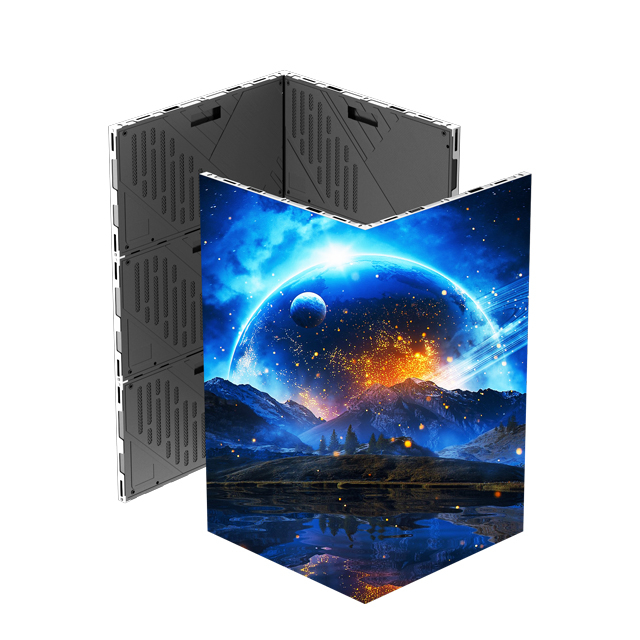

Creative splicing
Supports shapes such as right angles and arcs to meet various creative splicing needs

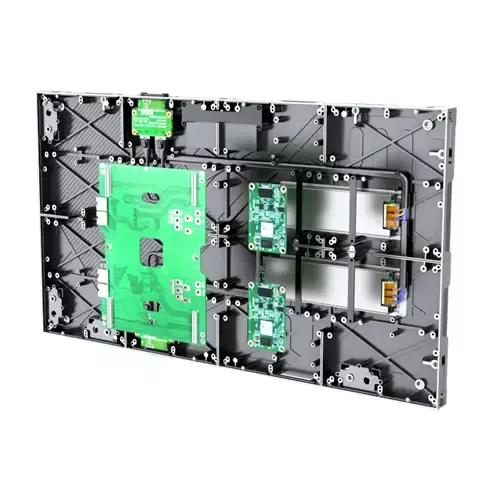

Dual card dual electric
Configurable dual backup version to ensure uninterrupted power supply.
Signal not lost, more stable and reliable.

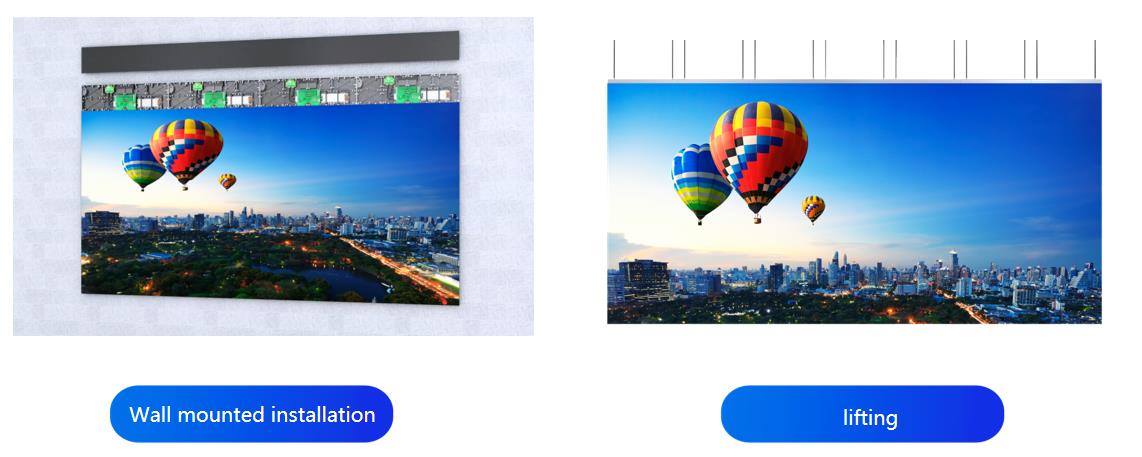

Versatile Mounting Systems for Any Infrastructure Whether your project involves overhead truss suspension, direct curved wall-mounting, or a clean recessed finish for high-end interiors, our P4 modules adapt seamlessly. We’ve engineered the magnetic array to ensure alignment on complex surfaces, making on-site deployment faster for your installation crew.
Furthermore, the display is optimized for a wide 160° horizontal viewing angle. This ensures that even for viewers seated at the far periphery, the color fidelity and brightness remain consistent with the center of the screen—a critical requirement for professional TV studios and 24/7 command centers.

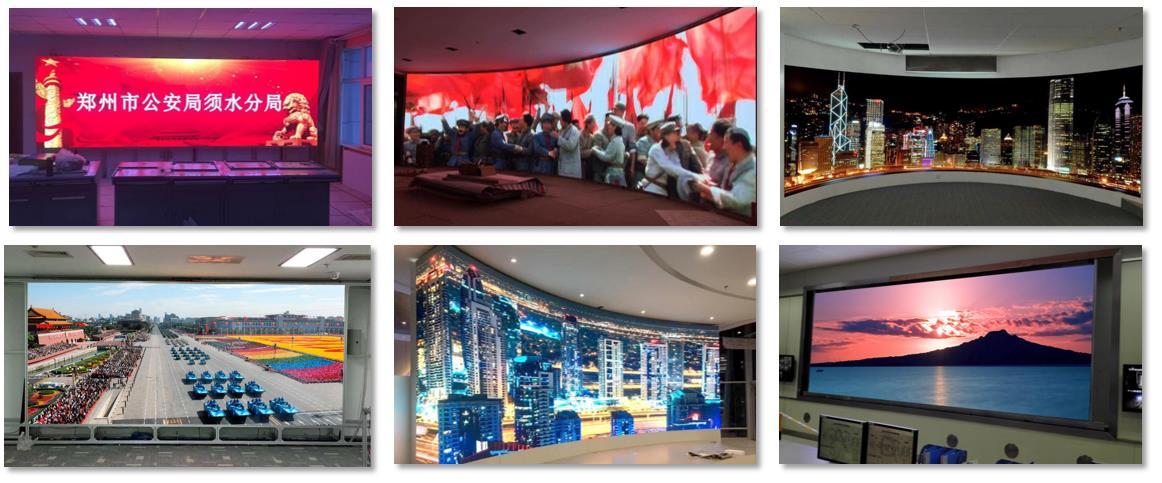

Corporate & Executive EducationIn noise-sensitive environments like boardrooms, our 0dB fanless design is a game-changer. It eliminates hardware hum entirely, ensuring that the only thing your audience hears is the presentation.
Professional TV Studios & Media HubsCamera lenses are unforgiving. That’s why our CNC-processed cabinets maintain a flatness tolerance of less than 0.1mm. The result? A perfectly seamless digital canvas that remains flicker-free and smooth, even in high-definition broadcasts.
Fast-Paced Events & InstallationsTime is money on-site. Our screwless, tool-less locking system redefines efficiency, allowing crews to snap cabinets together securely in seconds. It’s not just faster; it’s a more reliable build for demanding temporary setups.
Pixel Pitch | P1.25 | P1.5625 | P1.875 | P2.5 |
LED Type | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
Physical Density(dots/sqm) | 640000 | 409600 | 284444 | 160000 |
Module Resolution | 240x135 | 192x108 | 160x90 | 60X135 |
Module Size(WXH)mm | 300x168.75 | 300x168.75 | 300x168.75 | 150X337.5 |
Panel Dimension(WXHXD/mm) | 600x337.5x27.5 | |||
Panel Resolution | 480x270 | 384x216 | 320x180 | 240X135 |
Module QTY(WXH) | 2x2 | 2x2 | 2x2 | 4X1 |
Panel Weight(KG) | 4.5 | |||
Maintenance Mode | Front maintenance | |||
Cabinet Materials | Die-cast aluminum | |||
Brightness Carlibration | have | |||
Brightness(Nits) | ≥600 | |||
Color Temperature(K) | 5000-12000 Optional | |||
Viewing Angle(V/H) | 170°/170° | |||
Brightness/Color uniformity | ≥99.8% | |||
Contrast Ratio | 10000:1 | |||
Frame Frequency | 50/60 | |||
Drive Mode | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
Grey Level | 16bit | |||
Refresh rate(Hz) | 3840 | |||
MaxPower Consumption(W/m²) | 350 | |||
Ave,Power Consumption(W/m) | 100 | |||
Protection grade | IP31 | |||
Input Power | AC90-264V,47-63Hz | |||
Working Temp/Humidity(℃/RH) | -20~60℃/10%~85% | |||
Storage Temp/Humidity(°℃/RH) | -20~60℃/10%~85% | |||
Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||
