A commercial building facade in Brazil needed an outdoor LED display for building facade use — not a roadside sign on its own structure, but a screen built into the building's own street-facing wall. That's a different problem than a freestanding structure like a gas station totem: the mounting has to work with a facade that's already there, and the display still needs to read clearly to both pedestrians walking past and traffic moving down the street.
(For a roadside, freestanding installation instead, see our gas station LED display case study.)
The environment brought its own demands — strong sun, high humidity, heavy tropical rain, long-term commercial use. We went with a lightweight LED cabinet for facade installation paired with high-brightness LED modules, which held visual performance up while keeping the load on the facade itself manageable.
(This project uses a modular, multi-cabinet layout — for a single ultra-wide panel approach to storefront branding instead, see our Italy retail billboard case study.)
For how facade projects compare with other fixed installations, see our Fixed LED Display guide.
Parameter | Specification |
|---|---|
Project Location | Brazil |
Application | Outdoor Commercial Advertising — Building Facade Installation |
Display Type | Outdoor Full Color LED Display |
Pixel Pitch | |
Screen Size | 4.80m (W) × 3.84m (H) |
Display Area | 18.43㎡ |
Cabinet Size | 960mm × 960mm Die-Cast Magnesium Cabinet |
Cabinet Quantity | 20 Cabinets (5 × 4 Layout) |
Maintenance Method | Front & Rear Maintenance |
Protection Rating | Front IP65 / Rear IP54 |
Installation Environment | Outdoor Commercial Area |
The 5×4 cabinet layout works out to a 4.8m × 3.84m surface, sized to sit flush within the building's facade line rather than project outward from it. This P5 outdoor LED display Brazil installation was engineered specifically around that constraint.
Outdoor visibility under strong sunlight. The site gets heavy daylight exposure, so brightness and contrast needed to hold up through the whole day. We used high-efficiency SMD LEDs pushing above 5,500 nits, with high contrast and stable color reproduction even in direct sun — the kind of facade-mounted LED display brightness a street-facing installation actually needs to stay readable at any time of day.
A lightweight structure for a facade-mounted display. When a screen is built into a building's own wall rather than a dedicated freestanding frame, cabinet weight matters a lot more — it's the existing structure carrying the load, not a purpose-built support. That's why we went with a die-cast magnesium LED cabinet instead of the usual steel: less weight overall, lighter demands on the facade itself, easier transport and installation, and better dimensional stability over years of outdoor exposure.
For what front-access design saves on facade projects generally, see how front maintenance reduces installation and lifetime operating costs.
Standing up to a tropical climate. Between the UV exposure, humidity, heavy rain, and heat typical of this part of Brazil, this IP65 outdoor LED display for tropical climate use needed real weather protection — front IP65, rear IP54, a sealed power and data connection system, thermal management, and components rated for outdoor use throughout.

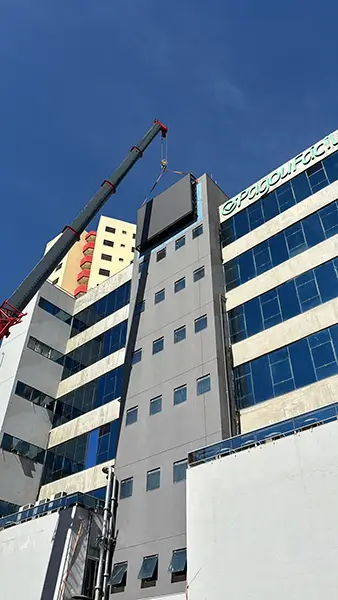

Twenty precision-machined cabinets went up in a 5×4 layout, and the mechanical locks kept the surface flat with minimal visible gaps between cabinets — which matters more on a facade install than most, since the screen is meant to read as part of the building rather than something bolted onto it.
Before delivery, the system went through a full 72-hour aging test and a display quality control process to check pixel stability, brightness consistency, color uniformity, and power reliability. On-site, the team handled cabinet alignment, signal testing, brightness calibration, and content playback testing.

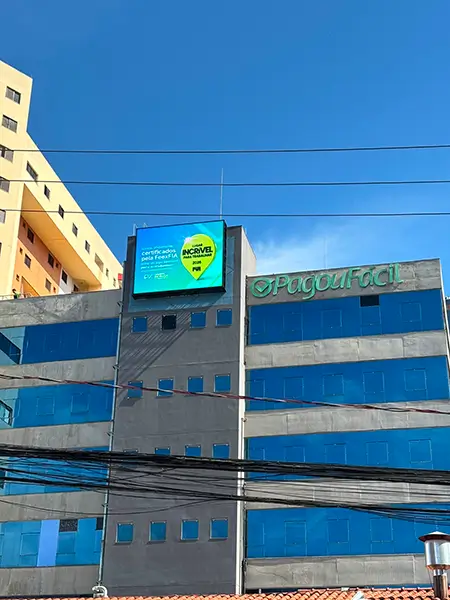

The finished installation gives the building a digital advertising surface built directly into its own street-facing wall — built for daytime visibility, weatherproofed for the local climate, and engineered to keep the additional load on the existing facade structure manageable. As an outdoor LED display for commercial building advertising, it does the job without looking bolted onto the building it's part of.
For building facade installations, commercial advertising screens, transportation signage, and other large outdoor projects, our engineering team handles the full scope — screen sizing, outdoor environment assessment, cabinet structure, pixel pitch and brightness recommendations, and factory production and testing.
Contact our engineering team for a customized outdoor LED display proposal.
