High Definition Indoor Fixed LED Display with Front Maintenance And Seamless Splicing for Commercial Video Walls
Ultra high definition | Light weight | Flexible assembly | Right angle splicing | Hardwired | Pre maintenance | Quick installation | High gray high brush
Beyond the Rectangle: Why Fixed LED Matters
In premium retail and corporate environments, a standard TV screen often falls short of the architectural vision. Our indoor fixed LED solutions are designed to integrate into your space, not just sit on it. Whether you are aiming for a flush-mount wall installation or a custom-sized digital backdrop, these panels offer the structural integrity and visual precision required for 24/7 operation.
Pixel Perfect Performance: Available in pitches from P1.2 to P3.9, ensuring your content looks sharp even at close range in boardrooms or boutiques.
Seamless Splicing: Unlike LCD video walls, our modules eliminate bezel lines entirely, creating one continuous, fluid digital canvas.

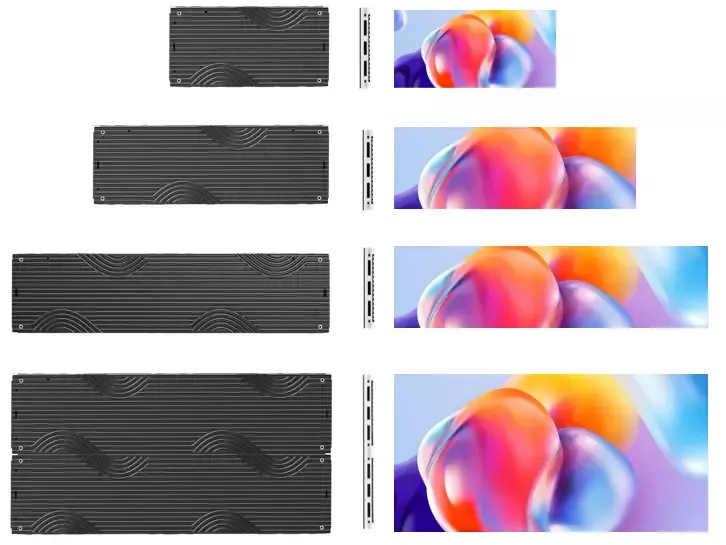

Cabinet Size
4 sizes: 1000×500×33mm, 1000×250×33mm, 750×250×33mm, 500×250×33mm

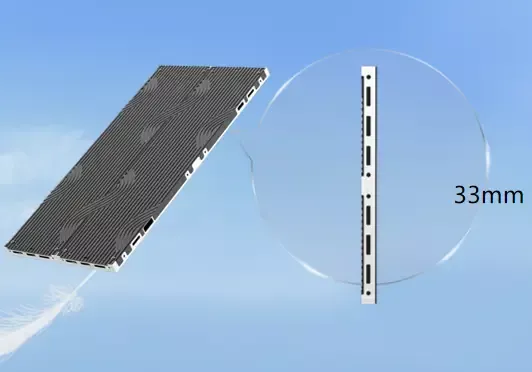

Cabinet Weight
1000X500mm/1000X250mm/750X250mm/500X250mm, are as follows:9.8kg/5.0kg/4.0kg/3.0kg

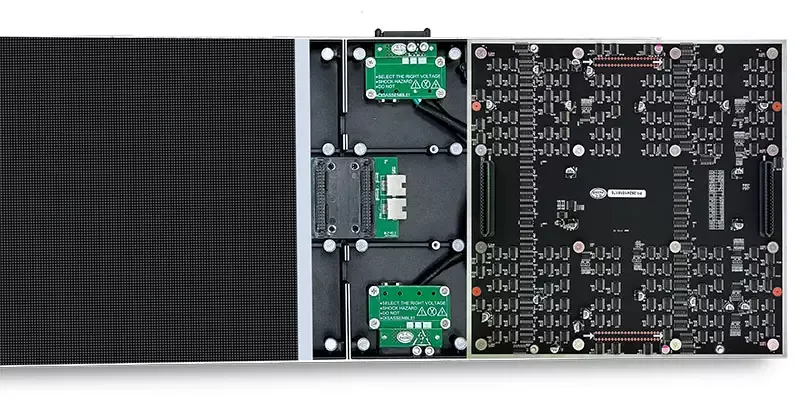

Smart Module Design and Snap-and-Stay Magnetic Mount
Smart Module Design for High-Traffic Fixed Installs. ： No Rotation Distortion: Most modules suffer from viewing angle shifts when rotated. Ours doesn't. We've optimized the light bead orientation to maintain a consistent visual experience across all 360 degrees.
Snap-and-Stay Magnetic Mount: We combine a rigid cabinet connection with automatic magnetic alignment. This ensures your modules won't loosen or sag over time, even in environments with subtle building vibrations. Maintenance is as simple as a 10-second front-access swap with a vacuum tool.
Anti collision design | Never loosen the screw | Eagle Hook Lock (optional) | Hard connection (optional)
Engineered for the Real World: 100% Front-Access Maintenance
We understand that once a screen is installed in a high-traffic lobby or a luxury store, accessing the back of the display is often impossible.

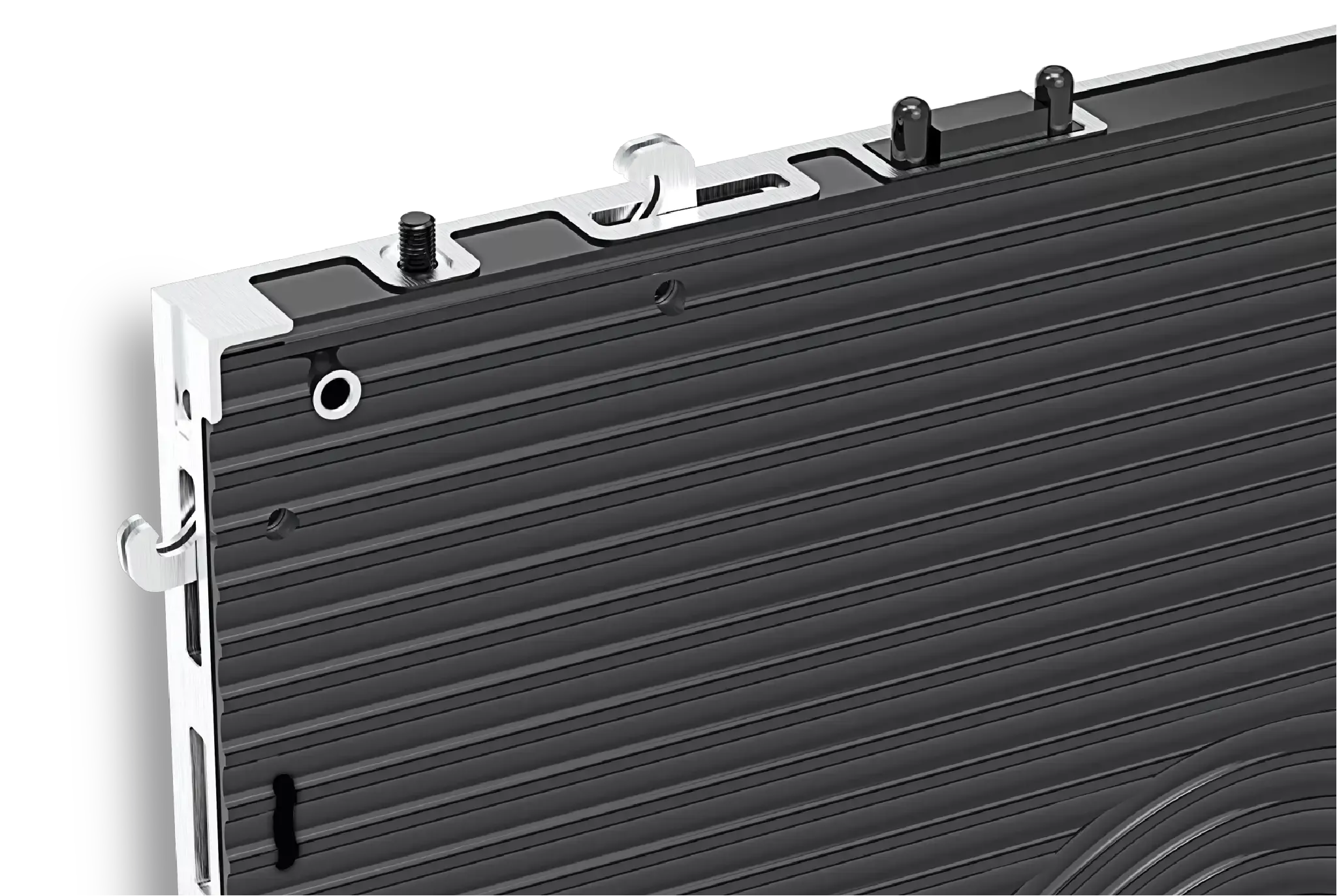

Magnetic Serviceability: Each LED module integrates a high-strength magnetic adsorption system, allowing a single technician to remove and replace it from the front in under 30 seconds using a vacuum suction tool.
Slim-Profile Design: By eliminating the need for rear service alleys, you save valuable floor space, allowing the screen to sit closer to the wall for a cleaner, more modern look.

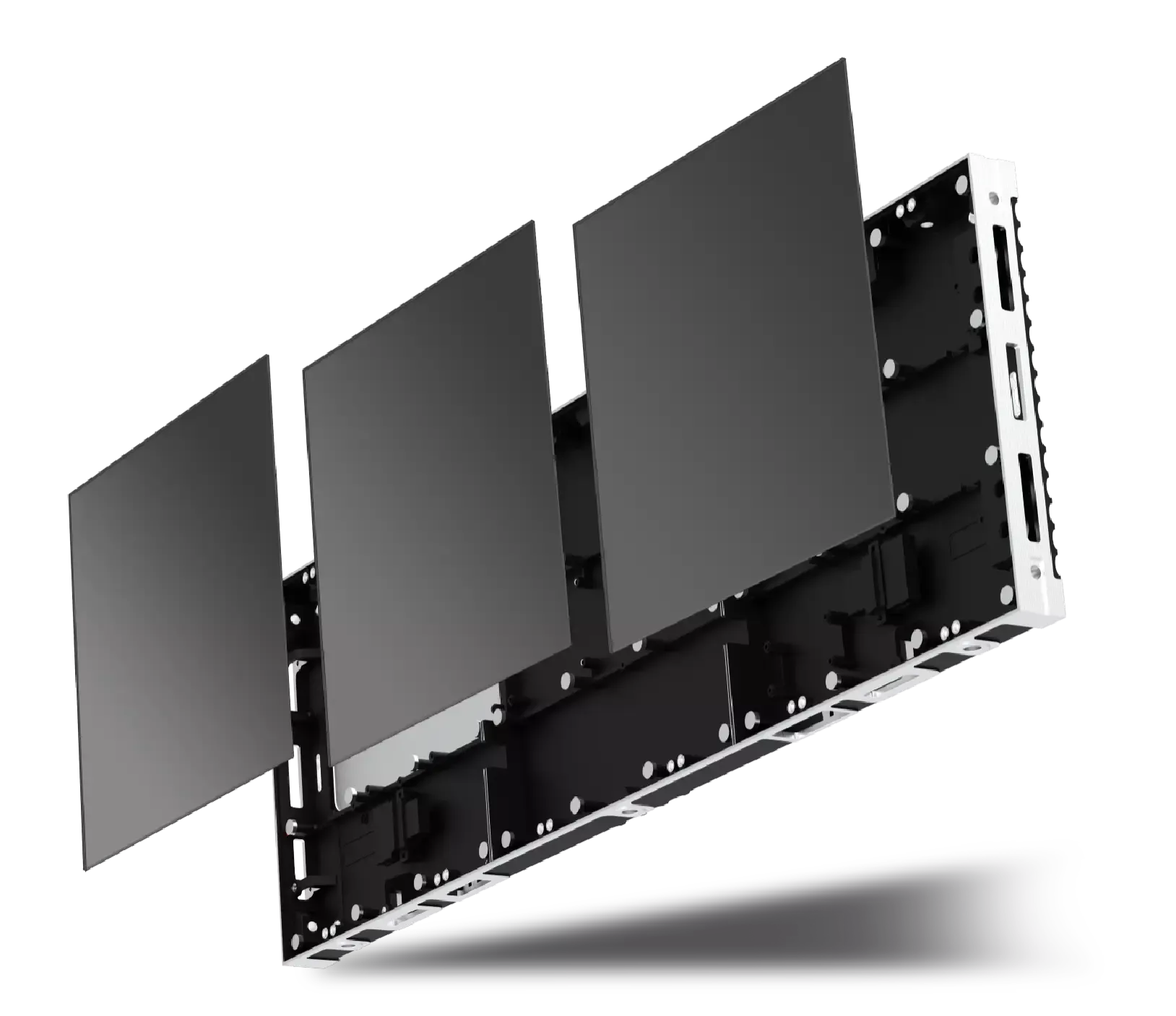

Front maintenance
Support pre installation and maintenance, with zero space constraints.
Free splicing, flexible display

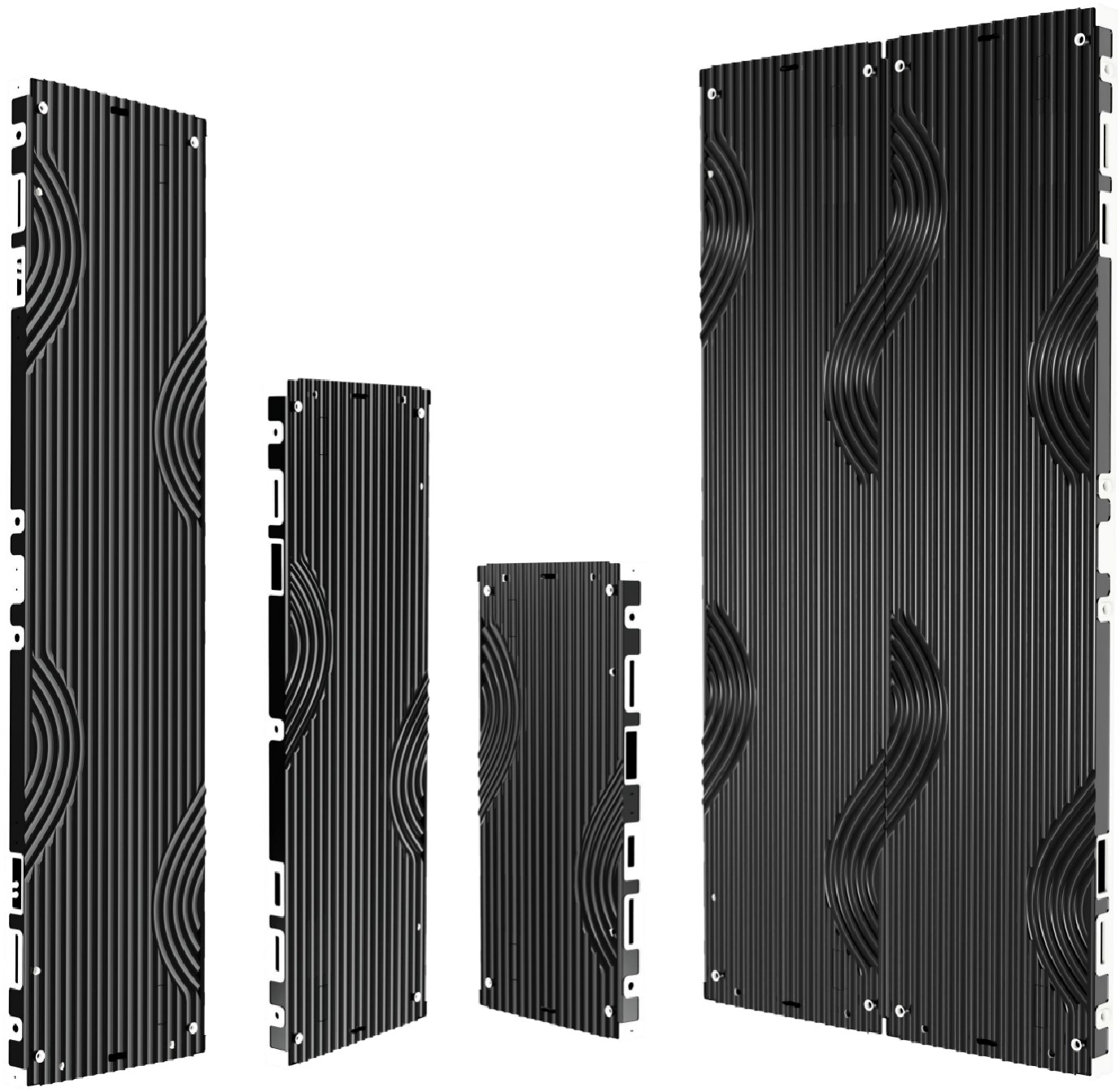

The four types of enclosures, can be flexibly spliced horizontally and vertically

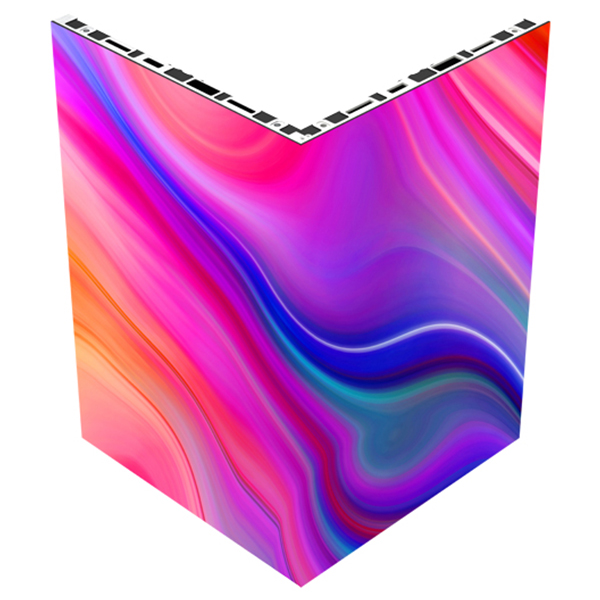

Creative splicing, infinite imagination

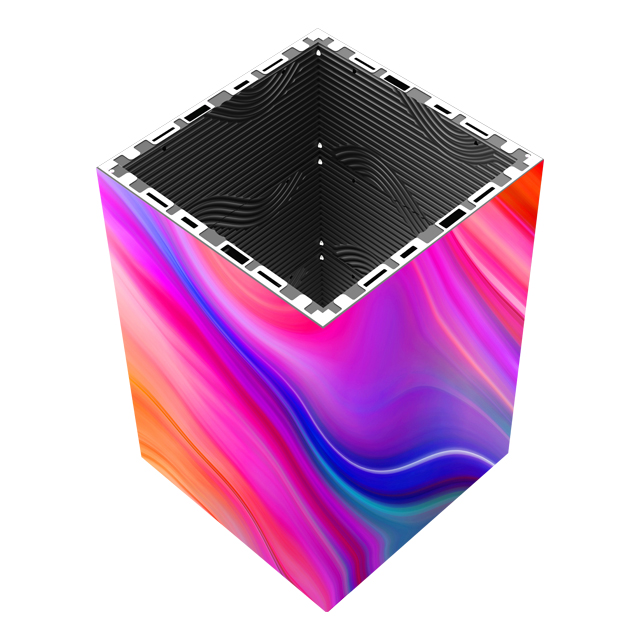

Supports shapes such as right angles and columns to meet various creative splicing needs
Broadcast-Grade Visuals for Critical Environments
For command centers, TV studios, and high-end showrooms, the quality of the image isn't just a luxury—it's a requirement.
3840Hz Refresh Rate: Say goodbye to on-camera flickering. Our screens are "camera-ready," making them the ideal choice for backdrop displays in virtual studios or live-streamed event spaces.
160° Ultra-Wide Viewing Angle: Whether a customer is standing directly in front of the screen or walking past it at an acute angle, the colors remain consistent without the "graying out" effect seen in lower-quality panels.

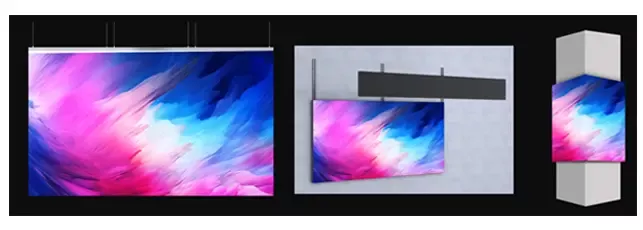

Flexible Installation to Fit Any Architectural Vision
Hanging (Suspended)：Uses heavy-duty beams for ceiling or truss mounting. Perfect for events and trade shows to maximize overhead visibility when floor space is at a premium.
Wall-Mounted (Fixed)： Directly secured to flat surfaces with a slim-profile finish. Ideal for corporate lobbies and retail signage where a clean, permanent architectural look is required.
Column-Wrap (Creative)：Flexible modules designed to wrap around pillars or curved structures. Transforms standard columns into seamless, 360-degree digital landmarks without traditional installation limits.

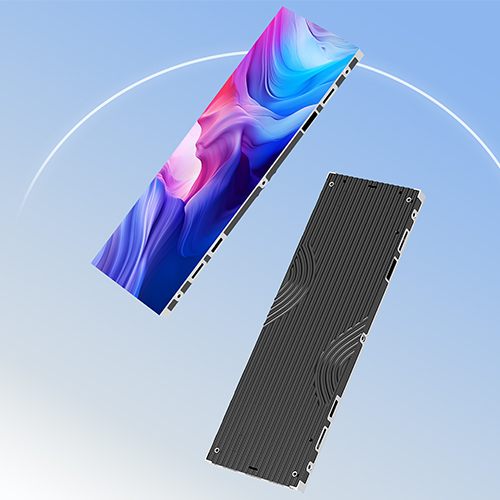

Durability Meets Efficiency
Indoor fixed installations are a long-term investment. We build them to last.

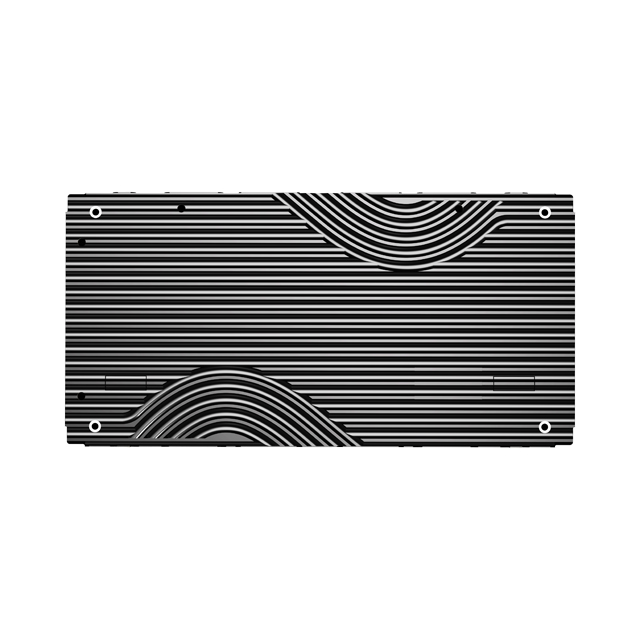

Low Heat & High Efficiency: Optimized PCB design ensures the modules run cool, extending the lifespan of the LEDs and reducing energy consumption over time.
Rigorous Testing: Every batch undergoes a 72-hour aging test before shipping, ensuring that every pixel is functioning perfectly when it arrives at your project site.

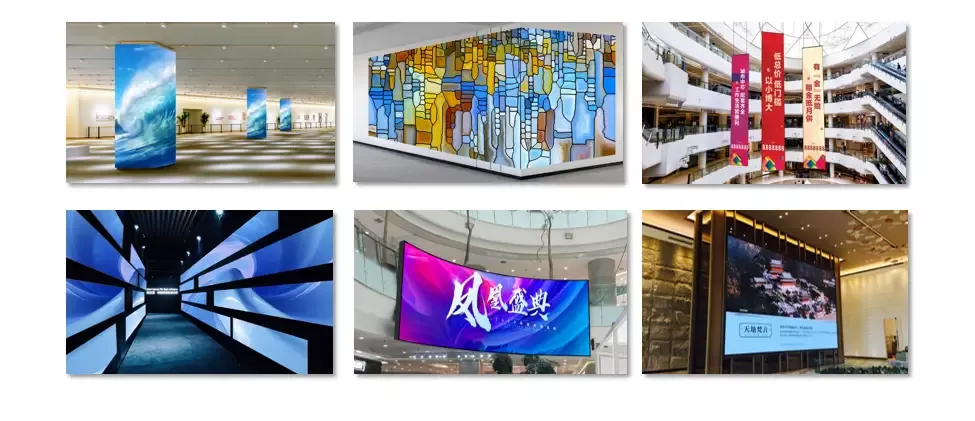

Application
Our clients use these fixed displays to transform spaces across multiple industries:
Retail Excellence: Elevate flagship stores with high-brightness signage that stays vivid even under intense store lighting.
Corporate Communication: Replace projector screens in boardrooms with high-contrast LED walls that don't require the lights to be dimmed.
Public Venues: From museum exhibits to airport terminals, provide clear, reliable information to thousands of daily visitors.
Technical Parameters
Pixel Pitch | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
LED Type | SMD1010(GOB) | SMD1212(GOB) | SMD1515(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
Physical density(Dot/sqm) | 640000 | 409600 | 262144 | 160000 | 147475 | 112896 | 65536 |
Module resolution | 200X200 | 160x160 | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 |
Module dimension(mm) | 250X250 |
Panel size(mm)
| 1000 ×500 ×33mm 1000 ×250 ×33mm 750 ×250 ×33mm 500 ×250 ×33mm |
Module quantity(WXH) | 4X2/4X 1/3X 1/2X 1 |
Panel resolution | 800 ×400
800×200 600X200 400 ×200 | 640x320 640x160 480x160 320x160 | 512x256 512x128 384x128 256x128 | 400x200 400x100 300x100 200x100 | 384x192 384x96 288x96 192x96 | 336x168 336x84 252x84 168x84 | 256x128 256x64 192x64 128x64 |
Maintenance | Front access |
Cabinet material | Die cast aluminum |
Single point brightness | Have |
correction Brightness(Nits) | 600 |
Color temperature(K) | 5000-12000 Optional |
Viewing angle(V/H) | 160°/160° |
Brightness/Color uniformity | ≥97% |
Contrast | 10000 : 1 |
Frame frequency | 50/60 |
Drive mode | 1/50 Scan | 1/40 Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
Gray level | 14/16 Optional |
Refresh rate(Hz) | 3840 |
Max. power consumption(W/sqm) | 350 |
Avg. power consumption(W/sqm) | 100-200 |
Protection level | IP31 |
Power input | AC90-264V,47-63Hz |
Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% |
Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% |
Cert. | CCC/CE/ RoHS/ FCC/CB/TUV/IEC
|
