YL-0011
Yuanlv
8531200000
Energy saving eye protection | High brightness | IP65 waterproof | High refresh | Wide viewing angle | Front/Rear Maintenance
Outdoor fixed LED displays are designed for permanent outdoor applications where reliability, brightness, and structural stability are critical.

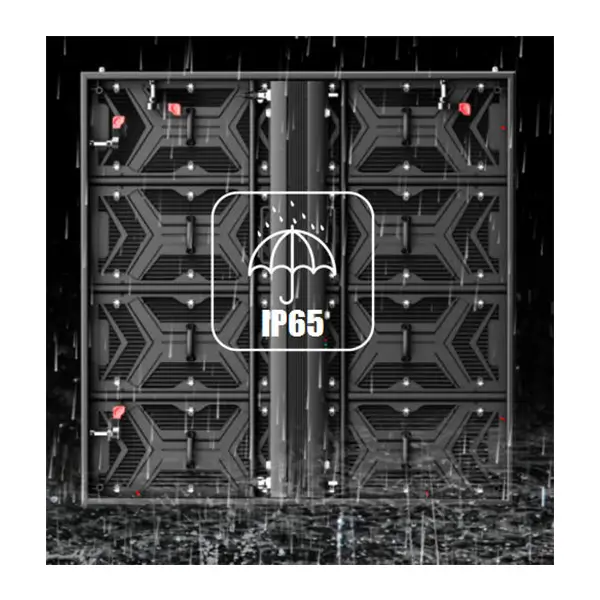

With robust aluminum cabinets, IP65 protection, and high-efficiency LED technology,this display is built for large-format, standalone outdoor installations — advertising billboards, stadium screens, and transportation hub displays where structural independence and long viewing distances matter most.
Outdoor advertising requires consistent visibility in changing lighting conditions. Our outdoor fixed screens are engineered with ultra-high brightness levels (up to 10,000 nits) to ensure your content remains vivid and clear even in peak mid-day sun.
Auto-Brightness Adjustment: Integrated light sensors automatically calibrate screen brightness based on ambient conditions, saving energy at night while maximizing impact during the day.
High Contrast Ratio: Deep blacks and vibrant colors ensure your brand messaging pops against any urban or highway backdrop.
For massive highway billboards or stadium displays, structural integrity is non-negotiable.Designed for long-term fixed installation, the cabinet structure maintains stability under wind, temperature changes, and continuous outdoor operation.
Reinforced Cabinet Structure: Our cabinets are built with precision-engineered materials that resist wind loads and prevent deformation over years of exposure.
Seamless Modular Splicing: Achieve a perfectly flat, large-format display surface with our precision-aligned modular system, eliminating visible gaps even at a massive scale.

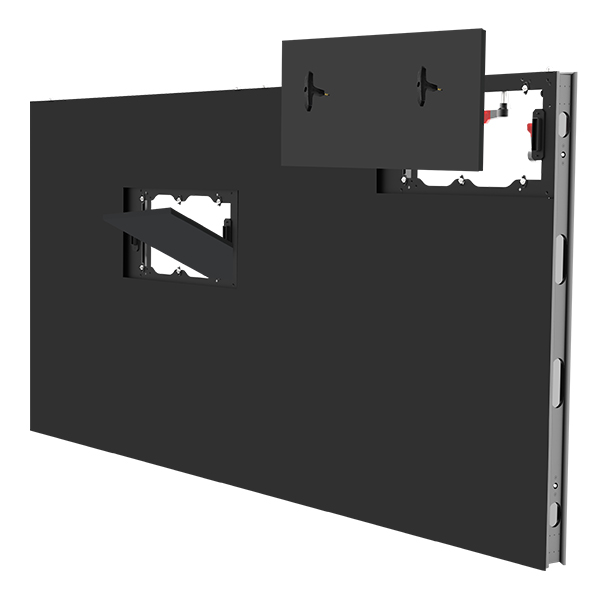

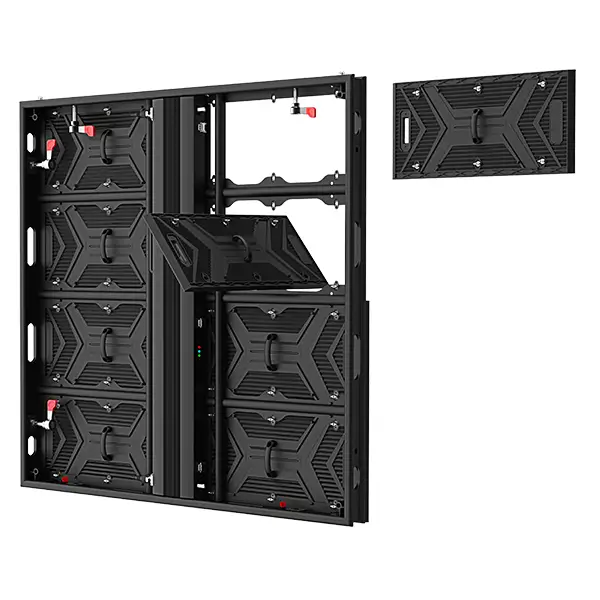

Outdoor fixed LED displays may be installed on billboards, stadium structures, transportation hubs, or standalone frames, and maintenance access can vary from one site to another. Supporting both front and rear maintenance, the display gives installation teams more flexibility when planning service access and routine maintenance.

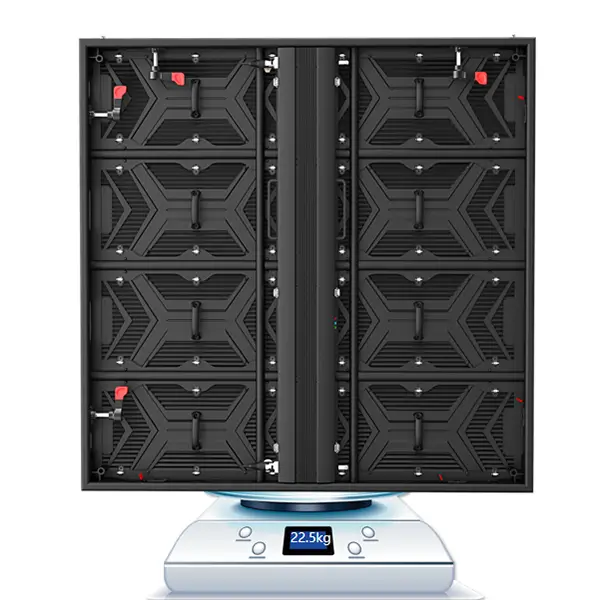

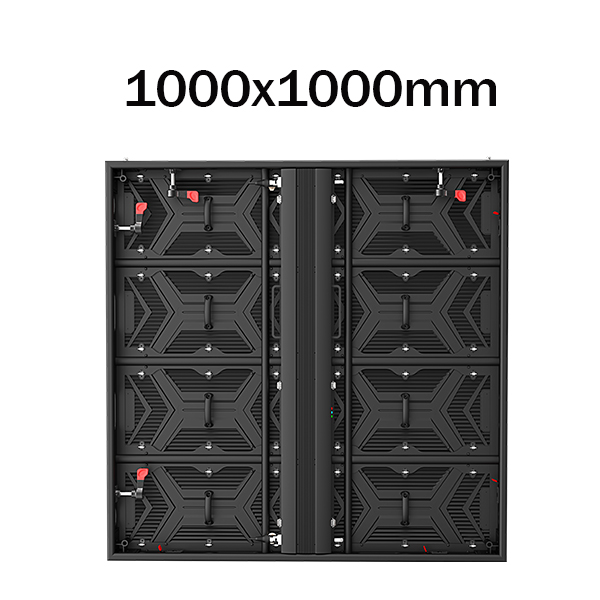

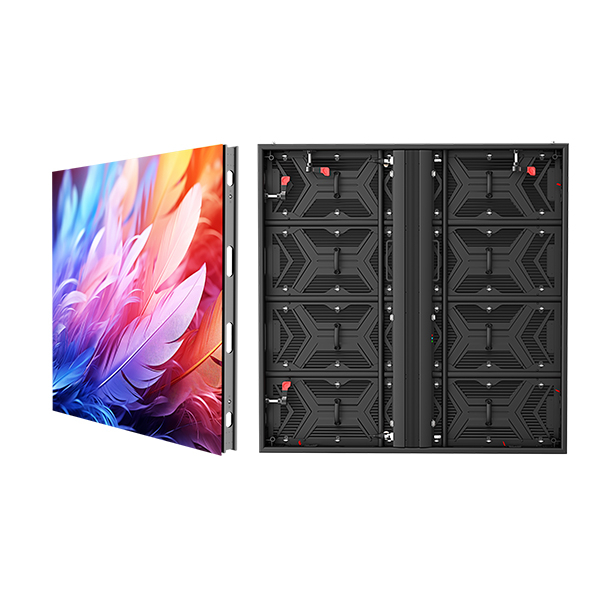

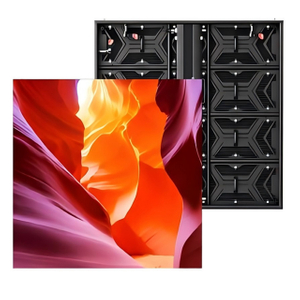

Ultra-Lightweight 1000x1000mm Cabinet
Engineered to be 35% lighter than conventional steel cabinets, significantly reducing the load-bearing requirements for large-scale outdoor installations.The lightweight aluminum structure reduces installation load while improving corrosion resistance and heat dissipation for long-term outdoor operation.
Visual Clarity from Every Corner. With a true 160° ultra-wide viewing angle, your content maintains its integrity no matter where the audience is standing. Unlike standard displays that suffer from "graying out" or color shifting when viewed from the side, our panels ensure zero noticeable attenuation in brightness or contrast. Whether viewed from different positions in public spaces, the display maintains consistent brightness and color performance,the imagery remains as vibrant and sharp as a direct-on view—eliminating the common issues of fading and blurring in large-scale public installations.

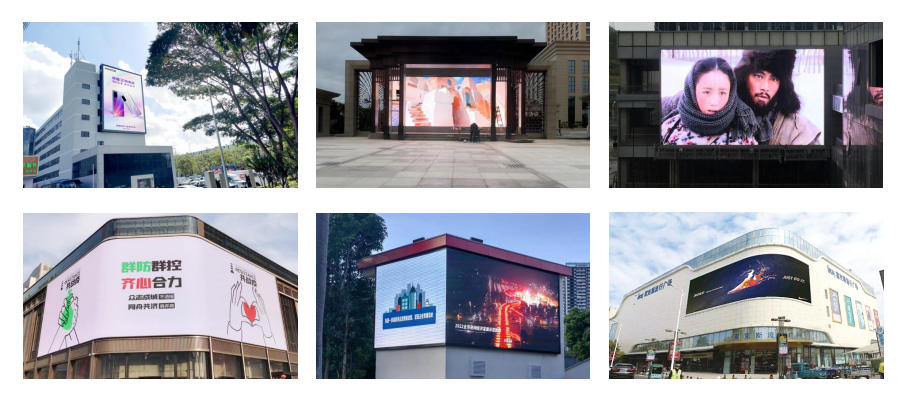

Digital Out-of-Home (DOOH): Turn high-traffic intersections into high-revenue advertising hubs.
Sports Stadiums: Deliver live scores, replays, and sponsor messages with high-refresh-rate visuals.
Transit Hubs: Provide real-time information and branding in airports, train stations, and bus terminals.
Highway Advertising Billboards:Large outdoor billboards requiring high brightness, weather resistance, and long-term stable operation.
Pixel Pitch | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
SMD Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Physical density(Dot/sqm) | 112896 | 65536 | 43264 | 25600 | 16384 | 9216 |
Module resolution | 168x84 | 128x64 | 104x52 | 80x40 | 64x32 | 48x24 |
Module dimension(mm) | 250X250 | |||||

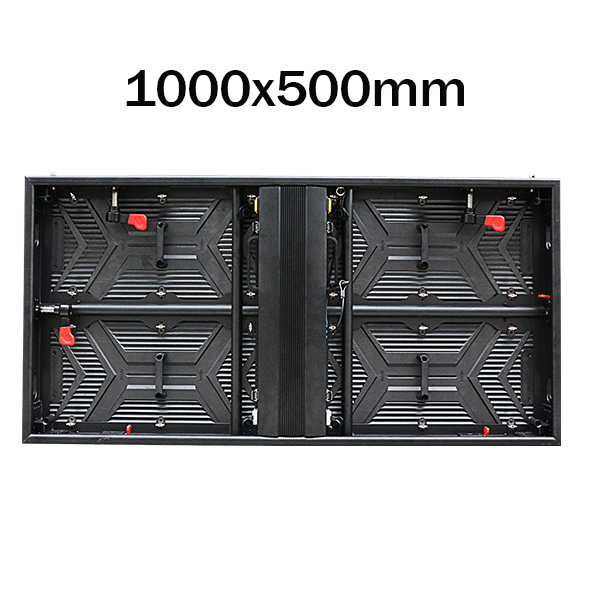

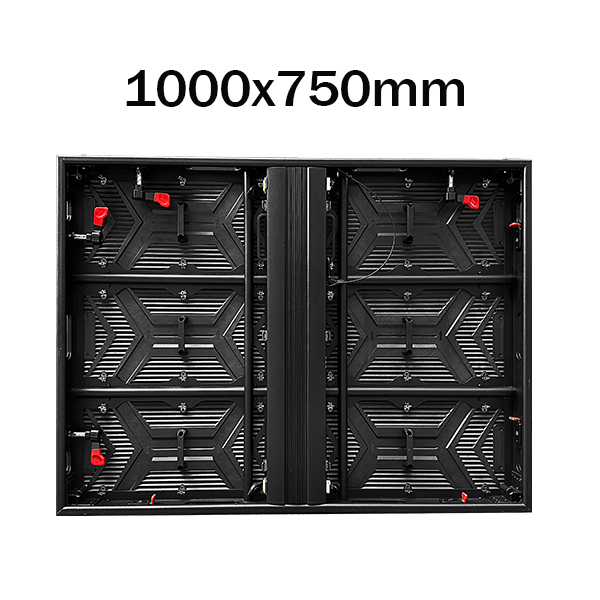

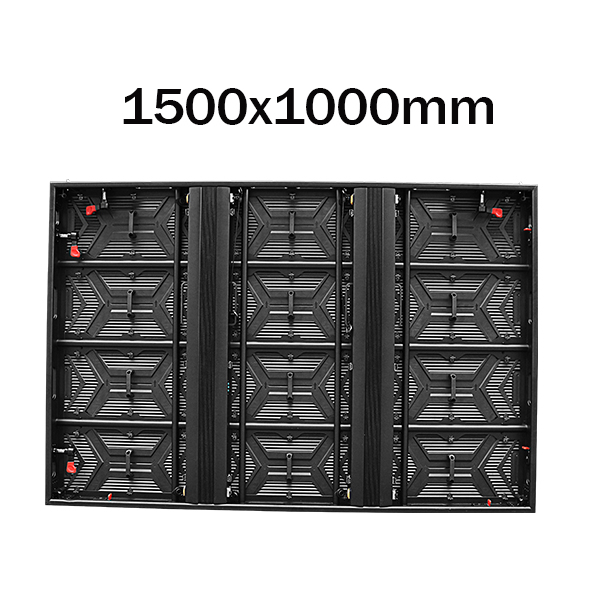

Panel size(mm) | 1000 ×1000 x 83(customized for 1500 width and 500/750 height) | |||||
Panel resolution | 336x336 | 256x256 | 208x208 | 160x160 | 128x128 | 96x96 |
Module quantity(WXH) | 2x4 | |||||
Panel Weight(kg) | 22.5 | |||||
Maintenance Mode | Front and Rear | |||||
Cabinet material | Die-Cast Aluminum Cabinet | |||||
Brightness (Nits) | 4500 | 5500-10000 | 5500-10000 | 5500-10000 | 5500-10000 | 5500-10000 |
Color temperature(K) | 5000-12000 Optional | |||||
Viewing angle(V/H) | 140°/160° | |||||
Best Viewing Distance | 3-100m | 4-100m | 4-100m | 6-150m | 8-150m | 10-200m |
Contrast Ratio | 10000 : 1 | |||||
Frame frequency | 50/60 | |||||
Drive mode | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/8 Scan | 1/4 Scan | 1/2 Scan |
Gray level | 16 bit | |||||
Refresh rate(Hz) | 3840 | |||||
Max. power consumption(W/sqm) | 650 | |||||
Avg. power consumption(W/sqm) | 100-200 | |||||
Protection level | IP65 | |||||
Power input | AC90-264V,47-63Hz | |||||
Working temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
Cert. | CCC/CE/ RoHS/ FCC/CB/TUV/IEC | |||||
What's the difference between front and rear maintenance on this display?
Front maintenance lets technicians service the display without accessing the back, useful when the installation has limited rear clearance. Rear maintenance means components are accessed from behind, which works well for standalone structures like billboards or stadium screens where open space exists behind the display. This model supports both, so the choice comes down to what's practical for your specific installation.
What pixel pitch is best for a highway billboard or stadium screen?
For viewing distances beyond 50 meters — typical for highway billboards and large stadium screens — pixel pitches in the P6.25 to P10.42 range are usually the right starting point. Closer applications, like transportation hub displays viewed from a few meters away, can use finer pitches like P2.976 or P3.91.
Is this display suitable for a freestanding structure, or does it need a building wall?
This model is built for standalone installations — billboards, pylon signs, stadium screens — where the structure supports itself rather than mounting flush against a wall. If your project requires mounting directly onto a building facade with no rear clearance, our Outdoor Fixed Front Maintenance LED Display is designed specifically for that scenario.
How much weight does the cabinet structure need to support?
The 1000x1000mm cabinet is engineered to be approximately 35% lighter than conventional steel cabinets, which reduces the load-bearing requirements on the supporting structure — a meaningful factor for large-scale installations where structural cost adds up across dozens or hundreds of cabinets.
