Indoor display projects are no longer limited to traditional flat video walls. Retail stores, brand experience centers, museums, and commercial interiors increasingly require LED screens that can follow creative layouts while maintaining high image quality.

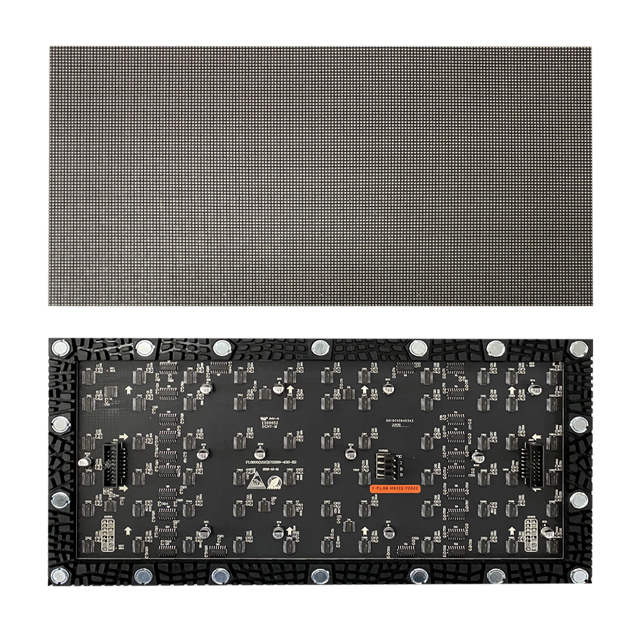

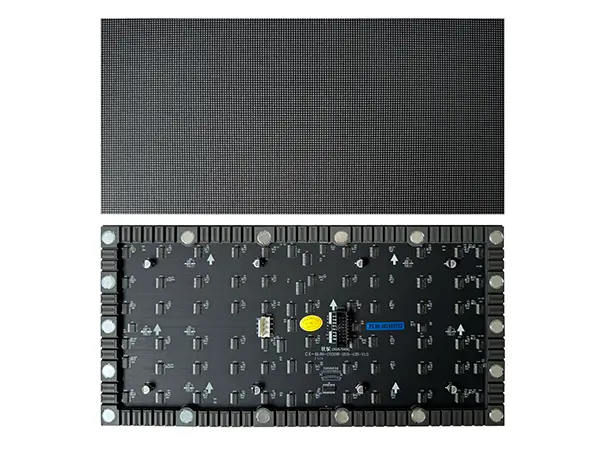

The 320×160mm Indoor Flexible LED Display Module is designed for these applications. Built with a high-strength soft PCB, stable LED packaging structure, and front magnetic maintenance system, it provides a practical solution for curved indoor LED installations where both visual performance and installation efficiency are important.
Compared with conventional rigid LED panels, flexible LED modules allow designers to create curved backgrounds, flowing visual surfaces, and customized indoor display structures while keeping consistent brightness, color performance, and serviceability.
Typical applications include:
Retail stores and flagship shops
Corporate showrooms and experience centers
Museums and exhibitions
Conference and presentation spaces
Broadcast and content production studios
Creative indoor LED installations

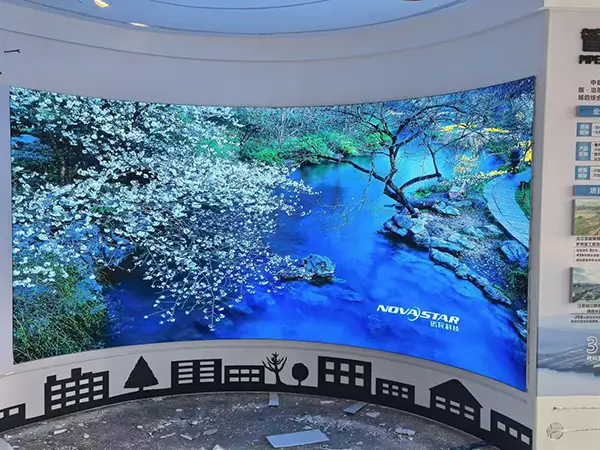

 | 1. High-Resolution Flexible LED Display for Close Viewing EnvironmentsIndoor commercial displays are usually viewed at shorter distances, making image quality and pixel consistency critical.Available with P1.53 and P1.86 pixel pitch options, the 320×160mm flexible LED module delivers:
The module design is suitable for applications where audiences interact closely with the screen, such as retail displays, exhibition booths, and corporate presentation spaces. |

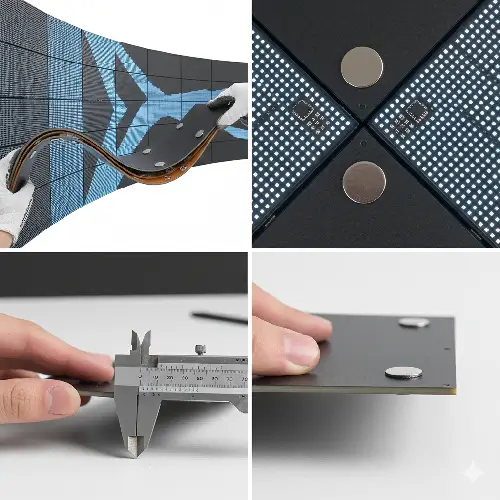

2. Flexible Structure for Creative Indoor Display DesignsTraditional LED cabinets require flat installation surfaces and fixed layouts. Flexible LED modules provide more possibilities for interior designers and system integrators. The soft PCB structure allows the display surface to adapt to:
The flexible design helps reduce limitations during project planning while maintaining reliable signal and power transmission. |
|
3. Standard 320×160mm Module Size for Project CompatibilityThe 320×160mm format is widely adopted in LED display applications, making it convenient for system integration, production planning, and future maintenance. Advantages include: Easier Engineering PlanningThe standardized module dimension simplifies:
Convenient ReplacementFor projects using similar LED structures, the standard module format helps reduce maintenance complexity and improves long-term service efficiency. |

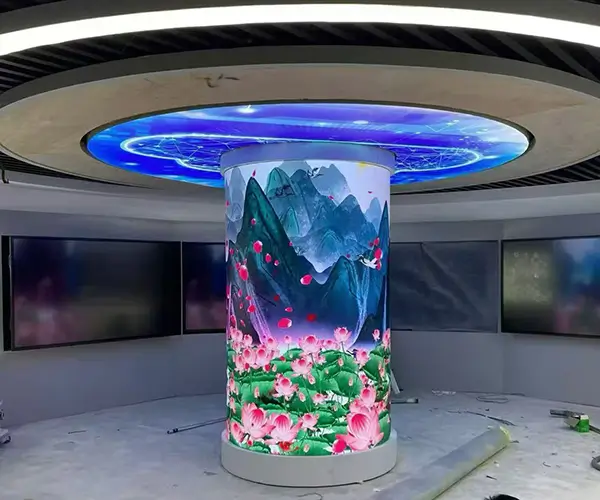

4. 3840Hz Refresh Rate for Camera-Friendly PerformanceModern commercial displays are frequently recorded for marketing videos, livestreams, and social media content. With a 3840Hz refresh rate, the flexible LED display provides stable image output during camera shooting. Performance advantages: Reduced scan lines on camera Improved motion clarity Lower risk of visible flickering Suitable for broadcast and content production environments This makes the display suitable for retail content creation, studio backgrounds, and event recording applications. |
|
 | 5. 16-bit Grayscale for Smooth Color PerformanceIndoor environments often require accurate image reproduction, especially for brand content, product visuals, and video playback. The 16-bit grayscale processing helps maintain:
|

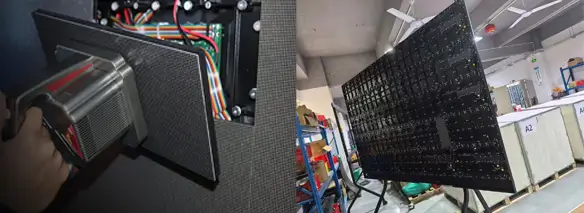

6. Magnetic Front Maintenance for Faster ServiceCommercial indoor displays often operate in locations where maintenance time needs to be minimized.The magnetic front-access design allows technicians to remove and replace individual modules from the display surface without dismantling the complete structure. Benefits:
A vacuum suction tool can be used for quick front module servicing, making daily maintenance more convenient for installers and operators. |  |
Application Areas | |

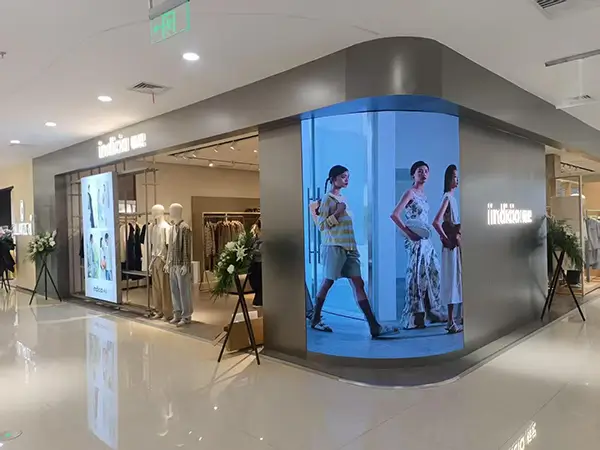

Retail Stores and Brand ShowroomsFlexible LED displays help retailers create customized digital environments for product presentation, promotional content, and brand storytelling. Curved display surfaces can be integrated into walls, counters, and interior structures to improve customer engagement. | Corporate Experience CentersCompanies use curved indoor LED walls for:
The flexible structure allows display designs to match modern architectural interiors. |

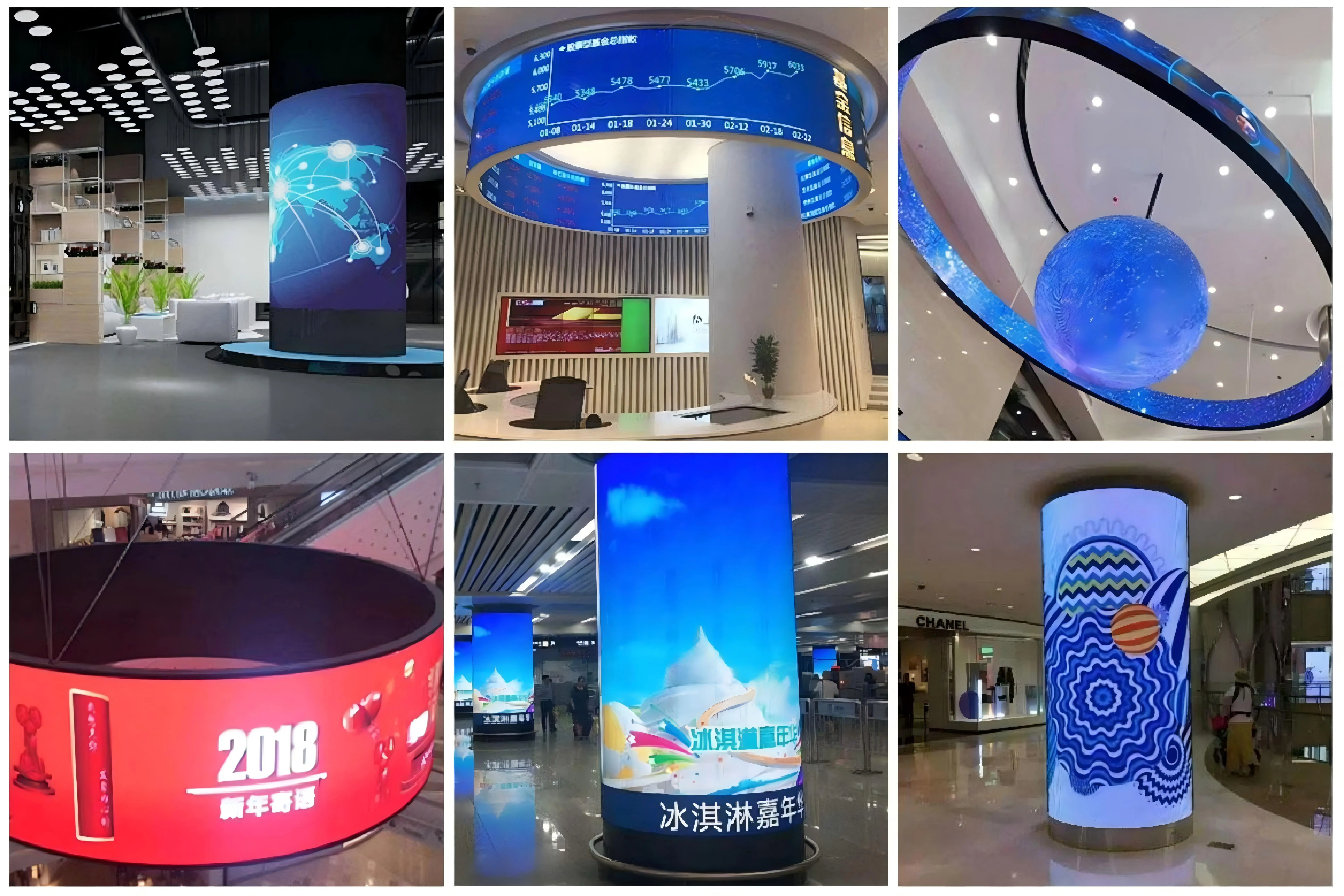

Museums and Exhibition SpacesFlexible LED technology provides more freedom for exhibition designers to create:
It helps combine digital content with physical exhibition environments. | Broadcast Studios and Content ProductionWith high refresh performance and stable image output, the display can be used for:
|
Pixel Pitch | P1.53 | P1.86 |
LED Type | SMD1010 | SMD1515 |
Physical Density(dots/m) | 422500 | 288906 |
Module Resolution | 208X104 | 172X86 |
Module Size(WXH) | 320X160 | |
Cabinet Size(mm) | 960X960 | |
Cabinet Materials | Iron | |
Brightness(Nits) | 600 | |
Color Temperature(K) | 5000-12000 Optional | |
ViewingAngle(V/H) | 160°/160° | |
Viewing Distance | 1.25-50m | |
Contrast Ratio | 10000:1 | |
Frame Frequency | 50/60 | |
Scan Mode | 1/52 Scan | 1/43 Scan |
Grey Level | 16bit | |
Refresh rate(Hz) | 3840 | |
Max Power Consumption(W/m²) | 600 | |
Ave Power Consumption(W/m) | 80-150 | |
Protection grade | IP31 | |
Input Power | AC90-264V,47-63Hz | |
Working Temp/Humidity(℃/RH) | -20~60℃/10%~85% | |
Storage Temp/Humidity(°℃/RH) | -20~60℃/10%~85% | |
Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | |
A flexible LED display uses a soft PCB structure that allows the module surface to follow curved installation designs. Traditional rigid LED cabinets are mainly designed for flat surfaces.
Yes. With fine pixel pitch options such as P1.53 and P1.86, it is suitable for indoor environments where viewers are positioned close to the screen.
Yes. The 320×160mm flexible module supports smooth concave and convex curved indoor walls. (For ultra-tight pillar wraps under 40cm diameter, our 256×128mm P4 flexible series is recommended.
Individual modules can be removed from the front using a vacuum tool. The magnetic mounting system allows replacement without removing the entire display structure.
From retail environments to corporate spaces and creative exhibitions, the 320×160mm Indoor Flexible LED Displayprovides a practical combination of image quality, installation flexibility, and easy maintenance.
Our engineering team can support:
☑️Pixel pitch selection
☑️Display size planning
☑️Curved structure recommendations
☑️Module quantity calculation
☑️Customized project solutions
Contact us for your indoor flexible LED display project.
