YL-0005
Yuanlv LED Display
YL-0005
Standard LED screens use enclosed cabinets and active cooling fans — both create problems indoors, where blocked sightlines and fan noise are noticeable in quiet spaces like showrooms and lobbies. Yuanlv's Indoor Transparent LED series solves this with a fanless, see-through panel. With 45–50% transparency, a weight of only 6 kg/m² and an 8 mm thin profile, the screen hangs or stands just behind the glass while keeping the space beyond it visible.
Pixel Pitch
PH3, PH2.97, PH3.91 and PH10.4 models, with best viewing distances starting from 5 meters.
Transparency
45–50% light transmission — a practical glass window LED display option that keeps sightlines and natural light intact.
Cooling
Fanless passive cooling — silent operation, no moving parts to maintain.
Weight
6 kg/m² and only 8 mm thick, light enough for hanging or floor-standing installation without heavy steel structures.
Design
Slim, frameless profile that fits into window tracks and glass partition systems.
Yuanlv has more than 10 years of experience in LED display manufacturing and works directly with international B2B buyers on standard and customized projects. The Indoor Transparent LED series is available with CE, FCC, and RoHS compliance for international projects. We provide technical specifications, installation guidance, and product support for each project.

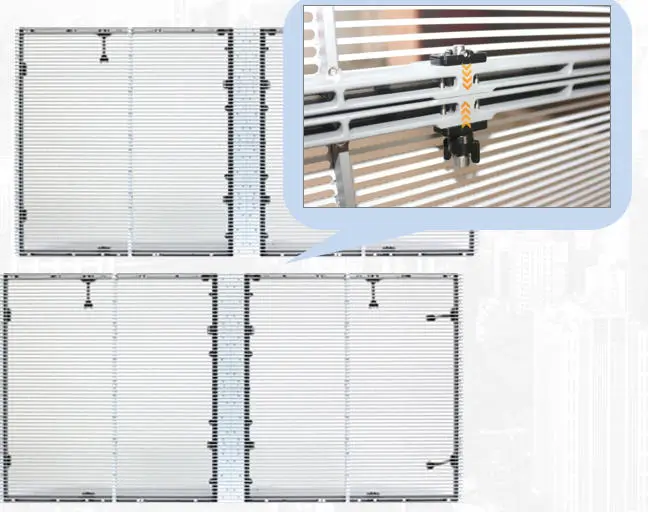

The No.1 budget killer in LED projects is the hidden cost of support structures. At only 6 kg/m², our series can be hung or floor-mounted behind the glass with light structures, cutting installation time and labor costs.
01
Behind-Glass Placement
Installed just behind the glass on a hanging or floor-standing structure, so the display adds no load to the glass itself.
02
Hanging Option
Utilizing high-strength aluminum hanging bars for a stunning floating holographic effect in atriums or stages.
03
Floor-Standing
A reinforced, slim base frame allows the display to sit flush against window ledges where ceiling mounting is not an option.
Maintenance shouldn't be a nightmare for retail owners. Most storefront screens are a pain to service because they lack easy access from the back. We’ve simplified the whole process.

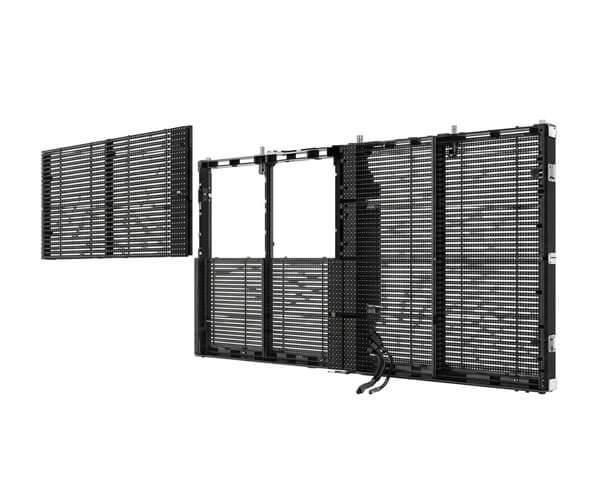

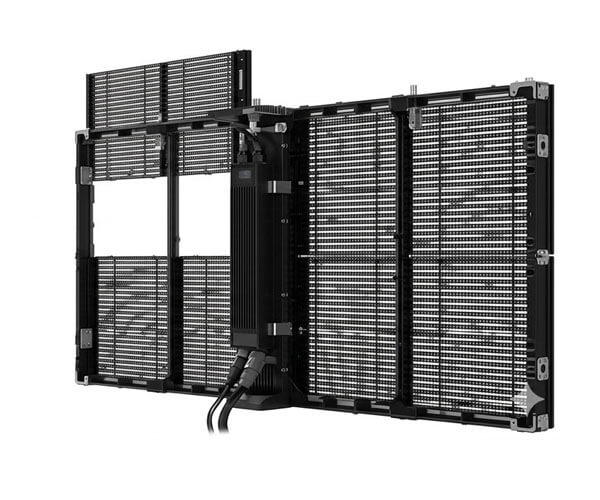

Magnetic Design:
Each module features built-in magnets for a secure fit and effortless removal.
No Bulky Tools:
Forget expensive specialized equipment. All you need is a small screwdriver to gently pop the module out.
60-Second Swap:
A single technician can replace an LED strip from the front in under a minute—no downtime, no hassle.
Zero Disturbance:
Swap modules without dismantling the frame or touching the rest of the installation.
Discover Yuanlv's lightweight indoor transparent LED screens: 6 kg/m², 8 mm thin and easy to install, ideal for retail windows, showrooms and glass partitions.
01
Display promotional content while keeping products and the store interior visible through the glass.
02
Install the display on glass walls or partitions for corporate communications, digital signage, or directional information without closing off the surrounding space.
03
A lightweight, low-noise display option for exhibition booths where visitors view the screen at close range and installation space is limited.
04
Display supplementary information, graphics, or exhibit descriptions while keeping the artwork or objects behind the screen visible.
| Parameter | PH3 | PH2.97 | PH3.91 | PH10.4 |
|---|---|---|---|---|
| Pixel pitch (mm) | 3.125 × 3.125 | 2.97–6.25 | 3.91–7.82 | 10.4 |
| Pixel density (dots/m²) | 102,400 | 53,760 | 32,768 | 9,216 |
| Cabinet size (mm) | 1000 × 1000 | |||
| Best viewing distance (m) | 5–150 | 8–150 | 12–150 | 15–150 |
| Transparency | 45% | 50% | 45% | 50% |
| Weight (kg/m²) | 6 | |||
| Viewing angle | 160° | |||
| Screen thickness (mm) | 8 | |||
| Avg. power (W/m²) | ≤120 | ≤200 | ≤240 | ≤240 |
| Max. power (W/m²) | ≤400 | ≤600 | ≤800 | ≤800 |
| Refresh rate (Hz) | ≥3840 | |||
| White balance brightness (nits) | ≥2000 | ≥3000 | ≥4500 | ≥5000 |
| Operating temperature | −20 to 55 °C | |||
| Drive mode | 1/8 scan | 1/4 scan | 1/8 scan | 1/4 scan |
| MTBF (h) | ≥6,500 | |||
| Lifespan (h) | 100,000 | |||
| IP rating | IP43 | |||
| Maintenance | Front / Rear | |||
| Installation method | Ground-mounted / Hanging | |||
| Certification | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||
A: Not completely. With 45–50% transparency, the screen keeps the view through the glass and lets natural light into the store, while showing bright content at 2,000–5,000 nits.
A: Absolutely. As a direct manufacturer, we provide customized transparent LED solutions tailored to your specific architectural dimensions.
A: Yes. We use high-refresh-rate driver ICs (3840Hz+) to ensure your store looks perfect in every customer's social media post.
