A government and cultural assembly hall in a high-altitude region of China needed an indoor LED display that could hold up to thinner air, wide daily temperature swings, and a traditional interior the client didn't want the screen to disrupt. This P2 indoor LED display high altitude installation ended up changing a few things in the engineering we wouldn't normally think twice about at sea level.
Pixel Pitch: P2
Screen Size: 4.25m (W) × 2.97m (H)
Screen Area: ≈12.62m²
Installation Type: Wall-mounted, flush-integrated into a decorative interior
Location: High-altitude region, China
Application: Assembly hall/conference presentation display
Most indoor LED projects never have to think about air density. Up at elevation, the air is thinner, so there's less convective cooling moving heat away from the cabinet and driver ICs than the same display would get at a lower-elevation site — even indoors, even with climate control. The actual effect depends on altitude, ambient temperature, airflow, and cabinet design — not something to assume away, but not an automatic dealbreaker either.
For this indoor fixed LED display assembly hall build, we planned the module layout and ventilation path around that from the start, rather than finding out after the fact that the thermal margin was tighter than it looked on paper.
Assembly halls have audience seating set back from the front wall, but people still need to read presentation slides and video content clearly. P2 indoor fixed LED display sits in the range that handles that well — sharp enough for detailed content, without paying for a pitch built for close-up viewing nobody in the room actually needs. This P2 pixel pitch LED video wall choice came down to matching the pitch to how the room is actually used, not just picking the finest option available. For how we walk through this kind of pixel pitch decision in more detail, see our indoor fixed LED display buying guide.

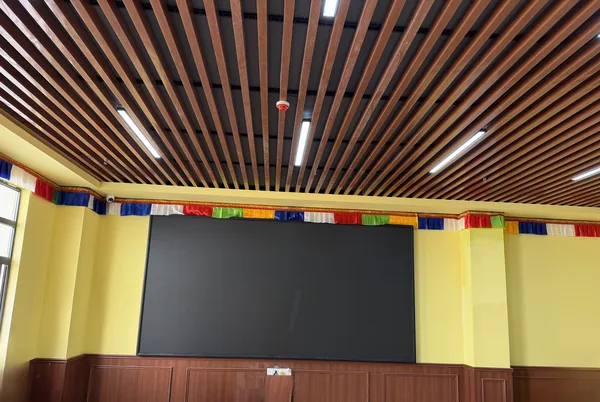

The hall's existing interior runs a wood-slat ceiling and traditional textile bunting along the upper wall — the kind of detail a standard black-bezel display usually just interrupts. Instead of forcing a standard rectangular cutout, the installation team worked around what was already there, keeping the screen's edges aligned with the room's existing trim and paneling. This kind of led video wall traditional interior integration work is half design coordination, half mounting engineering — the structure has to respect a room that was built before the screen was ever part of the plan. For another close-viewing indoor installation where fit and finish mattered just as much as the hardware, see our school cafeteria case study.

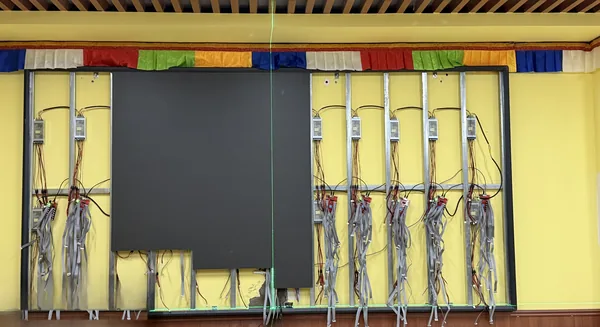

Before any LED modules went up, the team anchored a steel sub-frame to the wall structure and ran and terminated power and signal cabling at each mounting point. This steel frame led display mounting conference hall sequence — frame first, wiring second, modules last — kept the install predictable and cut down on rework once the display face actually went on.
Remote sites can also have different power infrastructure than a display running in a major metro area — that's more a function of location than altitude itself. Planning for indoor LED display power stability high altitude projects meant specifying power distribution and surge protection with that in mind, rather than assuming the same clean, consistent supply a well-connected urban install could take for granted.

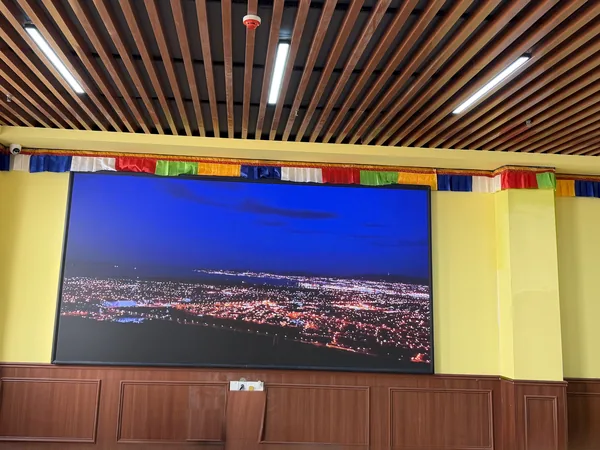

The finished 4.25m × 2.97m P2 display runs presentation and informational content for the hall, sitting flush within the existing wood and textile trim rather than reading as an obvious retrofit. Because the thermal and power planning got addressed during design rather than after installation, the system didn't need rework once it was running.
For the broader principles behind indoor fixed LED selection — pixel pitch, cabinet material, and installation planning — see our complete guide to fixed LED displays.
Altitude, remote power infrastructure, and existing architecture all change how an indoor LED display should be specified — not just pixel pitch. Share your site conditions and our engineering team can help plan around them.
