YL-0014
Yuanlv
8531200000
For outdoor advertising signs, brightness is only part of the requirement. A good LED module also needs to maintain stable performance through long operating hours, temperature changes, rain, dust, and repeated maintenance.

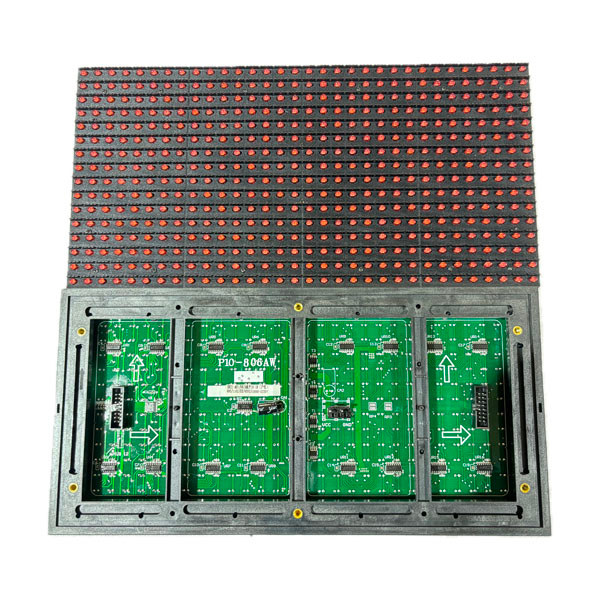

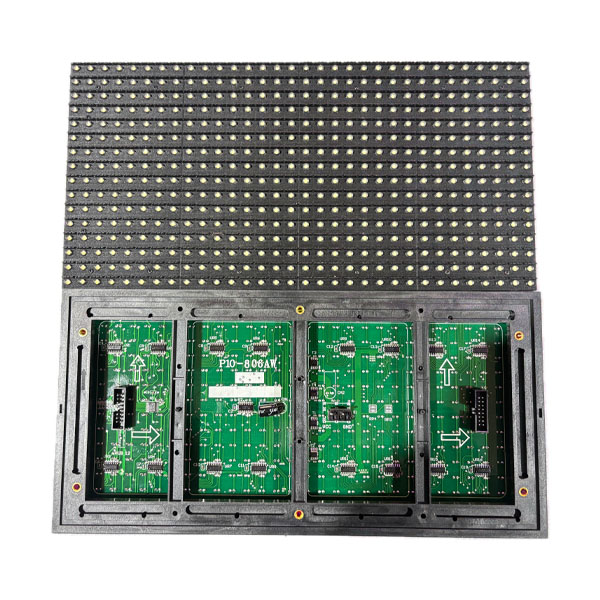

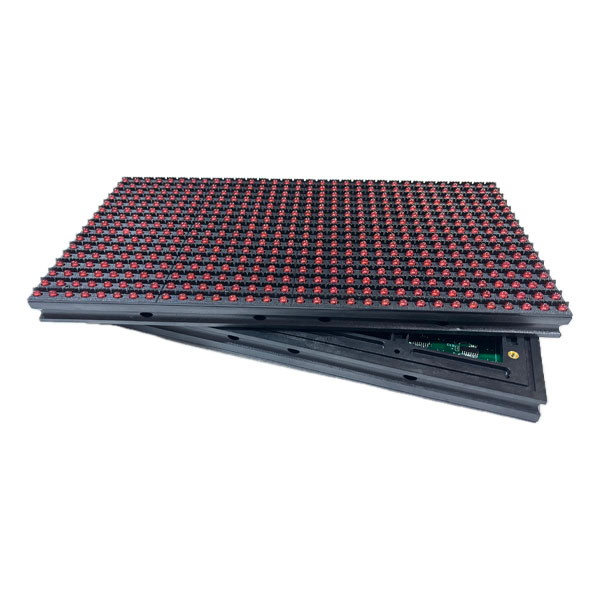

Our P10 DIP single color LED modules are designed for outdoor LED signs, information displays, price boards, and large-format advertising applications where long viewing distance, clear text, and reliable operation are more important than fine pixel pitch.
Using traditional DIP LED technology, the module provides strong outdoor visibility and a straightforward modular structure that makes installation and replacement easier for sign manufacturers and maintenance teams.
 |  |  |
Parameter | Specification |
|---|---|
Product Type | DIP Single Color LED Module |
Pixel Pitch | P10 |
LED Type | DIP |
Pixel Density | 10,000 dots/m² |
Module Size | 320 × 160 mm |
Protection | IP65 |
Operating Voltage | DC 5V |
Working Temperature | -20°C ~ 60°C |
Expected Lifespan | 50,000+ hours |
Available Colors | Red / Green / Blue / White / Yellow |
Application | Outdoor LED Signs and Advertising Displays |
Specifications may vary according to LED configuration and customized requirements.
DIP and SMD are not simply two versions of the same LED module. They are suited to different project requirements.
For large outdoor signs where the audience is viewing the display from several meters away, DIP technology remains a practical choice because of its strong luminous output, straightforward construction, and proven outdoor application history.
P10 pixel pitch is suitable for applications where viewers are not standing directly in front of the screen.
The relatively large pixel spacing allows the display to produce clear numbers, letters, logos, and simple graphics without requiring the additional pixel density of fine-pitch modules.
Typical applications include:
Gas station price displays | outdoor commercial signs | Highway information boards |
Building-mounted advertising | Industrial and public information displays | Roadside advertising signs |
Outdoor LED modules face conditions that indoor displays simply do not encounter.
Rain, dust, temperature fluctuations and continuous operation can gradually affect LED brightness and electronic components. For this reason, the module structure, sealing and component selection all matter during long-term deployment.
Our outdoor DIP modules are designed around these practical requirements.
The module housing is designed to help protect the internal components against water and dust ingress when properly installed as part of a complete outdoor LED display.
The module is designed for operation from approximately -20°C to 60°C, making it suitable for a wide range of outdoor environments.
Single-color applications place particular emphasis on consistent brightness across the entire sign.
For large installations, consistent LED performance helps reduce visible differences between modules and simplifies replacement during future maintenance.
One advantage of a single-color LED display is its relatively straightforward system architecture.
For sign manufacturers and maintenance teams, this can make troubleshooting and module replacement more manageable.
If an individual module develops a fault, the affected section can be removed and replaced without rebuilding the entire display.
Individual modules can be replaced when necessary, reducing maintenance work on large outdoor signs.

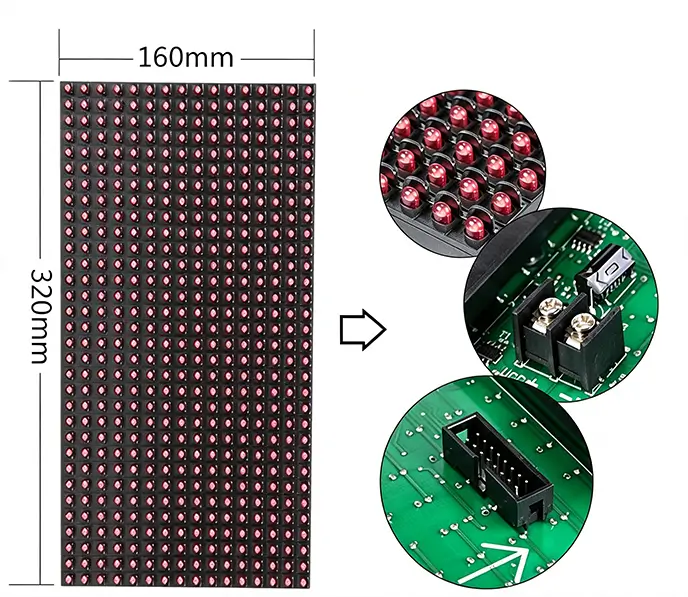

The module uses a straightforward power and signal connection design, helping installers identify and connect modules during display assembly.
Modules can be arranged into larger display surfaces according to the required sign dimensions.
This makes the same module platform suitable for both relatively small commercial signs and larger outdoor information boards.
Different signage projects require different visual effects.

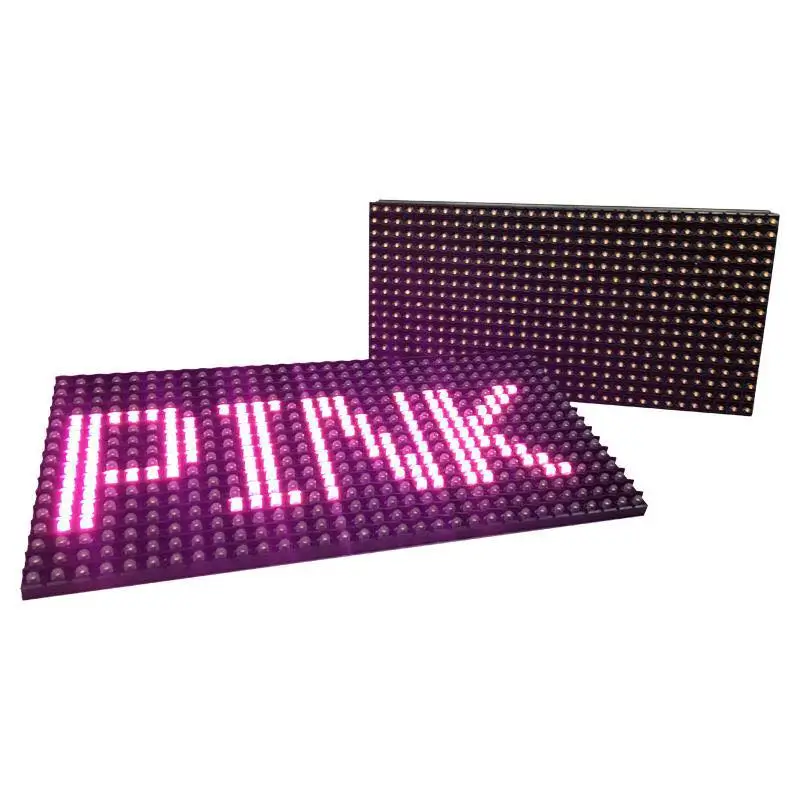

Our DIP LED modules are available in multiple colors, including:

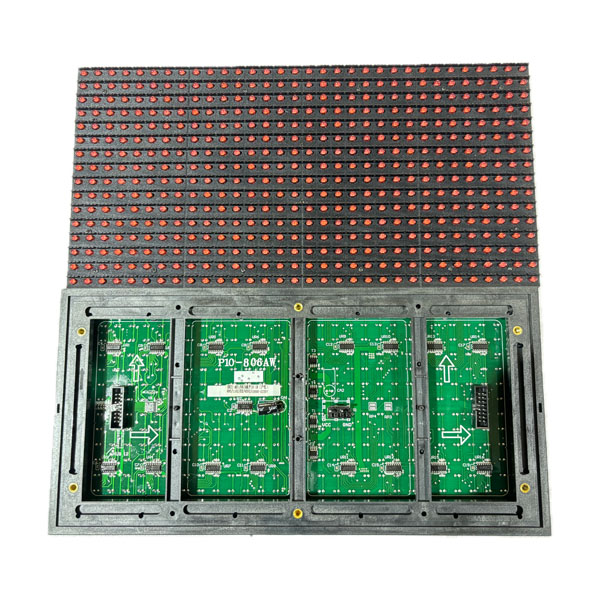

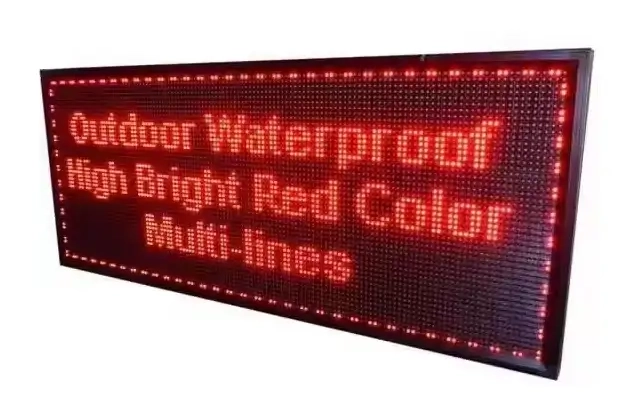

Red Color LED Module:Price displays / Gas station signage / Traffic-related information / Promotional messages / Warning and notification displays.

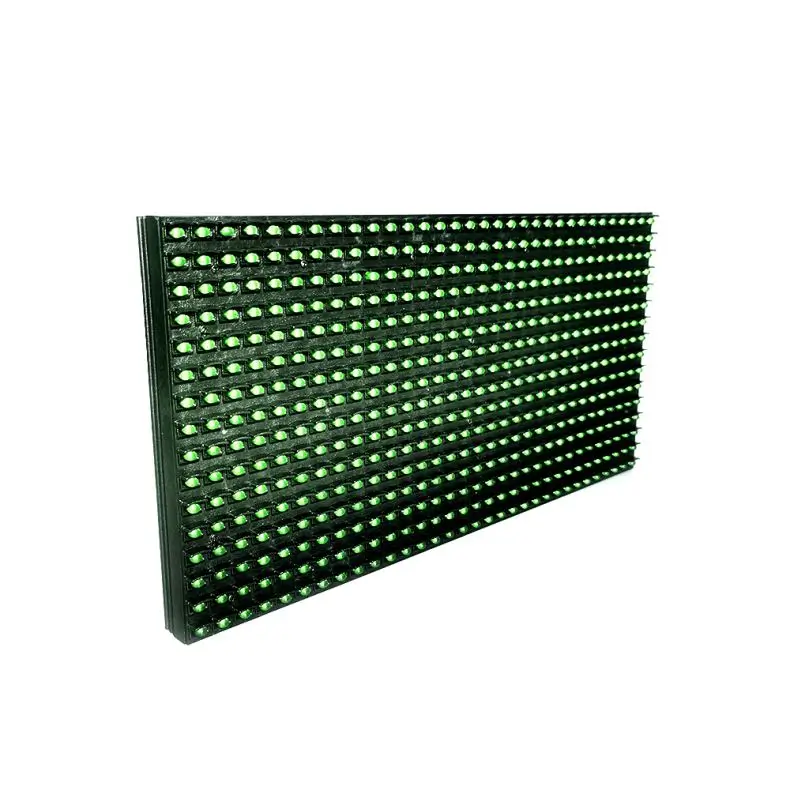

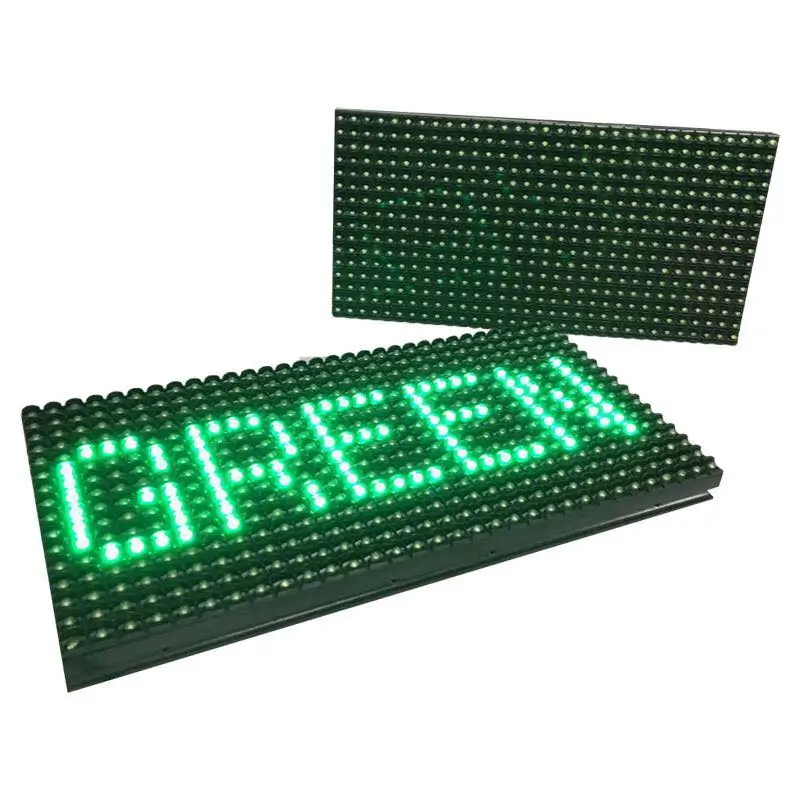

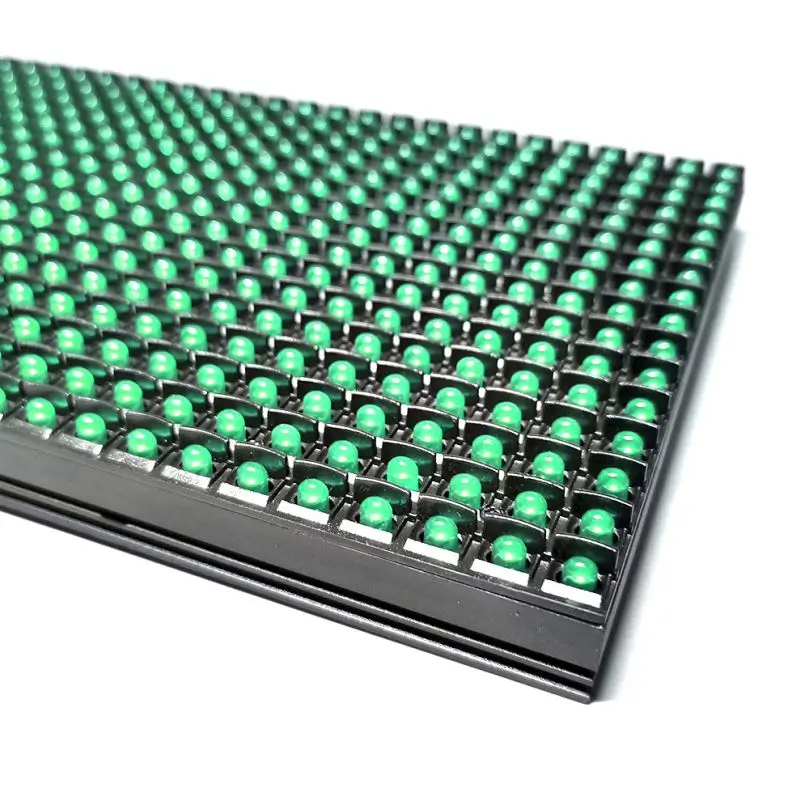

Green Color LED Module:Directional information / Public information displays / Commercial signage / Transportation applications.

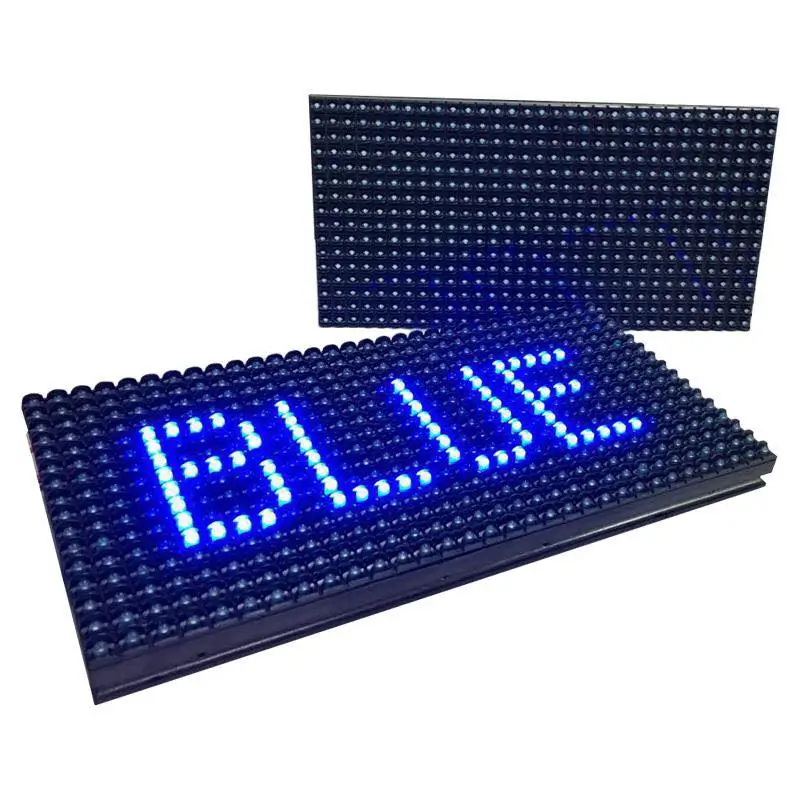

Blue Color LED Module: Brand signage / Decorative displays / Information boards / Special-purpose outdoor displays.

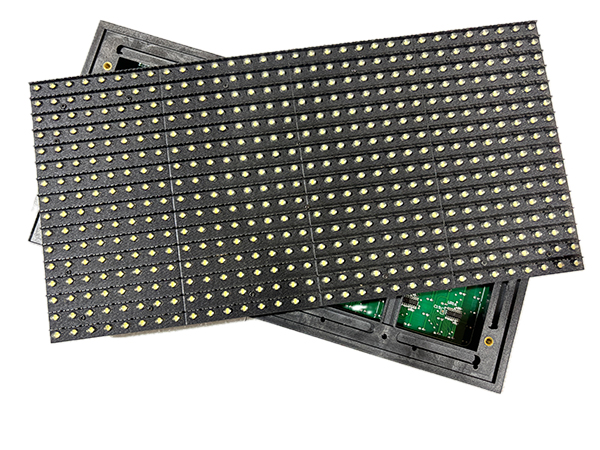

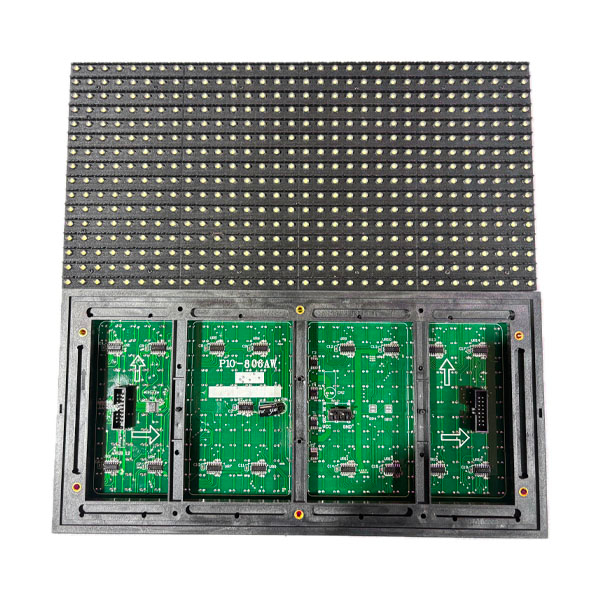

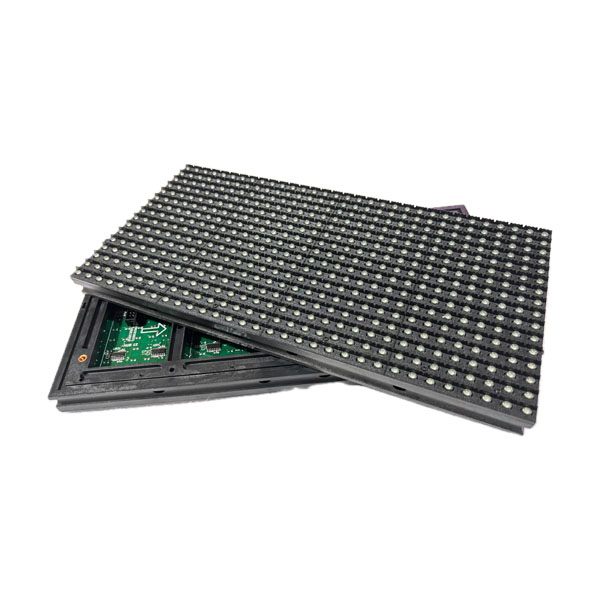

White & Yellow Color LED Module: Suitable for projects requiring higher visual contrast or a specific brand/signage appearance.
Color availability can be confirmed according to the required LED configuration and order quantity.
The right LED technology depends on the application rather than simply choosing the newest technology.
Feature | DIP LED Module | SMD LED Module |
|---|---|---|
 |  | |
Typical Application | Outdoor signs & long-distance displays | Indoor & outdoor full-color displays |
Viewing Distance | Medium to long | Short to medium |
Single-Color Signage | Excellent fit | Available |
Outdoor Visibility | Strong | Strong |
Pixel Pitch | Usually larger | Wide range |
Module Structure | Simple and robust | More compact |
Best For | Text, numbers, advertising signs | Images, video & fine graphics |
For large outdoor signs where viewing distance is relatively long and content consists mainly of text, numbers or simple graphics, DIP can still be a very practical solution.
For high-resolution full-color video applications, an SMD LED display may be more appropriate.

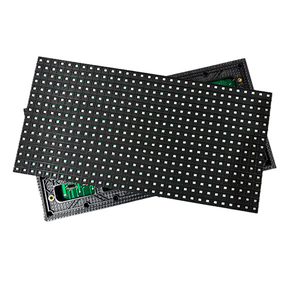

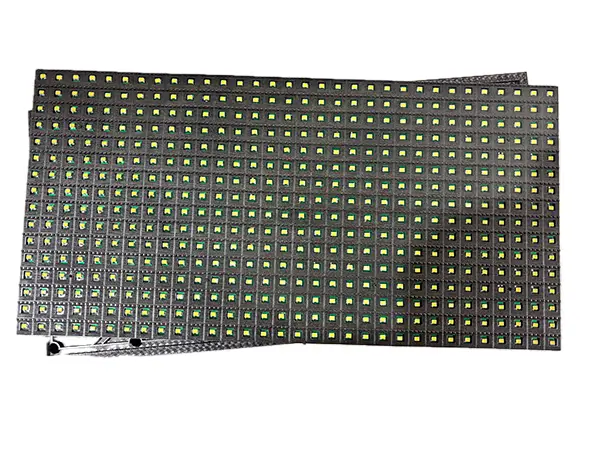

Looking for finer pixel pitch or indoor applications? See our [SMD Single Color LED Module] page for specs and pricing.
Used for large-format commercial signs where clear visibility is required from roads, parking areas and surrounding streets.
The high visibility of single-color DIP LEDs makes them suitable for fuel price and promotional information displays.
P10 DIP modules can be used for large signs viewed from longer distances.
Suitable for company names, promotional messages, opening hours and other outdoor information.
Single-color LED technology can provide a simple and highly visible way to communicate numbers, messages and status information.
A module may look simple from the outside, but consistency becomes increasingly important when producing hundreds or thousands of pieces for one project.

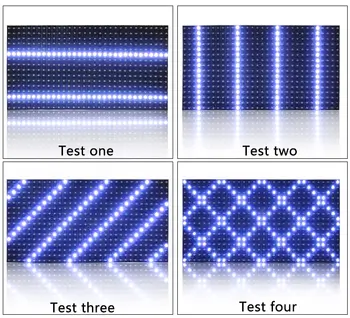

During production, we pay particular attention to LED consistency, soldering quality, module assembly, wiring, brightness uniformity and aging performance.
Before shipment, production batches are inspected and tested to reduce the possibility of inconsistent brightness or early module failure after installation.
|  |
For larger projects, production and packaging can also be arranged according to the customer's installation and replacement requirements.
Different sign projects rarely use exactly the same configuration.
Depending on project requirements, we can discuss customization of: LED color,module dimension,pixel pitch,brightness,cable length and so on.
If you are replacing an existing DIP module, providing the original module dimensions and photos can help our engineers confirm compatibility before production.
A DIP LED module uses individually packaged LED components mounted through the PCB. DIP technology has been widely used in outdoor LED displays and signage because of its strong outdoor visibility and straightforward construction.
Yes. DIP is particularly suitable for outdoor signage applications where the display is viewed from a relatively long distance and the content mainly consists of text, numbers, logos or simple graphics.
DIP and SMD use different LED packaging technologies. DIP is commonly selected for large outdoor signage and long-distance viewing, while SMD offers greater flexibility for fine-pitch and full-color applications.
Yes. Red, green, blue, white and yellow configurations can be discussed according to the project requirements.
Yes. Sample orders can be arranged so buyers can check module dimensions, brightness, color and compatibility with their existing display before moving to larger quantities.
Yes. For OEM and project orders, customization may include module dimensions, LED configuration, cable length, connectors and packaging.
Start with your required viewing distance, display content, screen size, and outdoor environment — these determine pixel pitch and module configuration for a new project. If you're replacing an existing module on a display that's already installed, sending us photos and dimensions of the current setup is usually the fastest way for our engineers to confirm compatibility.
If you are sourcing DIP single-color LED modules for an existing sign or a new outdoor LED project, send us your required module size, LED color, pixel pitch and quantity.
Our engineering team can check the configuration and recommend a suitable module for your application.
