YL-0008
Yuanlv LED Display
YL-0008
Designed for tight-radius curved LED installations where conventional LED modules cannot meet structural requirements.

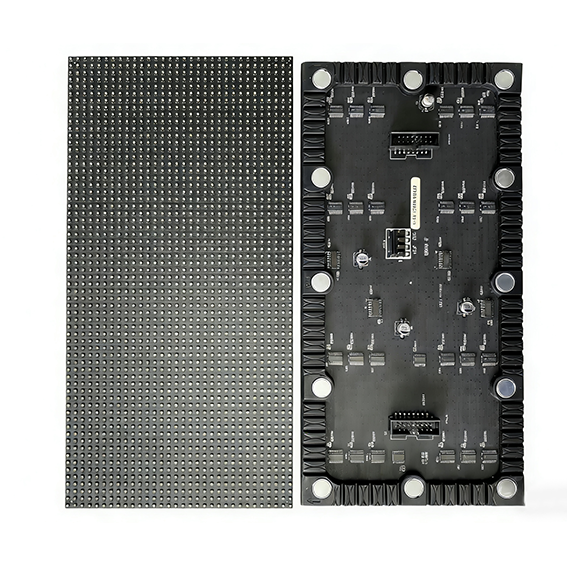

Built with an optimized 256mm × 128mm module structure, high-strength soft PCB, reinforced silicone base, and magnetic front-access design, it delivers reliable performance for curved walls, cylindrical pillars, wave-shaped surfaces, and customized architectural displays.
Designed with a 200mm minimum bending radius, this flexible LED module maintains stable signal transmission and uniform image quality even on tight-radius curved structures.
Ideal Applications:
Smoother Curves & Engineering-Friendly Design
Unlike standard flexible modules on the market that use larger 320×160mm dimensions—which often create visible polygon facets on tight curves—our specialized 256mm × 128mm size (2:1 aspect ratio) provides a distinct engineering edge:
Smoother Surface Aesthetics
The narrower horizontal span minimizes geometric polygon artifacts on tight-radius pillars and S-shaped walls.
Engineering-Friendly Modular Layout
Designed with a standard 2:1 aspect ratio, the 256mm × 128mm module streamlines project planning and engineering calculations for:
Reduced Design Complexity
Speeds up overall engineering planning and shortens project design cycles for customized curved LED installations.

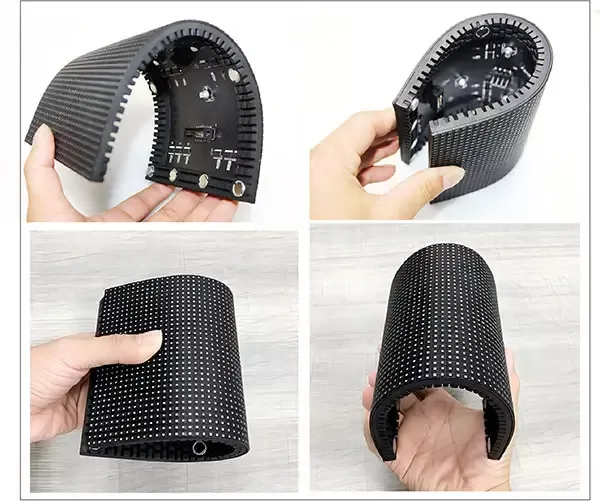

Flex Without Signal Loss or Pixel Cracking.

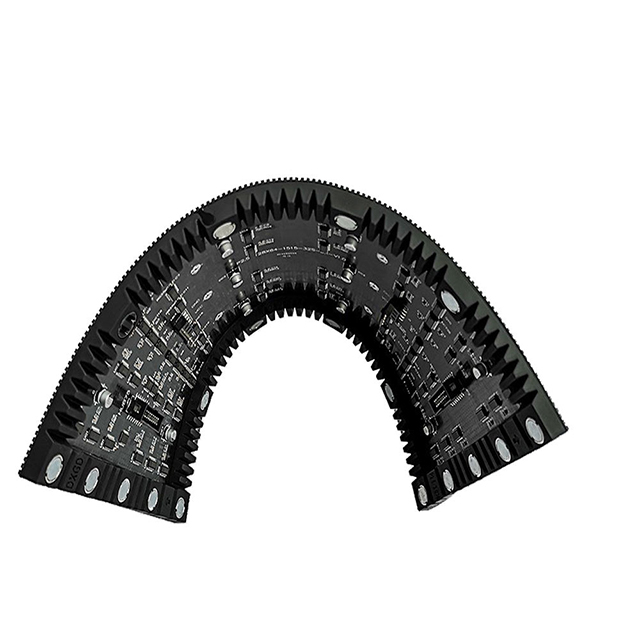

Unlike semi-flexible boards that suffer from PCB damage, pixel distortion, or signal instability under flexural stress, our P4 module uses a high-tensile soft PCB combined with an industrial-grade silicone base to ensure:
Fast Assembly Without Structural Disassembly: Integrated with 16 high-strength neodymium magnets per module, each panel snaps precisely onto curved metal framing.
Sub-millimeter Positioning: Minimizes visible seams on circular and curved LED installations.
Rapid Deployment: Reduces labor time and installation costs for both permanent and rental projects.

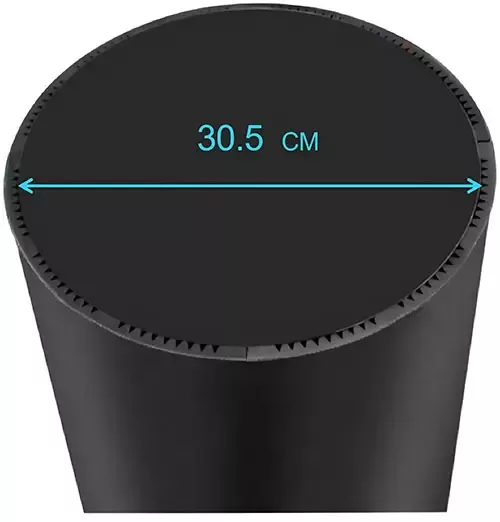

Cylindrical installation

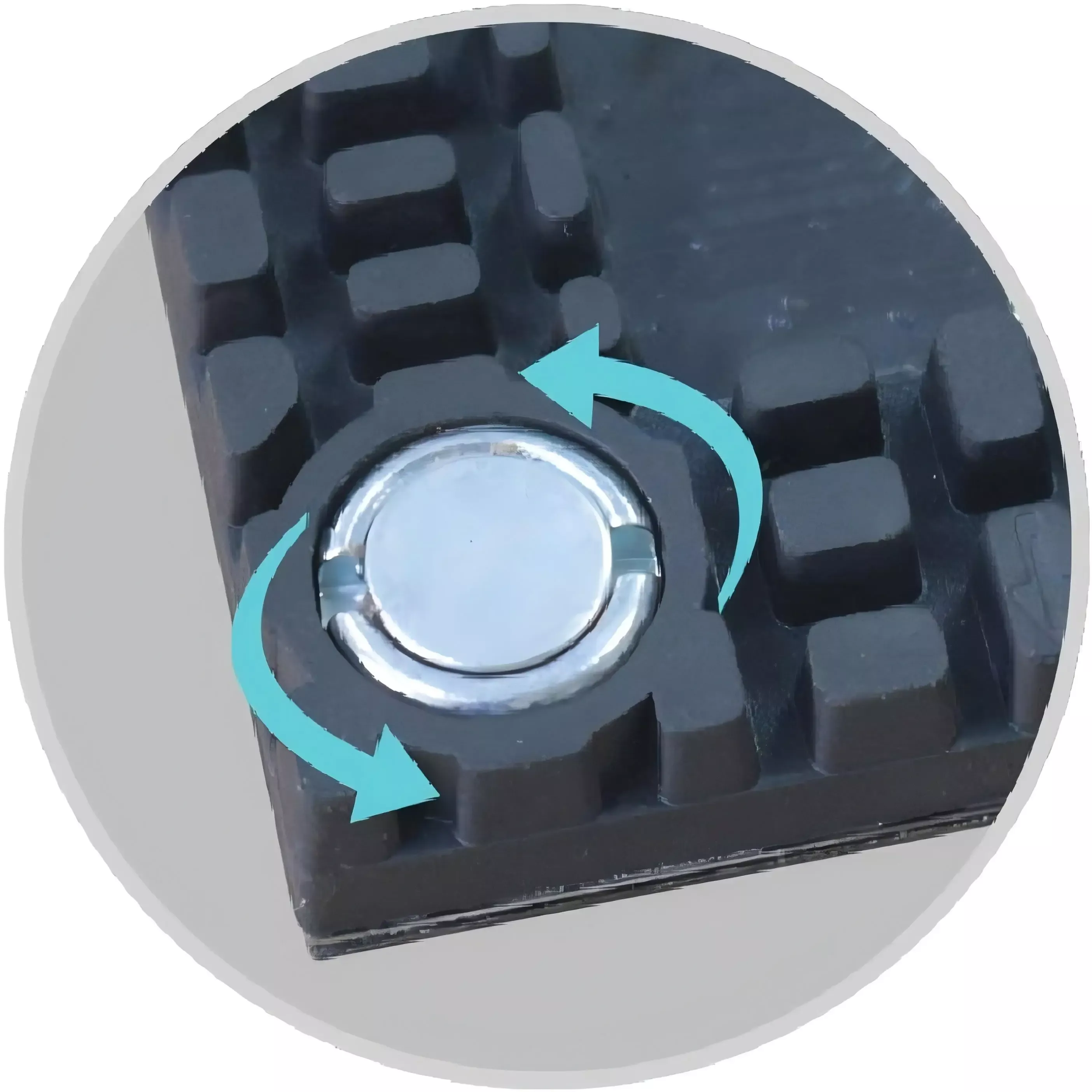

Magnetics

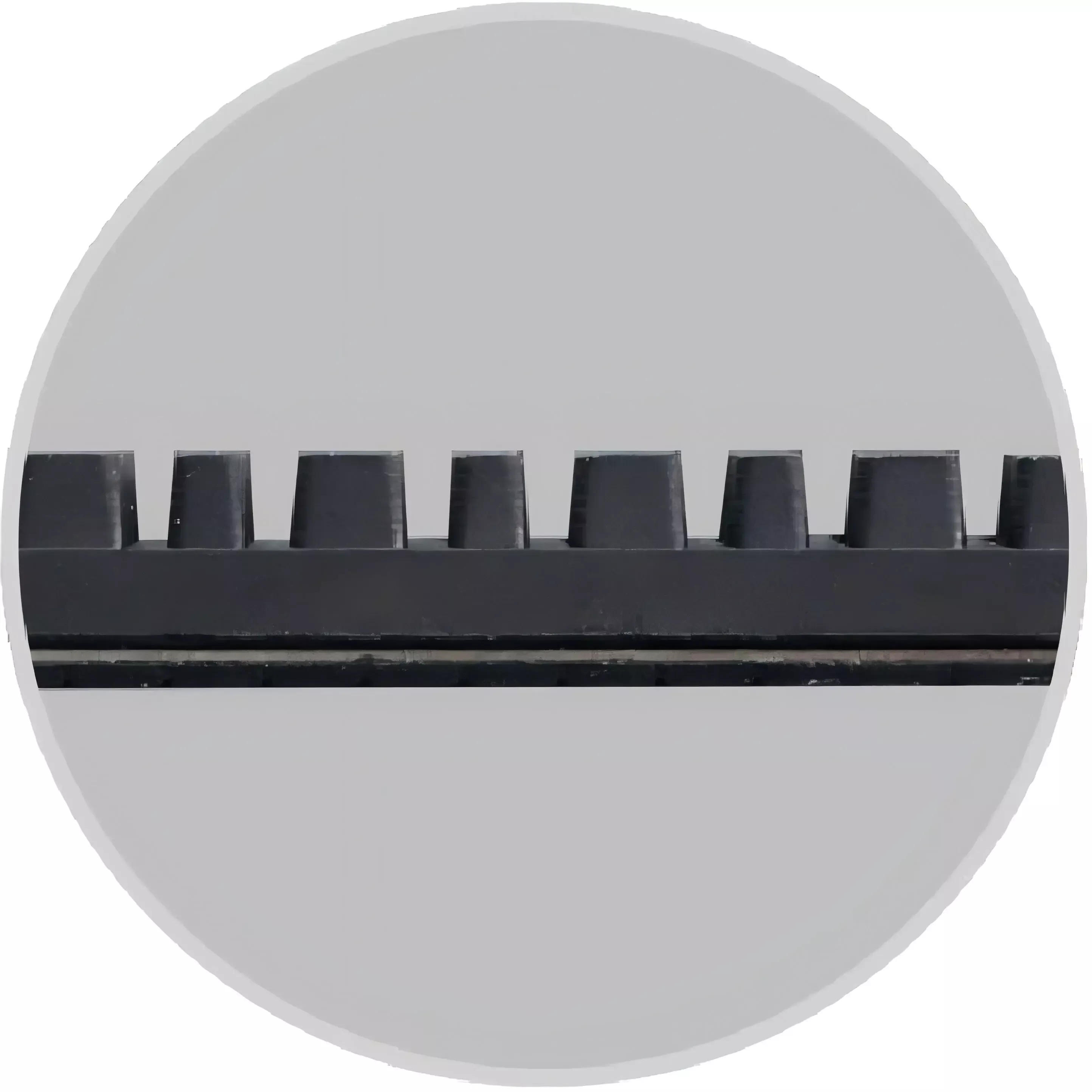

Silicone bottom shell

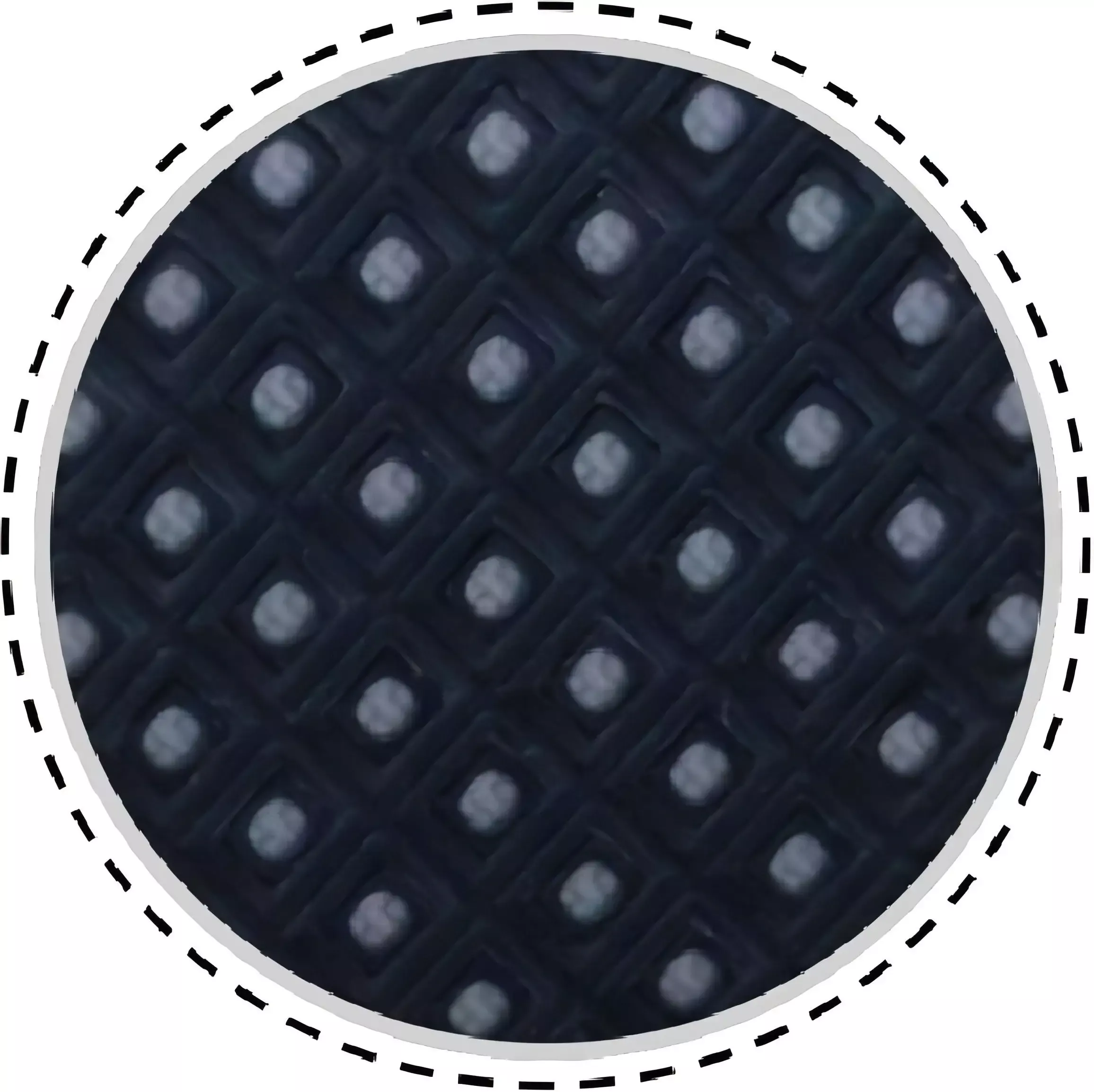

Optional GOB processing
Camera-Friendly & Flicker-Free Display
Equipped with high-performance SMD2020 LEDs and advanced driver ICs (MBI5124 / ICN2153), the module supports a 3840Hz refresh rate, providing stable image performance for professional filming, retail content creation, and broadcast environments.
The high refresh rate reduces camera scan lines and motion blur, ensuring smooth playback and consistent visual quality during dynamic scenes.
Accurate Colors & Fine Details
Advanced 16-bit grayscale processing maintains smooth color transitions and rich shadow detail even when dimming brightness for indoor commercial environments.
Individual modules can be replaced within seconds.
Service technicians can rapidly extract and swap individual modules from the front using a vacuum tool—no need to dismantle the heavy rear support frame or adjacent modules.

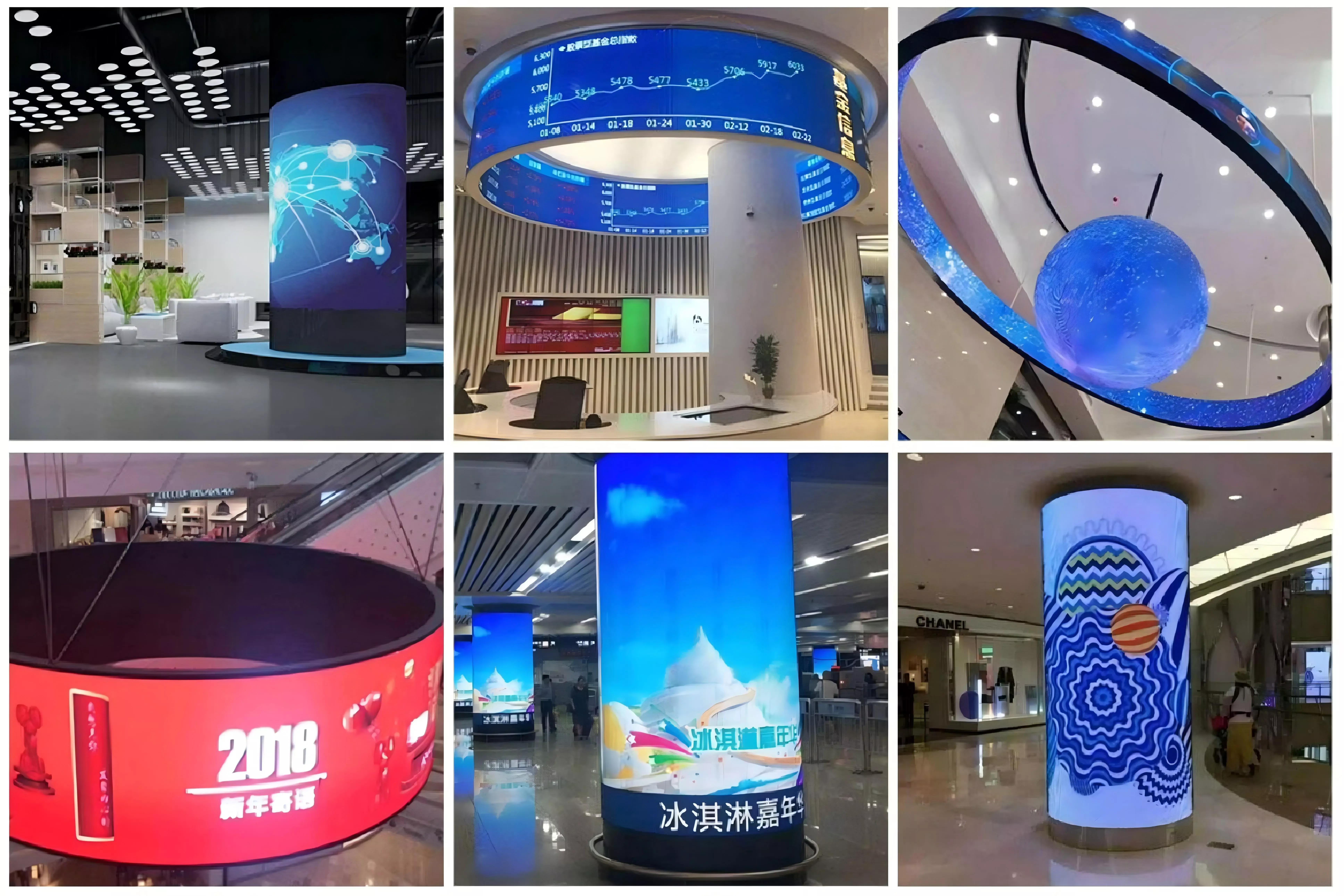

Curved video walls eliminate visual breaks, enhancing multi-data visualization and collaborative decision-making in monitoring centers.
Transform structural pillars and tight corners into high-impact digital canvases that capture shopper attention and elevate brand identity.
Deliver crisp, flicker-free background visuals for virtual production stages, TV newsrooms, and commercial studio backdrops. See when a flexible LED display makes sense for a curved stage.
Craft unique wave-shaped screens and 360° circular kiosks that engage visitors with interactive digital storytelling.
Browse our LED display project case studies to see finished installations.
| Pixel Pitch | P4 |
| LED Type | SMD2020 |
| Physical Density (dots/m²) | 62500 |
| Module Resolution | 64×32 |
| Module Size (W×H) | 256×128mm |
| Cabinet Size (mm) | 1024×768 |
| Cabinet Materials | Iron |
| Brightness (nits) | 700 |
| Color Temperature (K) | 5000–12000 Optional |
| Viewing Angle (V/H) | 160°/160° |
| Viewing Distance | 1.25–50m |
| Contrast Ratio | 10000:1 |
| Frame Frequency (Hz) | 50/60 |
| Scan Mode | 1/16 Scan |
| Grey Level | 16 bit |
| Refresh Rate (Hz) | 3840 |
| Max Power Consumption (W/m²) | 600 |
| Avg. Power Consumption (W/m²) | 80–150 |
| Protection Grade | IP31 |
| Input Power | AC 90–264V, 47–63Hz |
| Working Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% |
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% |
| Certifications | CCC / CE / RoHS / FCC / CB / TUV / IEC |
A: The narrower 256mm width creates smoother curve transitions with fewer visible polygon angles when wrapping narrow pillars or tight S-curves. It also simplifies CAD perimeter calculations for custom circular structures.
A: The minimum bending radius is 200mm, allowing installation on cylindrical structures from about 400mm (40 cm) in diameter, depending on mechanical design, without risking pixel damage or signal loss.
A: Thanks to the magnetic front-access design, individual modules can be extracted in seconds using a magnetic or vacuum tool without disturbing the surrounding frame or structural backplate.
A: Yes. Driven by a high 3840Hz refresh rate, the display eliminates scan lines and screen flickering when captured by smartphones or professional filming gear.
Need a different module size? See our 320×160mm indoor flexible LED display for larger curved walls, or the 240×120mm flexible LED display for finer layout control.
Get:
CAD structure evaluation
Module quantity calculation
Customized quotation
Technical support
