YL-0006
Yuanlv
8531200000
Energy Saving | Front Maintenance | Ultra Slim Cabinet | IP65 Protection | Easy Module Replacement | Building Facade Installation

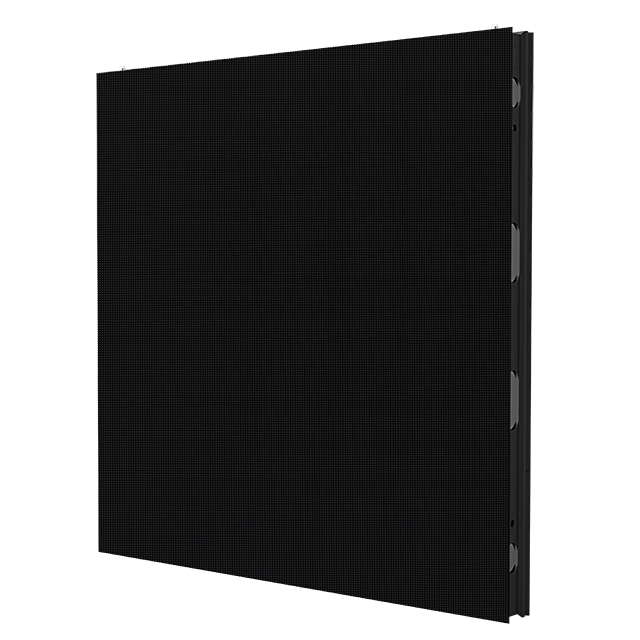

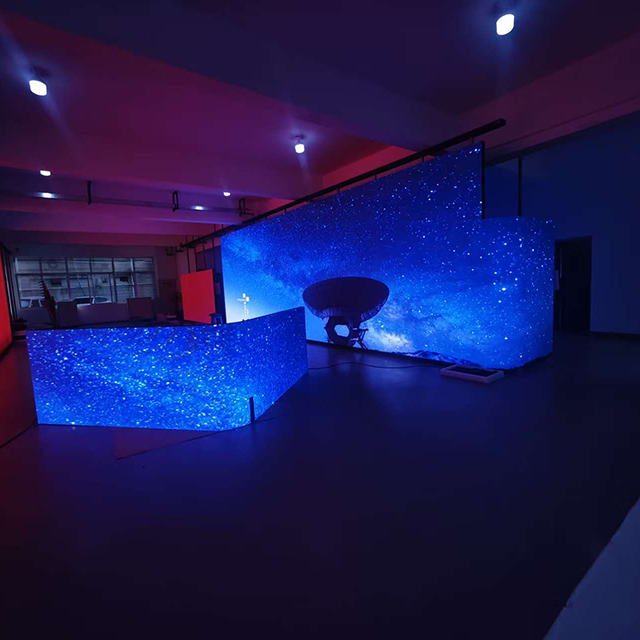

Eliminate the need for rear maintenance space and bulky service walkways. Our front-access engineering allows modules and key components to be replaced directly from the front using professional maintenance tools without removing the cabinet structure, making it ideal for wall-mounted and space-limited outdoor installations.
Zero-Clearance Wall Installation: Designed for building facades and narrow installation environments where traditional rear maintenance is impossible.
Rapid Front Module Replacement: Rapid-release mechanisms ensure that technical issues can be resolved in minutes, minimizing downtime for high-traffic advertising.
| Comparison Item | Standard Rear-Service LED Screen | Our Front-Service Outdoor LED Display |
|---|---|---|
| Rear Maintenance Space | Requires rear service channel | 0cm rear space required |
| Installation Structure | Additional steel structure required | Simplified mounting structure |
| Maintenance Method | Access from the rear | Direct front module replacement |
| Suitable Locations | Open structures and standalone signs | Building facades and space-limited installations |

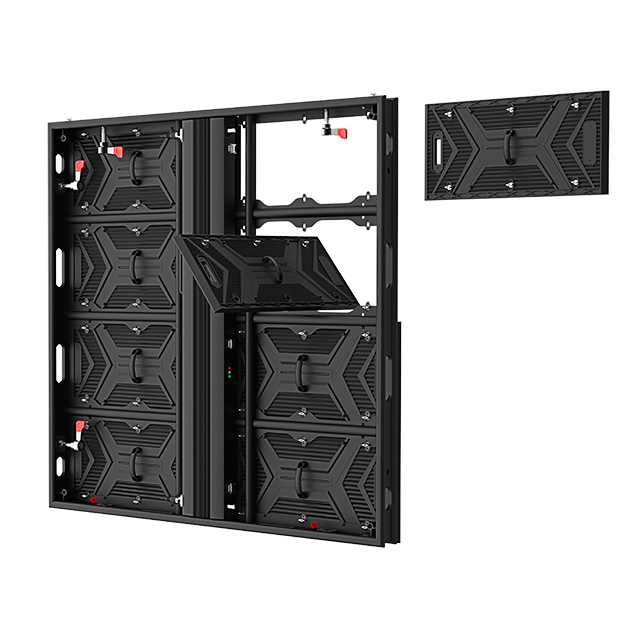

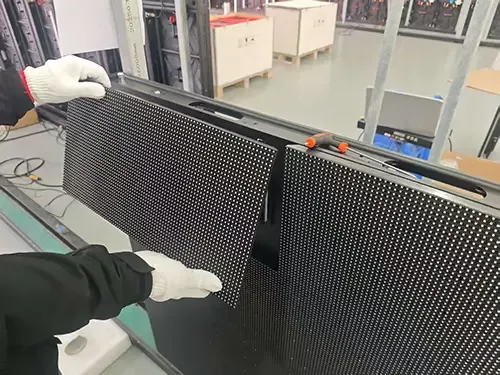

Technicians can quickly remove and replace individual LED modules from the front using specialized vacuum tools or front-locking mechanisms, reducing maintenance time and improving service efficiency.
Smart Photometric Sensors: Automatically adjusts brightness between day and night to optimize visual impact and reduce light pollution.
160° Ultra-Wide View: Specialized mask design ensures color consistency and zero brightness attenuation, even when viewed from extreme side angles at street level.

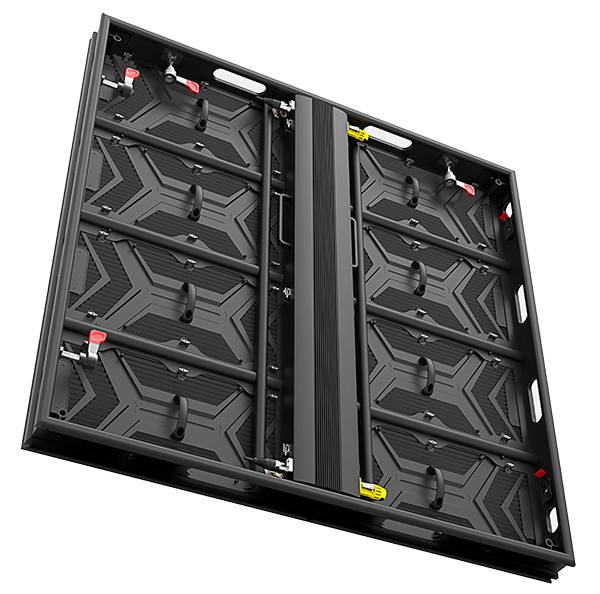

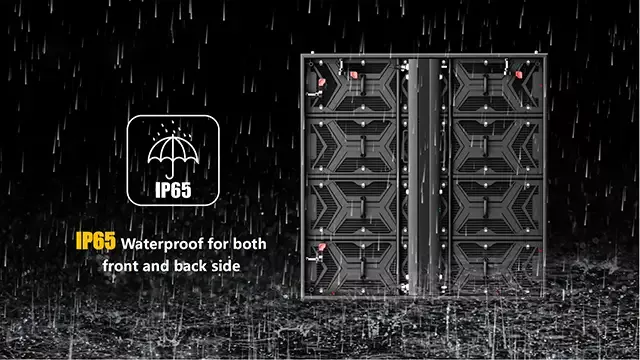

The sealed front-service cabinet structure protects internal components from rain, dust and humidity while maintaining convenient front access for maintenance.
Corrosion-Resistant Aluminum: The 1000x1000mm and 1000x500mm cabinet is built from high-grade aluminum alloy, making it 35% lighter than steel alternatives while offering superior heat dissipation and rust resistance in coastal environments.
Pixel Pitch | P4 | P5 | P5.71 | P6.66 | P8 | P10 |
LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
Physical Density(dots/㎡) | 62500 | 40000 | 30625 | 22500 | 15625 | 10000 |
Module Resolution | 120x80 | 96X64 | 84x56 | 72x48 | 60x40 | 48x32 |
Module Size(mm) | 480x320 | |||||
Cabinet Size(mm) | 960x960/1280 Slim Front-Service Cabinet | |||||
Cabinet Resolution | 240x240 | 192x192 | 168x168 | 144x144 | 120x120 | 96x96 |
Module Quantity(WxH) | 2x4 | 2x4 | 2x4 | 2x4 | 2x4 | 2x3 |
Cabinet Weight(KG) | 21 | |||||
Maintenance Mode | Front Maintenance | |||||
Cabinet Material | Aluminum | |||||
Brightness(Nits) | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥6000 |
Color temperature(K) | 5000-12000 Optional | |||||
Viewing Angle(H/V) | 140°/160° | |||||
Best Viewing Distance | 3-100m | 4-100m | 4-100m | 4-100m | 4-100m | 10-200m |
Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 5000:1 |
Gray Scale Refresh Rate(Hz) | 50/60 | |||||
Driving Mode | 1/8 Scan | 1/8 Scan | 1/7Scan | 1/6Scan | 1/4Scan | 1/2Scan |
Gray Levels | 16 Bit | |||||
Refresh Rate(Hz) | 3840 | |||||
Max Power Con.(W/㎡) | 800 | |||||
Avg Power Con.(W/㎡) | 200-300 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
IP Rating | IP 65 | |||||
Power input | AC90-264V,47-63HZ | |||||
Working Temp/Humdity(℃/RH) | -20~60℃/10%-85% | |||||
Storage Temp/Humdity(℃/RH) | -20~60℃/10%-85% | |||||
Certificate | CCC/CE/RoHs/FCC/CB/TUV/IEC | |||||
Pixel Pitch | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Physical Density(dots/㎡) | 112896 | 62236 | 43264 | 25600 | 16384 | 9216 |
Module Resolution | 168x84 | 128x64 | 104x52 | 80x40 | 64x32 | 48x24 |
Module Size(mm) | 500x250mm | |||||
Cabinet Size(mm) | 1000x1000x83(Customized for 1500Width x 500/750Height) | |||||
Cabinet Resolution | 336x336 | 256x256 | 208x208 | 160x160 | 128x128 | 96x96 |
Module Quantity(WxH) | 2 x 4 | |||||
Cabinet Weight(KG) | 22.5 kgs | |||||
Maintenance Mode | Front Maintenance | |||||
Cabinet Material | Aluminum | |||||
Brightness(Nits) | 4500 | 5500-10000 | 5500-10000 | 5500-10000 | 5500-10000 | 5500-10000 |
Color temperature(K) | 5000-12000 | |||||
Viewing Angle(H/V) | 140°/160° | |||||
Best Viewing Distance | 3-100m | 4-100m | 4-100m | 6-150m | 8-150m | 10-200m |
Contrast Ratio | 10000:1 | |||||
Gray Scale Refresh Rate(Hz) | 50/60 | |||||
Driving Mode | 1/21 | 1/16 | 1/13 | 1/8 | 1/4 | 1/2 |
Gray Levels | 16 Bit | |||||
Refresh Rate(Hz) | 3840 Hz | |||||
Max Power Con.(W/㎡) | 650 | |||||
Avg Power Con.(W/㎡) | 100-200 | |||||
IP Rating | IP65 | |||||
Power input | AC90-264V,47-63HZ | |||||
Working Temp/Humdity(℃/RH) | -20~60℃/10%-85% | |||||
Storage Temp/Humdity(℃/RH) | -20~60℃/10%-85% | |||||
Certificate | CCC/CE/RoHs/FCC/CB/TUV/IEC | |||||
What's the difference between this and the standard Outdoor Fixed LED Display?

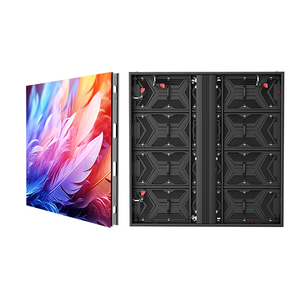

This front-maintenance model is designed for installations with zero rear clearance — building facades, storefronts, walls where there's no space behind the screen for service access. Our standard Outdoor Fixed LED Display supports both front and rear maintenance and is built for freestanding structures like billboards and stadium screens where open space exists behind the display.

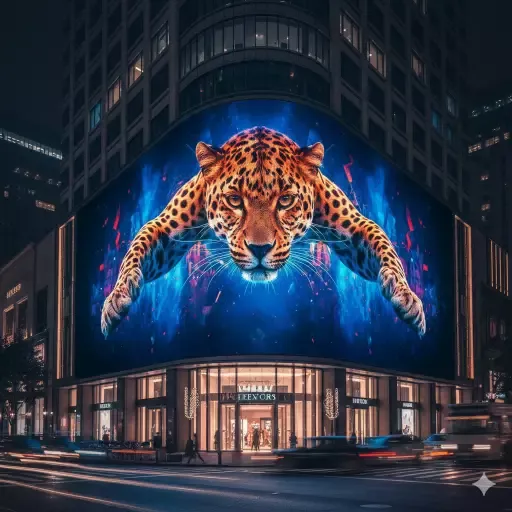

How does the seamless corner design create a 3D effect?
The 90° seamless splicing eliminates the visible gap where two panels meet at a corner, so content can visually "wrap" around the edge without interruption. Combined with high-contrast, deep-black panels, this creates a forced-perspective illusion that makes on-screen objects appear to extend beyond the flat surface — the effect behind viral "Naked-Eye 3D" building displays.
Can this display be mounted directly on an existing wall with no additional structure?

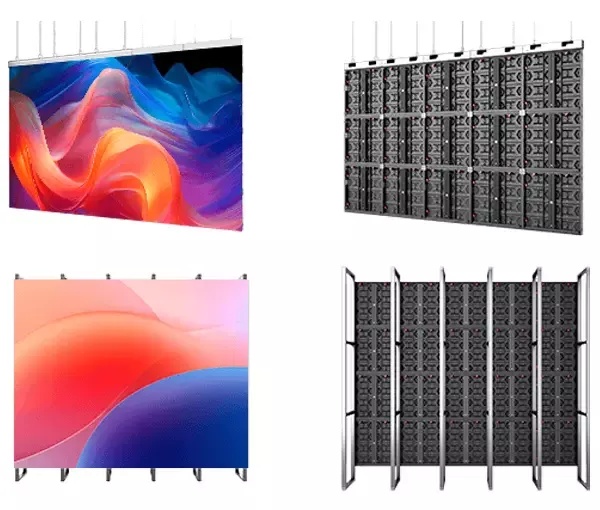

Yes. The front-maintenance design eliminates the need for a rear service corridor or additional steel support structure, so the cabinet can mount directly onto a flat wall or facade surface.
What pixel pitch is recommended for building facade advertising?
For most building facade and storefront applications viewed from street level, P4 to P8 covers typical viewing distances. Finer pitches like P4 suit closer viewing distances, while P8 to P10 work well for larger facades viewed from further away.
