Quick answer: For many church sanctuaries, P2.5–P3.9 is a practical starting range for the main wall, while small chapels and camera-critical rooms may need P1.8 or finer. Choose the pitch from the distance to the front row, then check screen size, brightness, camera use and maintenance access before comparing quotes. Reference budgets run from about $2,500 for a small setup to $100,000+ for a broadcast-focused sanctuary.
Before you ask for a quote, a few decisions will have the biggest effect on cost and long-term use. This church LED display buying guide goes through them in order: budget, screen size, pixel pitch, brightness, camera performance and maintenance. Many churches now put lyrics, scripture, announcements and live feeds on a single wall, which is why church video walls are replacing projectors in many sanctuaries.
Already know your room? Start a layout and quote on our LED display for church page.

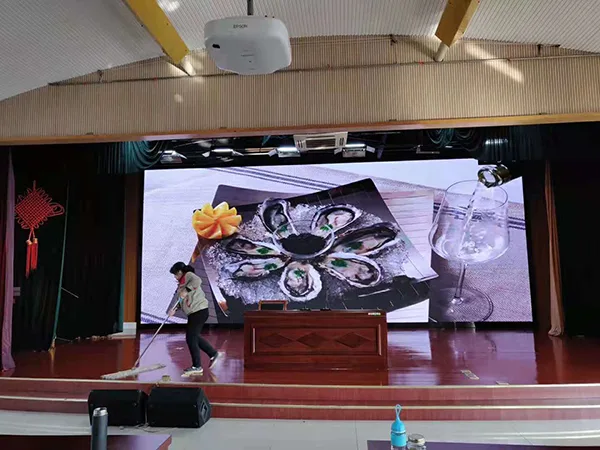

Most of the churches that contact us are replacing a projector, so start there. A projector loses contrast as soon as house lights or daylight reach the screen, which is why the room gets dimmed for the songs. An LED wall stays readable with the lights on, and there are no lamps or filters to replace.
The projector is still cheaper on day one, and in a windowless room that is rarely lit it may remain the sensible choice. The LED wall makes its case through upkeep and through not having to darken the room.
Nothing changes in how you run it. The wall takes a standard HDMI or SDI feed from a computer, media server or camera switcher, so ProPresenter, EasyWorship and PowerPoint work the way they do now.
| Congregation size | Typical setup | Reference budget | Main cost drivers |
|---|---|---|---|
| Under about 150 seats, mobile ministries | A plug-and-play LED display screen at P2.0–P2.5 | $2,500–$10,000 | Screen size, pixel pitch |
| 150–500 seats | A modular wall, P1.8–P3.9 depending on front-row distance | $8,000–$30,000 | Screen size, cabinet type, installation |
| Broadcast-focused or high-end sanctuaries | Finer pitch or COB, higher refresh rate setting | $40,000–$100,000+ | Fine pitch, camera requirements, refresh rate |
Seat count is only a starting point. A small chapel with a fine-pitch wall can cost more than a mid-size room at P3.9, because pixel pitch, screen size, cabinet type and installation move the price more than the number of seats do. Treat these as reference ranges, not quotes, and when two quotes look alike, check what is inside them: the control system, the mounting structure and the spare modules are where they usually differ.
Four things set the size: the distance to the back row, the width of the stage wall, the aspect ratio of your content, and how the camera frames the stage.
Start from the content. Most slides and video are 16:9, so a wall built to that ratio avoids black bars. Then check the farthest seat, because text has to stay readable from there, and the stage wall, because the screen should not crowd the pulpit, choir or side doors. If the service is streamed, look at the camera shot too, since a wall that is too large can dominate the frame. Send us photos and measurements and we will propose a size.
Start with a tape measure: front row to screen. P2.5–P3.9 is a common starting range for main sanctuary walls. Go to P1.8 or finer for small chapels, close seating and broadcast stages, where people or cameras are near enough to see the pixel structure.
No single formula fits every room, because content, screen size and camera position all change the answer. Our pixel pitch guide has the distance chart and the reasoning behind it. For the finer pitches, see our Indoor Small Pitch LED Screen.
Most indoor sanctuary screens run somewhere between 600 and 1,200 nits. That holds up under stage lighting and stays comfortable through a full service. If daylight falls straight onto the wall, aim for the upper end.
Also make sure the brightness can be turned down. A setting that works for a bright morning service is too much at an evening one, and it is worth asking for at the quote stage.
In the room, refresh rate usually matters little. On camera it matters a lot, though it is not the only factor: refresh rate, PWM behavior, scan ratio and the camera's shutter speed and frame rate together decide whether a livestream shows flicker, rolling bands or scan
lines.
Our walls can be set anywhere from 3840Hz to 7680Hz. Run a test shot with your actual camera, shutter settings and slides before the first service, not after. If lines appear, a higher refresh rate is one of the first things to try, along with the camera settings.
Church walls are usually mounted flat against a wall or built into a stage set, so there is rarely room behind them. That makes front-service modules the practical choice. Magnetic modules come off from the front with a suction tool, so a trained volunteer can swap a single module without taking the wall apart. We compare the two approaches in Front Service vs. Rear Service.
For a quiet sanctuary, ask whether a low-noise or fanless cabinet is available for the screen size and brightness you need, and ask to hear one running in a quiet room before you order. Fan hum is easy to miss on a spec sheet and hard to ignore during communion.
If the wall will sit close to the stage, COB packaging has an encapsulated surface that resists knocks better than exposed lamp beads. We go through the trade-offs in SMD vs COB, and the range is on our COB small pitch LED display series page.
Freight, duties and customs paperwork can change the final project cost, so compare quotes on a delivered basis. Our landed cost calculator and tariffs and HS codes guide walk through the numbers for US and EU imports.
Measure the distance from the front row to the screen.
Measure the stage wall: width, height and what is behind it.
Check the power available near the stage.
Decide whether the service is streamed, and with what camera.
Send us a photo of your stage wall, the room's width and depth, your seat count and the viewing distance, and we will recommend a screen size, pixel pitch and layout for your space. You can request a free church LED wall design or contact us directly.
