Views: 0 Author: Site Editor Publish Time: 2026-07-14 Origin: Site
If you are managing a smart city grid, a traffic control hub, or a critical emergency response center, you already know the golden rule of these environments: unexpected downtime is simply not an option.
For years, LCD video walls and traditional SMT (Surface Mounted Technology) displays were common choices for command and control applications. However, as operational requirements continue to increase, more global projects are moving away from legacy systems. Instead, they are prioritizing a fine pitch LED display for control room setups utilizing COB (Chip-on-Board) technology.
Here is a deep look into why COB technology has become the preferred standard for high-stakes visualization networks.
Why this sudden transition? Because modern mission-critical environments have three non-negotiable requirements: reliable 24/7 continuous operation, stable performance with minimal on-site maintenance, and advanced optical comfort for operators working extended shifts.
In a traffic management center or high-security surveillance room, a single failed pixel is more than an aesthetic defect—it can obscure critical real-time information, corrupt emergency monitoring data, or mask alphanumeric indicators on an industrial control map.
With traditional SMD (Surface Mounted Device) LED screens, individual packaged diodes are soldered directly onto the PCB surface. Because these packages are exposed, they are highly vulnerable to physical impacts during shipping, installation, or daily cleaning. This exposure often leads to progressive pixel degradation over time.

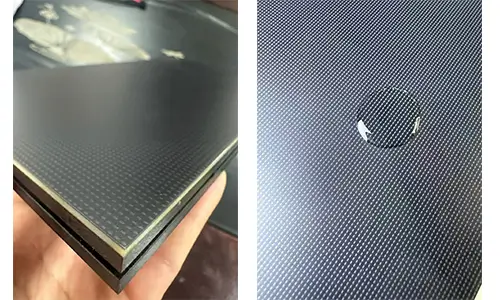

COB technology completely reengineers this vulnerability at the manufacturing level. By eliminating individual packaging, raw LED chips are mounted directly onto the PCB and fully encapsulated within a continuous, protective optical resin layer. This integrated solid-surface architecture naturally shields the display from dust, moisture, and static, while providing the front impact resistance needed to survive routine maintenance without pixel damage. For a facility operating 365 days a year, this structural durability dramatically lowers your long-term maintenance costs and helps maximize system uptime and reduce unexpected maintenance interruptions.
Control room operators pull intense shifts, often spending 8 to 12 hours straight monitoring high-density visual feeds, complex GIS maps, and live operational dashboards. Over long periods, visual fatigue becomes a severe operational liability, directly slowing down human reaction times.
Standard SMD displays act as multiple high-intensity point light sources. When viewed at close distances, this creates a harsh "screen door effect" and strong light contrast between pixels, which accelerates pupil fatigue.
Because COB chips are sealed under a uniform encapsulation layer, the entire screen transitions from thousands of harsh points into a soft, diffused surface light source. This significantly minimizes visible pixel grain and uneven light perception, even when operators sit just a few feet away from a large-scale COB LED video wall. Furthermore, by optimizing chip-level wavelength selection during production, manufacturers can optimize LED wavelength selection and calibration processes to reduce blue light impact while maintaining accurate color reproduction.keeping operators focused and sharp throughout their shifts.
Unlike commercial advertising screens, a command center display mainly handles industrial monitoring interfaces, night-vision surveillance feeds, dense data charts, and technical diagrams with light-gray lines on dark backgrounds. These critical applications require exceptional contrast performance so operators can spot subtle visual anomalies in a split second.
Traditional SMD screens struggle here because the exposed plastic casings of the surface-mount diodes naturally reflect ambient overhead office lighting, turning deep blacks into a murky gray.
COB displays significantly reduce this issue.The smooth, encapsulated surface allows for the application of advanced, ultra-matte optical black coatings that absorb ambient light instead of bouncing it back. Depending on pixel pitch and optical coating technology, some COB displays can achieve contrast ratios of up to 10,000:1.Small fonts remain crisp, dark gray outlines stay sharp, and low-light surveillance video displays flawless shadow details under any office lighting conditions.
Because COB is currently the trending technology in the global LED display market, many buyers make procurement decisions based purely on the lowest upfront quote or basic spec sheets. However, if you want to protect your infrastructure investment, beware of these two hidden procurement traps:
A low-cost COB display may look flawless when showing bright, colorful marketing videos. But the second you switch to a solid gray, dark blue, or dark green background—which control room maps use daily—you might notice a patchy, cloudy appearance across the screen. This is known as the "Mura effect."
Because COB involves encapsulating massive arrays of chips under a single resin layer, any minor variance in chip sorting or resin thickness shifts the color output. Budget-friendly factories skip the expensive, pixel-by-pixel color calibration required to fix this. Always ask your supplier for verified surface uniformity specifications and calibration reports under solid gray test screens.
Not all COB displays share the same internal architecture. Lower-cost products often utilize Wire-Bonded COB, where microscopic gold wires connect the LED chip to the PCB. Under the thermal stress of continuous 24/7 operation, these fragile wires expand, contract, and eventually break.
For mission-critical applications, you should strictly source Flip-Chip COB. In Flip-Chip technology, the wire-free flip-chip structure connects the LED chip directly to the PCB.This layout drastically increases the thermal dissipation area, improving thermal dissipation performance and reducing operating stress on LED components.
It runs significantly cooler, consumes less power, eliminates wire-breakage risks, and ensures the display actually supports long-term stable operation throughout its service life.
5. Why Control Rooms Are Moving Toward COB Micro-Pitch LED Displays: Our COB Micro-Pitch LED Display Series
A control room video wall is a long-term infrastructure investment designed around a 5-to-10-year operational lifecycle. Experienced project managers know that choosing the lowest upfront equipment cost often leads to frequent downtime, expensive repairs, and a higher Total Cost of Ownership (TCO).
As an experienced command center display screen manufacturer, we engineered our COB Micro-Pitch LED Display Series specifically to solve these high-stakes operational pain points. Leveraging full flip-chip COB encapsulation, we have brought pixel pitches down past P1.0mm to ultra-fine P0.9mm layouts for pristine close-distance viewing.
Zero-Bezel Seamless Layout: Eliminates grid boundaries completely, allowing complex data grids and maps to scale smoothly across the entire video wall without distortion.
Advanced Thermal Efficiency: The flip-chip wireless architecture keeps the panel cool to the touch, drastically lowering energy consumption and extending component longevity.
Rugged Front Protection: Peace of mind knowing the screen is fully sealed against moisture, dust, static, and accidental physical impacts during routine room cleaning.
If you are planning a command center upgrade where stability and uptime are your top priorities, COB micro-pitch technology is the clear path forward.
For close viewing distances, P0.9, P1.2, and P1.5 fine pitch LED displays are commonly considered depending on room size and viewing distance.
COB LED provides a seamless large-format display without bezel gaps, higher scalability, and better suitability for 24/7 operation.
Yes. COB micro-pitch LED displays are widely used for surveillance centers, traffic control rooms, and other mission-critical environments where image clarity and reliability are important.
Need a professional technical proposal for your upcoming project? Contact our engineering team today. We provide complimentary DWG CAD layout drawings, power consumption calculations, and customized pixel-pitch recommendations based on your specific viewing distances and room dimensions.
