Ask five people in this industry to define "module" and you'll get five slightly different answers depending on which side of the business they sit on. Sales will talk about it in terms of price per piece. Engineers will talk about pixel pitch and driver ICs. Installers just want to know how fast they can pull one out and swap it in.

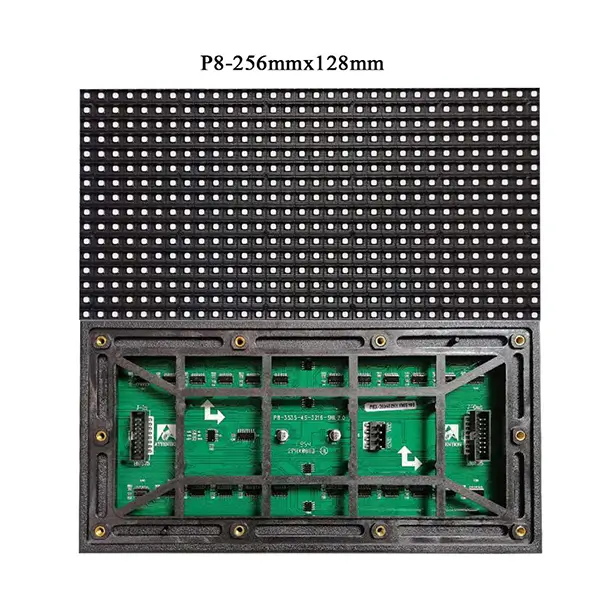

All three are talking about the same thing: the smallest replaceable building block of an LED screen — a small circuit board loaded with LED chips, a driver IC, and the wiring that makes that section of the display light up correctly.
Get the module wrong, and everything downstream of it — brightness, color consistency, how long the screen lasts before it needs servicing — gets harder to fix later. This guide covers what a module actually is, where it sits inside the full display system, and how the two most common packaging types — DIP and SMD — differ.
A lot of early buying conversations go sideways because "module" and "cabinet" get used interchangeably when they shouldn't be. They're not the same unit, and they're not priced the same way.
LED Chip → Module → Cabinet → Full Display
LED Chip — the component that actually produces light and color.
Module — a PCB populated with chips and a driver IC. This is the part a technician swaps when something fails.
Cabinet — the structural frame that holds a group of modules, plus power and signal wiring, and gives you something to actually mount on a truss or a wall.
Full Display — cabinets connected together at whatever scale the project needs.
When a supplier quotes you a "module price," ask what that number actually covers. It's a different figure — and a different unit — from a cabinet price or a per-square-meter price for the finished screen. Mixing these up during budgeting is one of the more common (and avoidable) mistakes we see from first-time buyers.
Pixel pitch, color uniformity, viewing angle, brightness — these are decided mostly at the module level, not the cabinet level. The cabinet is largely mechanical: it holds things together and gets the screen up in the air. The module is where the display's actual visual performance lives.
It's also the component that gets touched the most over the life of the screen. When a section goes dark, nobody's pulling the whole cabinet apart — a tech identifies the bad module and replaces it. How accessible that module is, and how it's packaged, has a real effect on how much downtime and labor a maintenance callout costs down the line.
Packaging is how the LED chips get mounted and encapsulated on the module's PCB. It's one of the more consequential decisions in an LED display, because it drives cost, pixel density, durability, and where a module realistically belongs — indoors, outdoors, or somewhere in between.
If you already know your project is going outdoors and you're trying to decide between the two, our [DIP Vs. SMD LED Modules: How To Choose The Right LED Module for Outdoor Signage] guide goes much deeper into that specific decision. What follows here is just enough to understand what each technology is before you get into that level of detail.

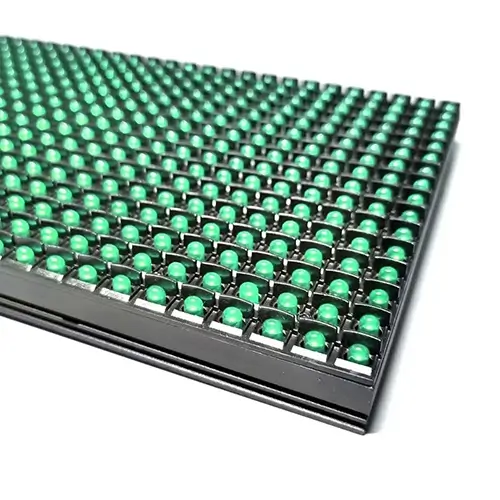

Dual In-line Package is the older of the two technologies, and it's still around because it works. Each chip sits in its own individual housing, with leads inserted straight into the PCB — brighter output, lower cost, and durable enough to take a beating outdoors.
Browse our [Single Color DIP LED Module] lineup

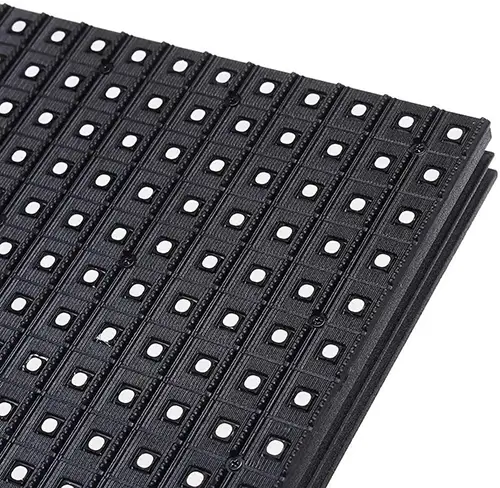

Surface Mounted Device packaging puts the LED chip straight onto the PCB surface. Smaller footprint, finer pixel pitch, wider viewing angles — which is why it's become the default across most of the industry, indoors and outdoors alike.
Browse our [SMD Single Color LED Module] lineup
Packaging | Pixel Pitch | Where It Belongs |
|---|---|---|
DIP | Larger | Outdoor, long viewing distance, cost-sensitive |
SMD | Fine to standard | General-purpose, indoor or outdoor |
Treat this as a starting point, not a rulebook — plenty of real projects sit outside these general lanes. For the full breakdown of when each one actually makes sense for an outdoor project, that's exactly what our [DIP Vs. SMD LED Modules for Outdoor Signage] guide covers.
A few specifications come up on nearly every module spec sheet, regardless of packaging type:
Module size — physical dimensions in millimeters (320×160mm, 250×250mm, etc.)
Pixel pitch — center-to-center distance between pixels, which drives minimum viewing distance
IP rating — dust and water resistance, mainly relevant for anything going outdoors
Refresh rate — how fast the module updates its image, which matters a lot more once cameras get involved
None of these should be evaluated off a single line on a spec sheet in isolation. Each one deserves its own conversation depending on the actual project.
This is the starting point. If you already know roughly what you need, these go further:
Weighing DIP against SMD for an outdoor job? See: [DIP Vs. SMD LED Modules: How To Choose The Right LED Module for Outdoor Signage]
Trying to figure out what's actually driving the quote you got? See: [LED Display Module Pricing Guide: What Actually Affects Cost Per Module]
There's no universally "correct" choice between DIP and SMD — only the right fit for your viewing distance, environment, budget, and how much visual detail your content actually demands. Knowing the basics above puts you in a much stronger position walking into that conversation with a supplier, instead of just picking whichever spec sheet has the smallest number on it.
