In mission-critical environments such as traffic control centers, security monitoring rooms, and emergency operation centers, the video wall plays an important role in daily monitoring and decision-making. For years, Liquid Crystal Display (LCD) splicing walls were the standard choice due to their initial cost advantage.
In recent years, many system integrators have started evaluating fine pitch LED solutions as LCD video walls reach their limitations in large-format applications.
Command centers worldwide are actively decommissioning their aging LCD arrays and replacing them with premium indoor small pitch led screen systems.
As a direct B2B manufacturer rooted in the LED display industry, we frequently see clients making this switch. This article explains the key engineering factors behind this transition, including image quality, maintenance, reliability, and total ownership cost, hidden operational traps of LCDs, and why a fine pitch LED display built on precision structural standards has become an operational necessity.
While modern LCD manufacturers showcase "extreme narrow bezels" of 0.88mm or 0.44mm, any physical black line cutting through a data canvas is an operational hazard. In a 24/7 control room, these hairline gaps cause critical blind spots in CCTV feeds and disconnect lines on GIS power grid maps.
However, simply switching to LED doesn't automatically solve the problem. Many low-end LED suppliers use cheap sheet-metal or poorly tensioned cabinets, resulting in visible "black lines" (gaps) or "white lines" (pixel overlapping) when viewed from an angle.

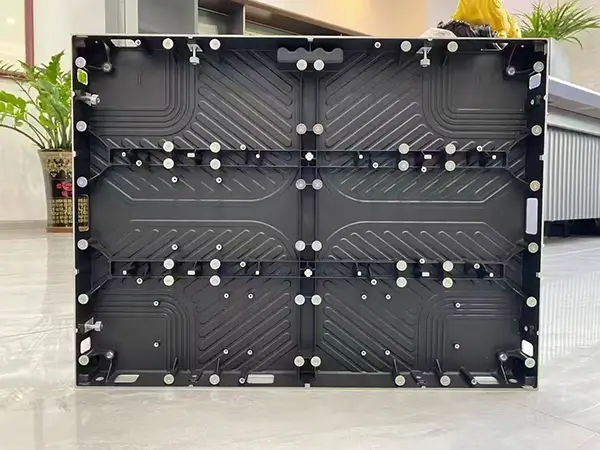

Engineering Considerations for Cabinet Precision: Our indoor fine pitch LED screen series utilizes high-tensile, die-cast aluminum cabinets processed via high-precision CNC machinery. We lock our physical flatness tolerance to under 0.1mm. This industrial-grade mechanical alignment helps achieve a seamless LED video wall with consistent cabinet alignment. with perfect brightness uniformity, even when control room supervisors view the screen from extreme lateral console positions.
Control room operators typically work intense, long-hour shifts in controlled, low-ambient lighting environments to maximize focus. To prevent eye strain, the video wall's brightness must be dialed down, usually between 100-300nits.
This creates a severe performance bottleneck for traditional displays:
The LCD Flaw: When you turn down the backlight of an LCD screen, its contrast ratio plummets, colors become washed out, and dark details turn into a muddy gray fog.
The Low-End LED Flaw: Cheap LED screens lose grayscale when brightness drops. Even worse, at low voltages, individual red or green pixel diodes can experience current instability, causing distracting "pixel flickers" across the command wall.
Our advanced fine pixel pitch LED video walls utilize premium constant-current driver ICs coupled with proprietary low-brightness, high-grayscale calibration algorithms. Even when operating at an ultra-low 150 nits, the screen preserves its full 14–16 bit grayscale depth without a single pixel flickering. Operators can clearly distinguish dark clothing in a night-vision security feed while keeping their eyes comfortable over a 12-hour shift.
The vast majority of control room inputs—CCTV camera matrixes, workstation desktops, and operational dashboards—output in a native 16:9 aspect ratio (Full HD, 4K, or 8K).
Older generation LED displays used square 500x500 mm or non-standard cabinet shapes, forcing system integrators to use expensive external video processors to stretch, crop, or distort the source image to avoid massive black borders.
Our modern small pitch LED video walls eliminate this hardware middleman by employing a standard 600 x337.2mm 16:9 cabinet architecture.
1:1 Native Resolution: Building a standard 1080p, 4K, or 8K digital canvas is achieved through a direct, predictable cabinet count (e.g., an 8x8 array for native 4K).
Crisp Text Delivery: By enforcing point-to-point pixel mapping, small font labels on telemetry charts, small numbers on financial dashboards, and vehicle license plates stay razor-sharp with no scaling artifacts.
In urban command centers, real estate is premium. Traditional LCD frames and rear-access LED screens require a 100 cm rear maintenance corridor, swallowing up valuable office square footage.
While many manufacturers now claim "front maintenance," they often force customers into using proprietary, expensive motorized vacuum tools that are slow to deploy and costly to replace if misplaced on-site.
Our indoor small pitch LED screen series redefines serviceability with a highly reliable, frictionless maintenance design:

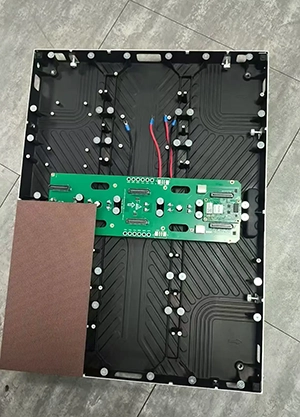

Integrated Magnetic Array: Every single LED module is engineered with a built-in magnetic rear structure. It requires no complex mechanical latches or proprietary electronic key-tools.
10-Second Module Swap: Utilizing a clean, standard magnetic tool or a simple small screwdriver for structural locks, a technician can safely extract and swap a module, receiving card, or power unit straight from the front in under 10 seconds.
Ultra-Thin Profile: The entire system can be flush-mounted directly onto a flat wall, significantly reducing installation depth compared with rear-service systems..
If a single panel in an LCD video wall fails, the screen goes completely black, and fixing it requires tearing down a large chunk of the mounting structure. In a critical command environment, display downtime is unacceptable.
To ensure uninterrupted 24/7/365 mission-critical operation, our small pixel pitch LED displays support complete hardware redundancy:
Dual-Signal Redundancy: Every cabinet can be wired with loop-back dual receiving cards. If a primary data cable is severed, the backup signal takes over instantly within microseconds—zero black screens, zero lag.
Dual-Power Backup: Supports redundant power supplies sharing the load simultaneously. If one power unit fails, the other immediately scales up to full capacity without interrupting the live display feed.
Viewing Distance | Recommended Pixel Pitch |
1-2m | P0.9-P1.25 |
2-3m | P1.25-P1.56 |
3-5m | P1.56-P1.875 |
With years of experience in LED display manufacturing, we have supported system integrators and engineering partners in deploying small pitch LED screen solutions for control rooms, security centers, and commercial visualization projects.
From pixel pitch selection to cabinet structure design, our engineers focus on real project requirements such as viewing distance, 24/7 operation, front maintenance, and long-term reliability. For close-view control rooms, P1.25 and P1.56 are commonly recommended to achieve clear text, detailed maps, and smooth data visualization.
Every project is different, so we work with customers to optimize the display layout, installation method, and maintenance strategy before production.
Before selecting a small pitch LED screen, our engineers mainly consider four factors:
Viewing Distance & Pixel Pitch
Choose the pixel pitch based on the closest viewing distance. P1.25 and P1.56 are commonly used for close-view control rooms and meeting rooms.
Brightness Environment
Select the appropriate brightness level according to the installation environment to ensure clear images and comfortable viewing.
Maintenance Access
For wall-mounted projects, front maintenance design helps reduce installation space and simplifies future servicing.
Operating Hours
For 24/7 applications, stable thermal design, high refresh rate, and reliable components are essential for long-term operation.
For most control room applications, P1.25 and P1.56 small pitch LED screens are the most commonly selected options. The right pixel pitch depends mainly on viewing distance and the level of image detail required.
P1.25: Recommended for close viewing distances (around 1.2–2.5 meters), where operators need to read small text, maps, and monitoring data clearly.
P1.56: Suitable for viewing distances of approximately 2–4 meters, providing a balance between image quality and project cost.
This is why many command centers choose P1.25 or P1.56 indoor small pitch LED screens for high-density visualization.
Control rooms are increasingly adopting small pitch LED screens because LCD video walls still have limitations in large-format visualization.
LCD bezels create visible dividing lines between panels, which can interrupt continuous viewing of GIS maps, CCTV feeds, and data dashboards.
Small pitch LED displays provide a seamless surface, higher scalability, and better long-term visual consistency for 24/7 monitoring environments.
Yes. High-quality small pitch LED screens are designed for continuous operation in mission-critical environments such as command centers and security monitoring rooms.
For 24/7 applications, features such as:
dual signal backup
redundant power systems
high-quality driver ICs
thermal management design
help improve system reliability and minimize unexpected downtime.
No. Many modern fine pitch LED displays use a front-access maintenance design, allowing technicians to replace modules and key components from the front side.
This allows the LED video wall to be installed closer to the wall surface, making it suitable for control rooms, conference rooms, and other environments where space is limited.
The recommended viewing distance depends on pixel pitch.
P1.25: approximately 1.5m+
P1.56: approximately 2m+
P1.875: approximately 2.5m+
For control rooms, the final selection should consider screen size, content type, and operator distance.
While an LCD wall offers a cheaper upfront price, it comes with a high long-term tax: faded panel colors, aging bezels, high fan noise, and unrepairable block failures.Investing in a precision-engineered indoor small pitch LED screen ensures an unfragmented visual workflow, superior operator health, and designed for long-term 24/7 operation with extended LED lifetime.
For control centers, P1.25 and P1.56 LED displays remain the global benchmark for high-density, close-range visual command.
