Views: 0 Author: Site Editor Publish Time: 2026-08-01 Origin: Site
For an event team, an LED display has a very different job from a fixed-installation screen.
It may be loaded into a truck in the morning, installed at a venue in the afternoon, dismantled the next day, and used at another event a few days later. After dozens or even hundreds of installation cycles, the cabinet still needs to align properly, the modules need to remain reliable, and the screen needs to perform consistently in front of an audience.
That is why choosing an indoor rental LED display should not be based on pixel pitch or price alone.
For rental companies, AV suppliers, event production teams, and exhibition contractors, cabinet weight, locking accuracy, corner protection, maintenance access, refresh rate, and viewing distance can have just as much impact on the overall project as image quality.
In this guide, we look at the main factors to consider when selecting an indoor rental LED display for events, including exhibitions, conferences, product launches, concerts, and live productions.
A fixed LED display is normally installed once and expected to remain in the same location for years.
A rental display has a different operating cycle.
The cabinets need to be:
transported between venues
installed and dismantled repeatedly
stacked and packed into flight cases
handled by different installation crews
assembled quickly under tight event schedules
serviced without taking too much time away from the production team
For this reason, a good rental LED screen needs to balance image performance with mechanical reliability.
In our experience, rental customers usually pay close attention to four areas:
Cabinet weight → Locking system → Protection design → Maintenance
These factors become especially important when the same screen system is being used for multiple events every month.
For a rental company, the cabinet is not simply the frame that holds the LED modules. It is the part that technicians handle every time the screen moves from one event to another.
A lightweight rental LED cabinet is easier to carry, stack, load, and rig.
This can make a noticeable difference when a large screen needs to be installed in a short venue access window.
For example, a rental crew may need to move hundreds of cabinets from a warehouse to a truck, unload them at the venue, build the screen, dismantle it after the event, and pack everything back into flight cases.
Reducing cabinet weight can therefore help with:
transportation efficiency
manual handling
installation labor
rigging requirements
storage and logistics
For touring applications, these practical considerations can be more important than simply choosing the smallest pixel pitch available.
A rental LED display should also have a mechanical connection system that allows cabinets to be joined and aligned quickly.
A well-designed fast-lock system helps technicians:
position the cabinets
lock adjacent cabinets together
maintain consistent cabinet alignment
build larger LED walls without spending excessive time correcting gaps
For event production companies, saving a few minutes on each cabinet can add up significantly when building a large screen.
Pixel pitch is one of the first specifications buyers look at, but a smaller pixel pitch is not automatically the best choice.
The more important question is:
How close will the audience and cameras be to the screen?
A screen installed behind a conference speaker may be viewed from only a few meters away, while a concert backdrop may be several meters from the audience.
A practical starting point is:
Recommended minimum viewing distance ≈ Pixel Pitch (mm) × 1 meter
This is only a rule of thumb. Actual selection should also consider content, screen size, audience position, and camera requirements.
These fine-pitch options are suitable when the audience is relatively close to the screen.
Typical applications include:
premium corporate conferences
product launches
exhibitions with close visitor interaction
studio and broadcast environments
luxury brand events
Fine pixel pitch becomes more valuable when presentations contain small text, detailed product images, or close-up camera shots.
For many indoor events, P2.6 and P2.9 rental LED displays provide a practical balance between image detail and project cost.
They are commonly considered for:
corporate conferences
exhibition booths
hotel ballrooms
product presentations
medium-sized indoor stages
For buyers who are unsure between P2.6 and P3.9, viewing distance should be the first consideration rather than simply choosing the finer pitch.
For larger venues where the audience is farther away, P3.9 or P4.8 can be a more economical option.
Typical applications include:
large indoor stages
concerts
entertainment events
large exhibition halls
ballroom backdrops
There is little value in paying for ultra-fine pixel pitch if the audience is far enough away that the additional resolution is difficult to perceive.
Pixel Pitch | Typical Viewing Distance | Common Applications |
|---|---|---|
P1.9–P2.5 | Close viewing | Premium conferences, product launches, studio |
P2.6–P2.9 | Medium distance | Exhibitions, conferences, corporate events |
P3.9–P4.8 | Longer distance | Large stages, concerts, ballrooms |
The best configuration depends heavily on where the screen will be used.
An indoor rental LED display for trade shows needs to attract attention while fitting into a limited booth area.
Common requirements include:
compact screen configurations
fine pixel pitch
close-viewing image quality
fast installation
creative shapes or corner configurations
For an exhibition booth, the screen may be viewed from only two or three meters away. In this situation, pixel pitch and cabinet alignment become particularly important.
Conference screens are often used for:
PowerPoint presentations
speaker backgrounds
company branding
live camera feeds
product presentations
Text readability is usually more important here than extremely large screen size.
For close-viewing conference environments, a finer-pitch indoor rental LED screen can provide better presentation detail.
High refresh rate is also useful when the screen is being recorded by professional cameras.
Product launches usually place greater emphasis on visual quality and stage design.
The LED screen may be used to display:
product videos
animations
brand graphics
live camera feeds
immersive visual effects
In these projects, the LED screen becomes part of the stage design rather than simply functioning as a large monitor.
Rental cabinets that support flat, curved, or corner configurations can give production designers more flexibility.
Concert applications typically involve larger screen sizes and longer audience viewing distances.
The main considerations often include:
cabinet weight
fast installation
high refresh rate
mechanical strength
reliable signal and power connections
efficient transportation
For larger indoor stages, P3.9 and similar pixel pitches can often provide a practical balance between visual performance and project budget.
For outdoor concerts, festivals, and stage-integrated builds specifically, deployment patterns differ enough (stage rigging, weather exposure, multi-day setups) that they deserve separate treatment. See our guide on [Outdoor Rental LED Display for Concerts, Festivals and Sports Events] for how screen placement, structural context, and build timelines vary across these outdoor use cases.
If the LED display will appear directly on camera, refresh rate becomes an important specification.
A high-refresh-rate LED display can help reduce visible scan lines and flicker-related issues during filming.
This is particularly relevant for:
livestreaming
corporate broadcasts
virtual events
esports
studio productions
A specification such as 3840Hz or higher refresh rate is commonly considered for professional camera-facing applications, although the complete display system and camera settings also affect the final result.
One area that is sometimes overlooked when comparing rental LED displays is physical protection.
A fixed LED screen may be installed once and rarely touched.
Rental cabinets are handled repeatedly.
During transportation, installation, dismantling, and stacking, the corners of the cabinet are especially vulnerable.
Protective corner mechanisms help reduce the chance of LED diodes being damaged when cabinets are placed on the floor or stacked.
This is a small mechanical detail, but it can have a significant effect on maintenance costs over many rental cycles.

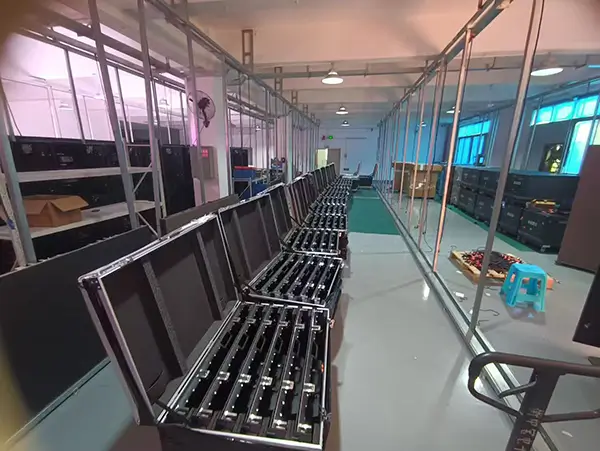

For rental companies, the screen should also be considered together with its transportation system.

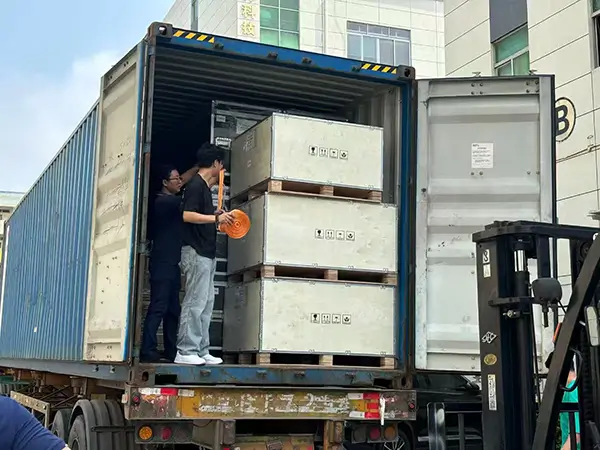

Heavy-duty flight cases help protect cabinets during:
warehouse storage
truck transportation
venue loading
repeated event deployment
The cabinet and flight case should therefore be treated as one part of the rental workflow rather than two completely separate products.
A rental LED screen will eventually need maintenance.
The question is not whether maintenance will be required, but how quickly technicians can complete it when something happens during an event.
For an indoor rental LED display, buyers should check:
module replacement method
spare module availability
power supply accessibility
receiving card access
signal connection design
availability of technical support
Front-access maintenance can be particularly useful when technicians need to replace an individual LED module without dismantling a large section of the screen.
For rental companies, easier maintenance means less time spent troubleshooting between events.
Audience viewing and camera viewing are not always the same.
A display that looks fine to the naked eye may produce visible scan lines or flicker when filmed.
For this reason, professional event teams should pay attention to refresh rate when the LED display will be used for:
live broadcasting
photography
livestreaming
stage filming
corporate video production
A high refresh rate indoor rental LED display, such as a 3840Hz configuration, can provide smoother camera capture when correctly matched with the camera and processing system.
Different display technologies still have their place in event production.
Feature | Indoor Rental LED Display | Projection | LCD Video Wall |
|---|---|---|---|
Large-format scalability | Excellent | Good | Limited by panel size |
Visible bezel | Seamless | None | Visible |
Bright stage environment | Strong | Can be affected | Good |
Creative configurations | Flexible | Limited | Limited |
Repeated event use | Designed for it | Equipment-dependent | Less convenient |
Installation | Modular | Requires alignment | Panel assembly |
Camera applications | High refresh options | Depends on projector | Generally good |
For large temporary displays, the main advantage of an LED rental system is the combination of scalability, brightness, seamless imaging, and repeatable installation.
A buyer may immediately ask for P1.9 because it offers higher resolution.
But if the audience is 8 meters away, the additional resolution may not provide enough practical benefit to justify the extra cost.
Start with viewing distance and event type.
A cheaper cabinet is not necessarily cheaper to operate.
For rental companies, consider the complete lifecycle:
Purchase price + transportation + installation labor + maintenance + replacement parts
A cabinet that saves time during every event can provide more value over multiple rental cycles.
LED modules are relatively delicate components.
Repeated impacts during transportation can lead to damaged LEDs, broken masks, or cabinet alignment problems.
Corner protection and proper flight-case packaging should therefore be part of the purchasing decision.
A conference, exhibition, and concert may require completely different LED configurations.
Before ordering, confirm:
viewing distance
screen dimensions
indoor venue conditions
installation method
camera requirements
event duration
transportation method
The right rental system should fit the event rather than forcing every event to use the same configuration.
Before confirming your project, check the following:
☑ Event type and venue size
☑ Audience viewing distance
☑ Required screen dimensions
☑ Pixel pitch
☑ Cabinet weight
☑ Fast-lock mechanism
☑ Corner protection
☑ Maintenance method
☑ Refresh rate and camera requirements
☑ Flight case and transportation requirements
☑ Spare modules and replacement parts
☑ Technical support
For rental companies, it is also worth considering how often the cabinets will be deployed each year. A screen used for ten events and a screen used for one hundred events should not necessarily be evaluated using the same criteria.
When buying an indoor rental LED display, the product specification is only one part of the project.
An experienced manufacturer should be able to help with:
pixel pitch selection
screen configuration
cabinet quantity calculation
hanging or stacking requirements
power distribution
spare parts planning
installation guidance
maintenance support
This is especially important for rental companies that need a repeatable system rather than a one-time custom screen.
At YLLED Display, our indoor rental LED displays are designed around the practical requirements of repeated event use, including lightweight cabinet construction, fast-lock assembly, protective cabinet details, and high-refresh-rate options for professional event production.
Explore our Indoor Rental LED Display
There is no single pixel pitch or cabinet configuration that is ideal for every event.
For a trade show booth, close viewing distance and fine image detail may be the priority. For a corporate conference, text clarity and camera performance may matter more. For a large stage, cabinet weight, installation speed, and viewing distance can become more important.
For rental companies, the evaluation should go one step further.
Ask not only:
“How good does the screen look?”
but also:
“How easy is it to transport, install, protect, maintain, and reuse?”
That is what determines whether an indoor rental LED display remains a profitable working asset after the first event—not just an impressive screen on day one.
