How to Choose the Right Indoor Flexible LED Display Module Size: 240×120mm vs. 256×128mm vs. 320×160mm

When designing an indoor flexible LED display project, choosing the right module size is often more important than choosing the pixel pitch alone.

A curved LED wall may look simple from the outside, but the module dimension directly affects:

• how smooth the curve appears;

• how difficult the steel structure is to build;

• how many modules are required during installation;

• how easy the display will be to maintain in the future.

For example, a large flexible LED module can reduce installation time on a wide curved wall, but the same module may create visible flat sections when installed on a narrow pillar.

This guide compares three popular indoor flexible LED display module sizes — 240×120mm, 256×128mm, and 320×160mm — and explains which projects each format is best suited for.

1. Why Flexible LED Module Size Matters in Curved LED Display Design

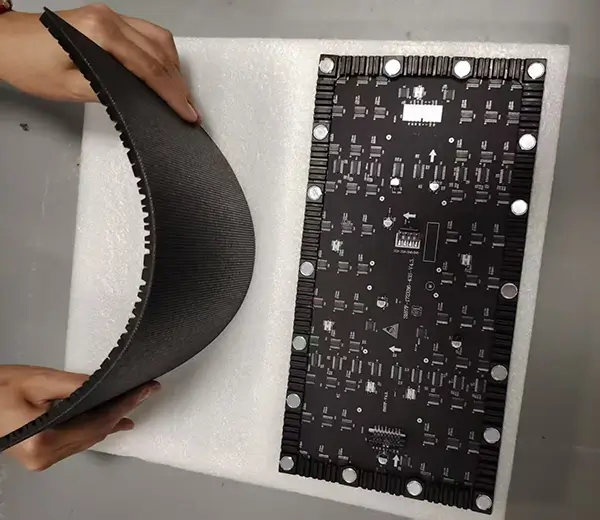

Unlike traditional flat LED cabinets, flexible LED modules are designed to follow non-linear surfaces.

However, flexibility is not only determined by the soft PCB material. The physical module size also affects the final appearance.

Smaller Modules Follow Curves More Naturally

When a curved surface is covered with LED modules, each module acts like a small section of the overall arc.

A wider module creates a larger straight section between two bending points. On tight-radius structures, this can result in:

• visible polygon edges;

• uneven curve transitions;

• inconsistent viewing angles.

Smaller modules provide more adjustment points, allowing the LED surface to follow complicated shapes more naturally.

Larger Modules Improve Installation Efficiency

The opposite is also true.

For large curved walls with gentle arcs, using too many small modules increases:

• magnetic connection points;

• cable connections;

• installation time;

• structural workload.

For large commercial projects, a standardized larger module size is usually more efficient.

2. 240×120mm Flexible LED Module: For Creative and Irregular Structures

The 240×120mm flexible LED module is mainly selected when the display shape is more important than installation speed.

Its compact size gives designers more control when building unusual LED structures, especially where the surface changes direction frequently.

Recommended Applications

• Artistic LED installations

• Museum digital exhibits

• Wave-shaped decorative screens

• Custom architectural LED designs

• Small-radius creative structures

Why Choose 240×120mm?

The smaller footprint allows installers to adjust the LED surface with more flexibility.

It is suitable for projects where designers need to follow:

• organic curves;

• irregular surfaces;

• multi-directional bending areas.

However, because more modules are required per square meter, installation time and structural alignment work are usually higher compared with larger formats.

3. 256×128mm Flexible LED Module: The Balanced Choice for Pillar and Tight Curve Projects

The 256×128mm flexible LED module is a popular choice for curved LED displays that require both smooth appearance and reasonable installation efficiency.

The 2:1 aspect ratio provides a practical balance between curve adaptation and engineering convenience.

Recommended Applications

• 360° LED pillar displays

• Curved lobby video walls

• Corporate reception areas

• Studio background displays

• Cylindrical LED screens

Why Choose 256×128mm?

For narrow columns or curved surfaces, module width becomes critical.

Compared with larger formats, the 256mm width reduces the visible segmentation effect when wrapping around smaller diameters.

It also makes project calculations easier for:

• circular perimeter planning;

• module quantity estimation;

• curved frame design.

For projects where the screen needs to look like a continuous digital surface rather than assembled panels, this size is often a practical solution.

4. 320×160mm Flexible LED Module: Best for Large Commercial Curved LED Walls

The 320×160mm flexible LED module is one of the most widely used formats in commercial LED display projects.

Its biggest advantage is efficiency.

With a larger module area, installers can complete large curved surfaces with fewer components, reducing assembly time and simplifying spare parts management.

Recommended Applications

• Retail curved LED walls

• Brand showroom displays

• Corporate experience centers

• Large indoor curved backgrounds

• Commercial advertising installations

Why Choose 320×160mm?

This size works especially well when:

• the curve radius is relatively large;

• the display area is extensive;

• project installation speed is important.

For example, a large shopping mall feature wall with a smooth arc does not require extremely small modules. A standard 320×160mm format can provide an excellent balance between image quality, cost, and construction efficiency.

5. 240×120mm vs. 256×128mm vs. 320×160mm Comparison

6. How to Select the Right Flexible LED Module Size?

Choose 240×120mm if:

✓ The project includes unusual shapes or artistic structures

✓ The LED display follows multiple direction changes

✓ Visual smoothness is more important than installation speed

Choose 256×128mm if:

✓ You are creating a pillar wrap LED display

✓ The curve radius is relatively small

✓ You need a balance between flexibility and engineering efficiency

Choose 320×160mm if:

✓ The display area is large

✓ The curve is smooth rather than sharp

✓ Installation efficiency and maintenance cost are priorities

7. Common Mistakes When Selecting Flexible LED Modules

Choosing Module Size Only by Price

A cheaper module size may create additional engineering costs if it cannot match the required curve.

The correct selection should consider:

• bending radius;

• viewing distance;

• installation environment;

• future maintenance requirements.

Ignoring the Final Viewing Distance

A curved LED wall viewed from 2 meters away requires different pixel planning compared with a large lobby display viewed from 10 meters away.

Module size and pixel pitch should always be selected together.

Designing the Structure Before Confirming the Module

For flexible LED displays, the module dimension should be confirmed before manufacturing the supporting frame.

Changing module size after steel fabrication can increase project cost and delay installation.

8. Conclusion: Choose the Module Size Based on the Project Shape

There is no universal best flexible LED module size.

The right choice depends on the relationship between:

• curve radius;

• display area;

• viewing distance;

• installation requirements.

240×120mm → Best for creative and irregular LED structures.

Explore our [240×120mm Small-Format Flexible LED Display Series] for custom architectural shapes.

256×128mm → Best for pillar wraps and balanced curved applications.

Check out our [P4 256×128mm Flexible LED Module] engineered for seamless 360° pillar wrapping.

320×160mm → Best for large commercial indoor flexible LED walls.

Learn more about our [320×160mm Indoor Flexible LED Display Series] for commercial retail walls.

Choosing the correct module format at the beginning helps achieve a smoother appearance, easier installation, and better long-term reliability.
