LED Display Survival Guide: Common Issues & Lessons from the Field

If you’ve invested in an LED display, you’re not just buying a screen; you’re buying a high-stakes communication tool. But let’s be honest: these screens live in a world of rain, heat, and unstable power grids. They are workhorses, yes, but they aren’t invincible.

After years of troubleshooting thousands of modules—from tiny storefront signs to massive outdoor billboards—I’ve realized that most screen failures don't happen because the LEDs are "old." They happen because of small, overlooked maintenance gaps. Here is a breakdown of what actually goes wrong and, more importantly, how we fix it in the field.

1. The "Dead Pixel" Myth

Most people see a dark spot and think the LED is burnt out. In reality, it’s often a mechanical failure, not a light failure.

What’s really happening: On an SMD (Surface Mount Technology) module, the solder joints are microscopic. If an installer presses too hard on the surface during setup, it creates a "micro-crack."

The TC5020A Factor: We use high-grade TC5020A driver ICs because they handle current far better than generic chips. If you see a row of dim pixels, it's usually a heat-related IC issue, not the LEDs themselves.

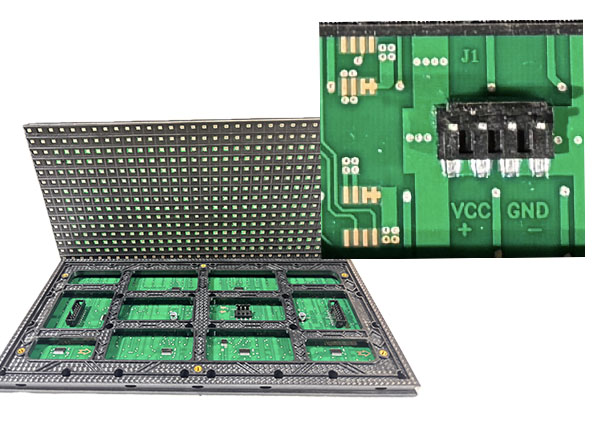

Expert Fix: Don't just bin the module. Often, a professional heat gun set to exactly 300°C can reflow the solder and bring that "dead" pixel back to life in seconds.

2. Regional Blackouts: It’s Usually the Cables

2. Regional Blackouts: It’s Usually the Cables

I can't count how many times I've been called for a "broken screen," only to find a loose ribbon cable.

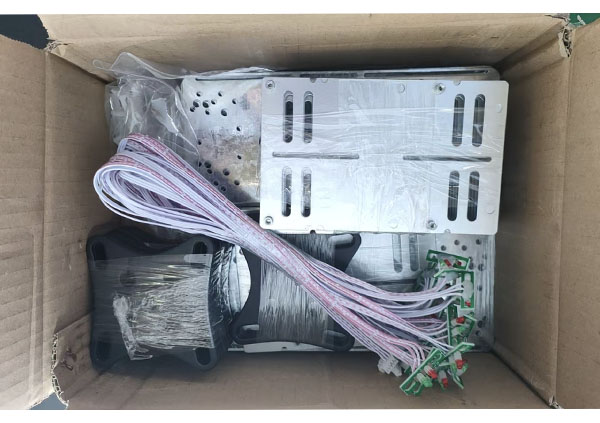

The Diagnostic: Our modules use a modular, plug-and-play design. If a whole section goes dark, swap the gray flat data cable with the one next to it. If the problem moves, it’s a $2 cable problem, not a $200 module problem.

Pro-Tip: Check your VCC/GND terminals. Oxidation from humid air can cause a high-resistance connection, starving that section of the 5V power it needs to stay bright.

3. Flickering & Signal "Ghosting"

Flickering isn't just annoying; it ruins the professional look of your brand.

The Engineering Fix: If the flickering shows up on smartphone cameras but not the naked eye, it’s a Refresh Rate issue. High-end SMT modules should be pushed to 3840Hz in your control software to ensure a flicker-free visual, especially for retail environments.

4. The "Internal Sweat" (Moisture Damage)

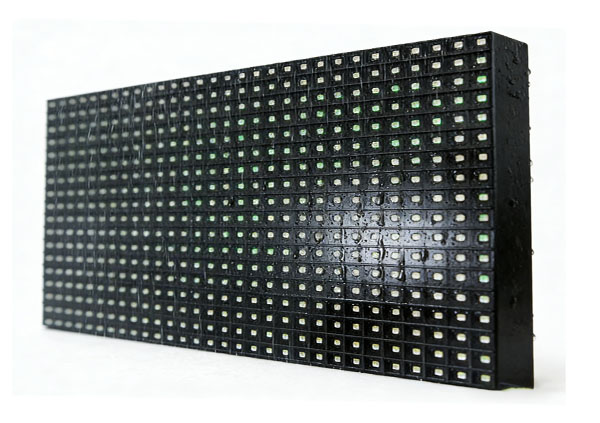

Outdoor LED displays are rated IP65 waterproof, but "waterproof" is a rating, not a permanent shield.

Field Observation: Moisture rarely kills a screen from the front. It enters from the back—usually through degraded gaskets or poor drainage in customized size enclosures.

Prevention: If you notice flickering after a heavy storm, it’s a sign of internal condensation. Turn the screen off immediately and use a dehumidifier. Running a "wet" screen will permanently corrode the PCB traces.

My "Golden Rules" for a 10-Year Lifespan

To get the full 100,000 hours out of your investment,you need a proactive protocol.

Rule #1: The 5-Minute Visual Test

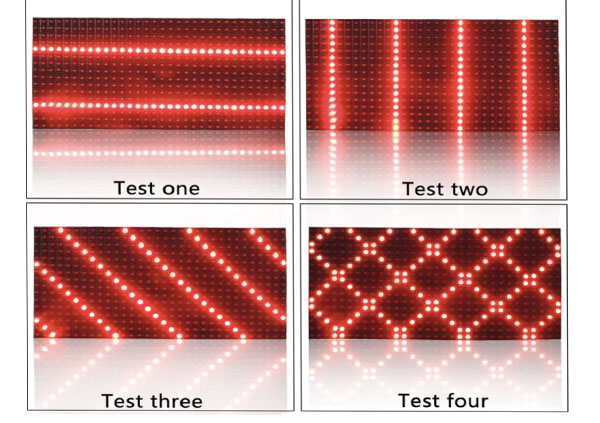

Once a month, run our Four-Pattern Factory Test (Horizontal, Vertical, Diagonal, and Grid).

Why? It exposes "ghosting" and scanning abnormalities that you won't see during a normal video loop. Catching a weak IC early prevents it from shorting out the entire row later.

Rule #2: Airflow is Non-Negotiable

Heat is the enemy of the phosphor inside an LED. If your customized enclosure is airtight, your screen is a ticking time bomb. Ensure at least 10cm of rear clearance and check that your cooling fans are actually spinning, not just humming.

Rule #3: Stable Power Over Everything

A cheap power supply is the most expensive mistake you can make. Use a dedicated circuit with surge protection. A single lightning strike or a voltage surge from a nearby generator can fry your TC5020A chips in a heartbeat.

Final Thoughts

An LED display is like a high-performance car. If you skip the oil changes, it will fail. But if you keep it clean, keep the power stable, and fix small issues like loose cables immediately, it will stay vibrant for a decade.

Planning a project or need a technical layout for a customized size screen? Drop us a message—we’ve seen every failure in the book, and we’re here to help you avoid them.
